Mason Steel Tank, Approximately 2,500 Gallons, Stainless Steel, Vertical.

Mason Steel Tank, Approximately 2,500 Gallons, Stainless Steel, Vertical.

    Mason Steel Tank, Approximately 2,500 Gallons, Stainless Steel, Vertical.

    Product ID: PTA11920

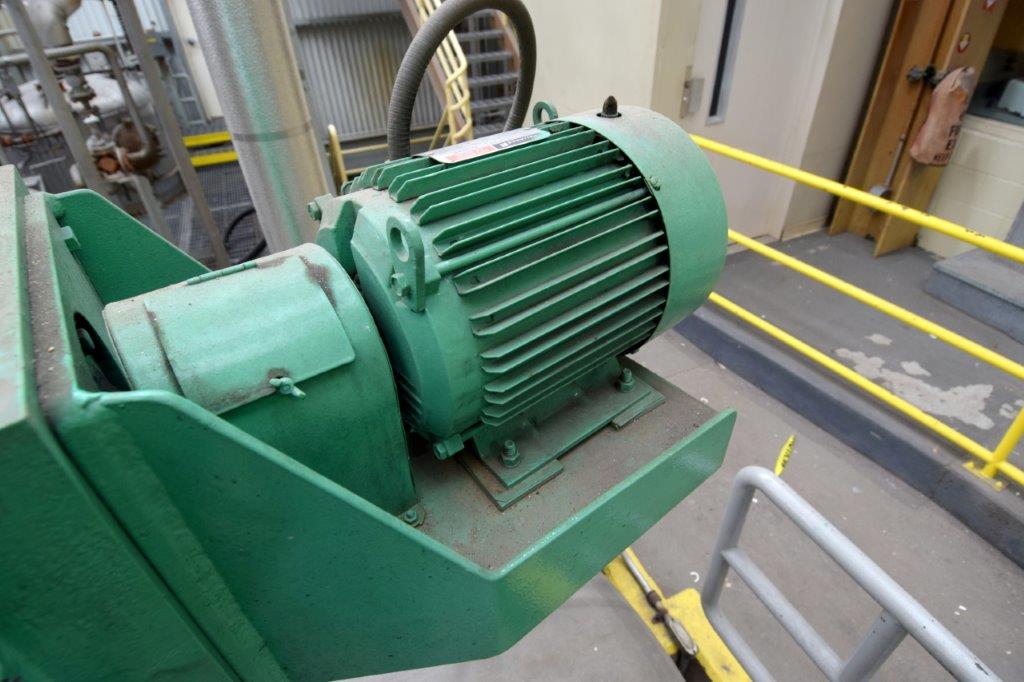

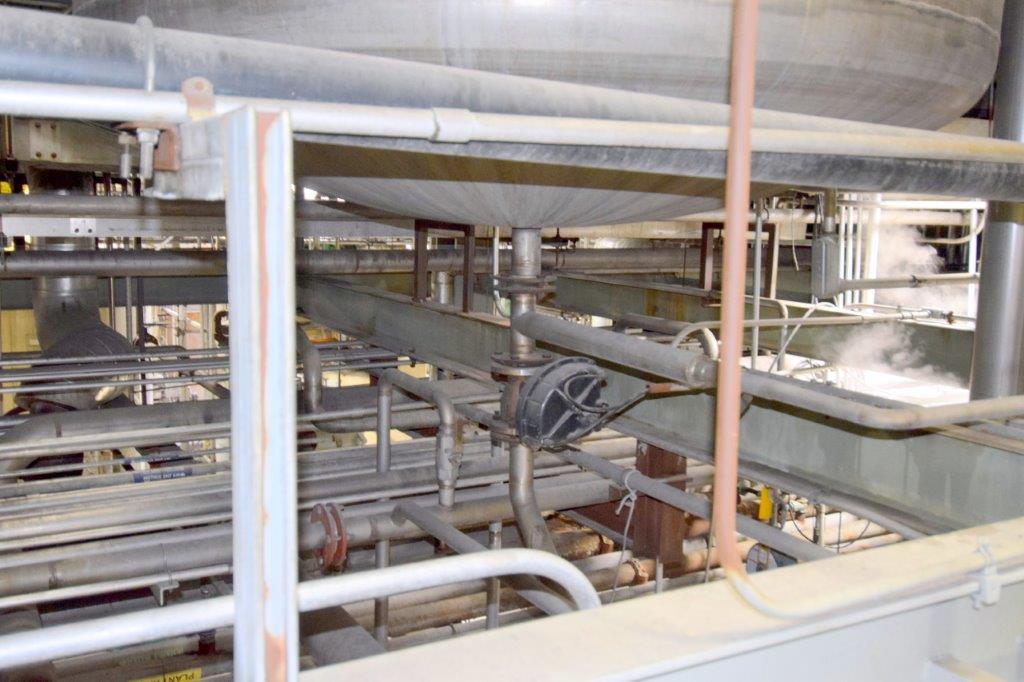

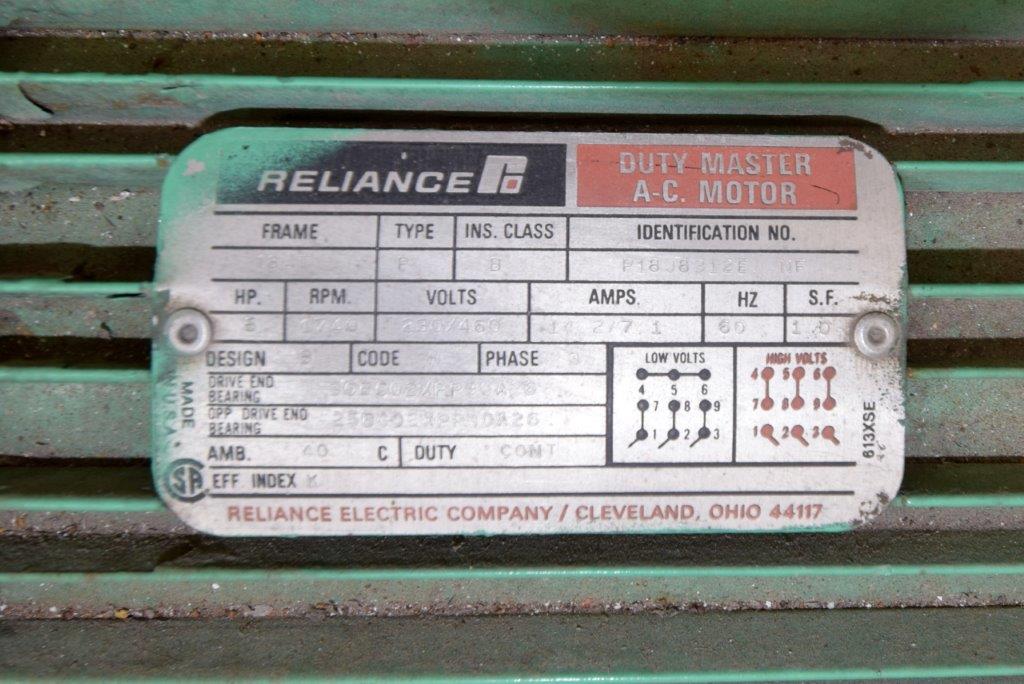

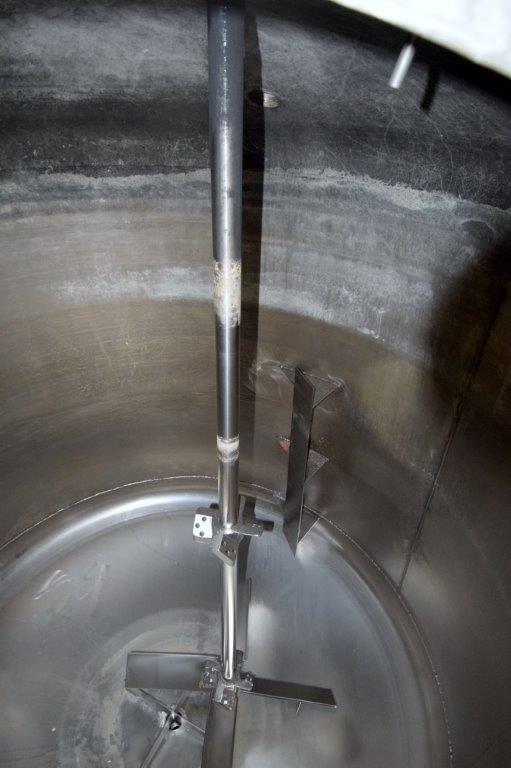

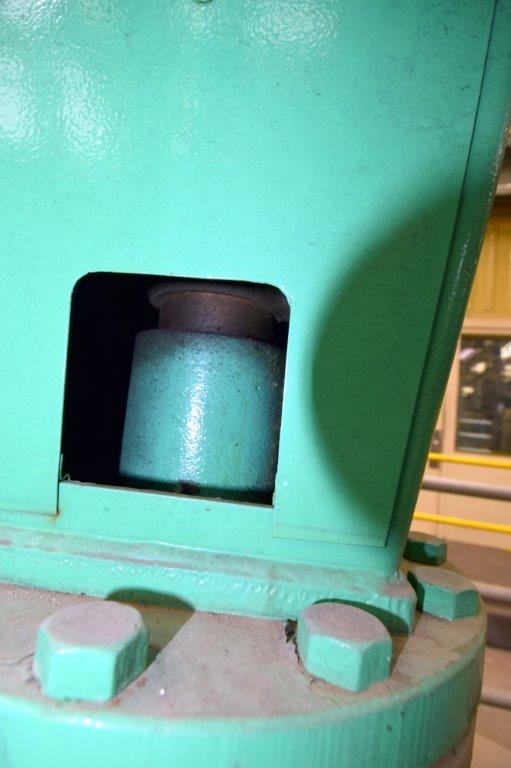

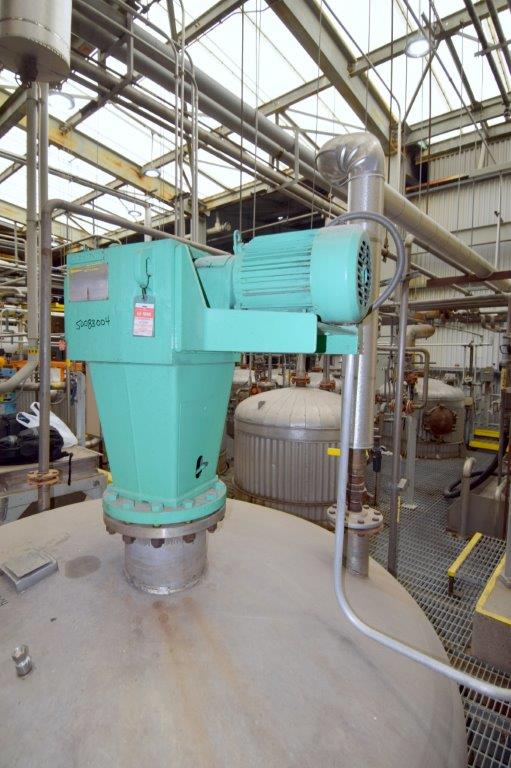

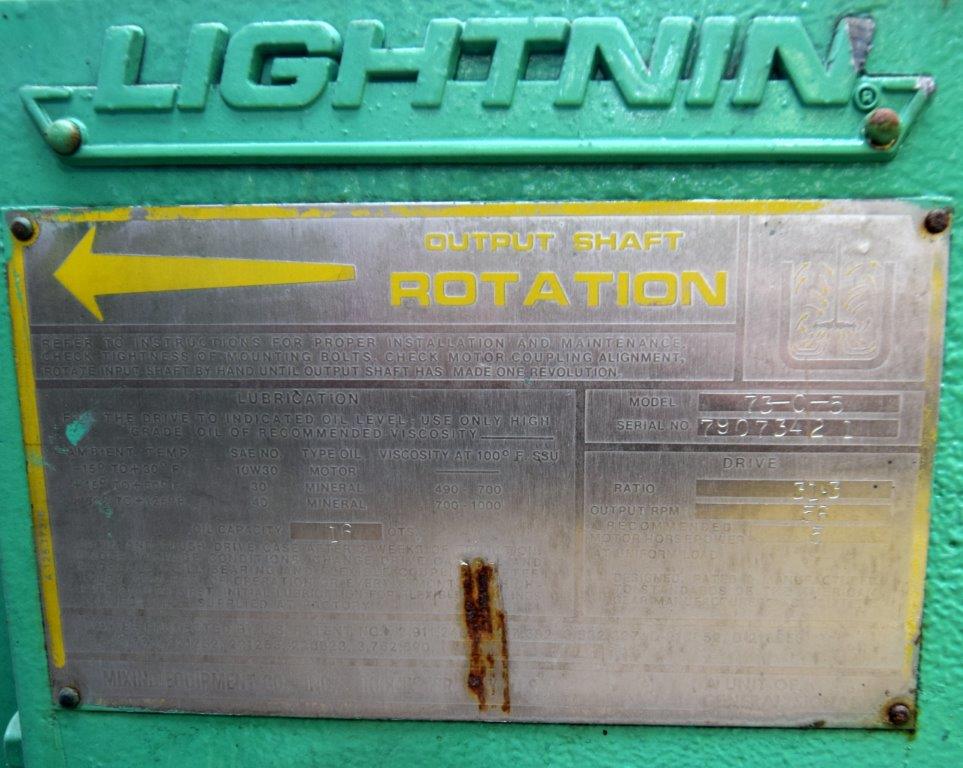

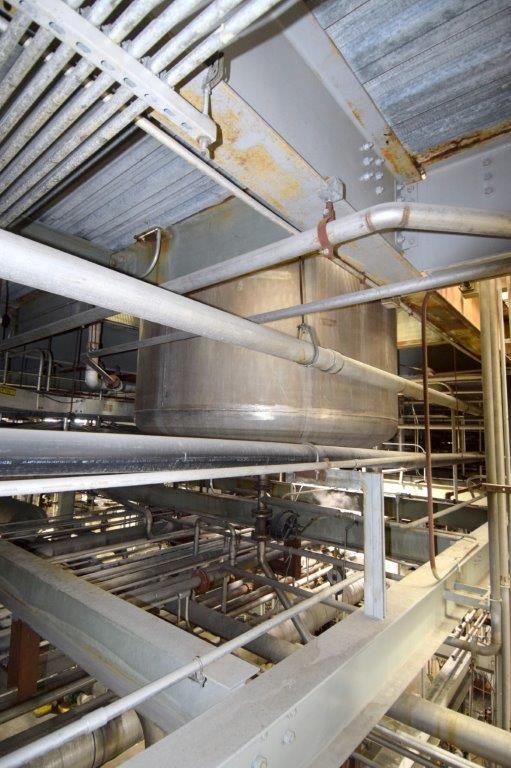

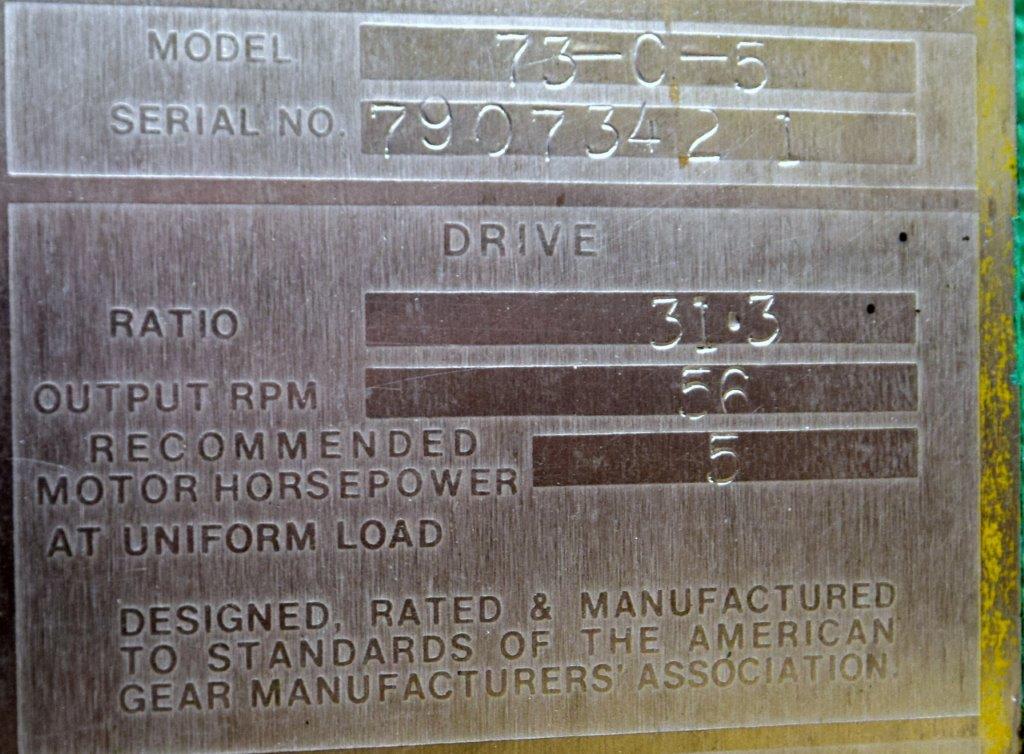

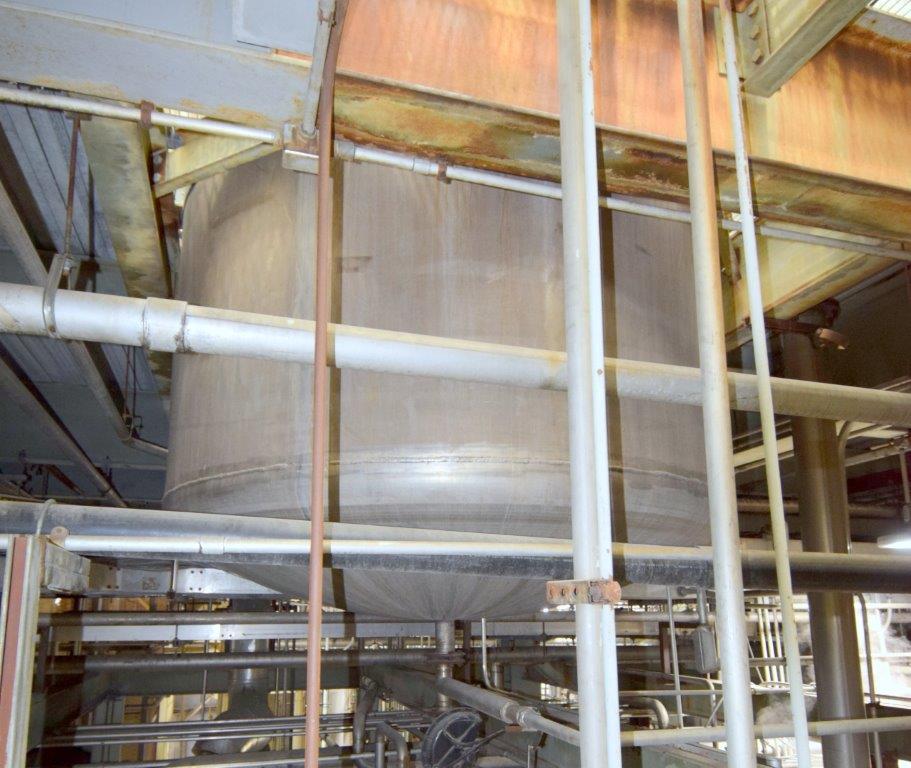

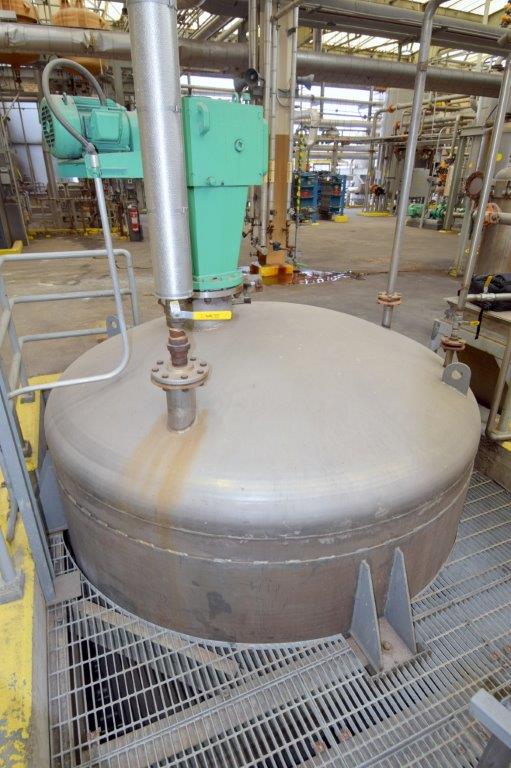

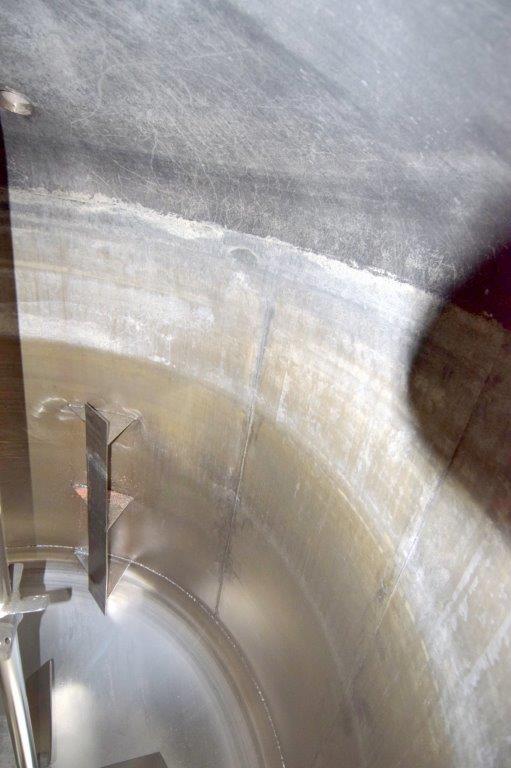

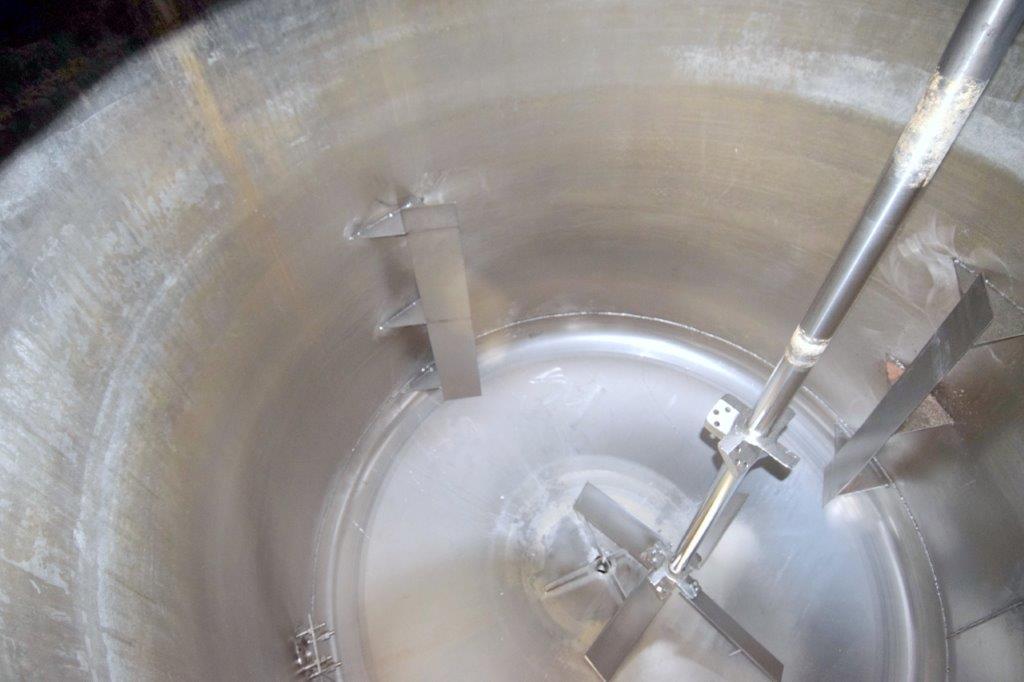

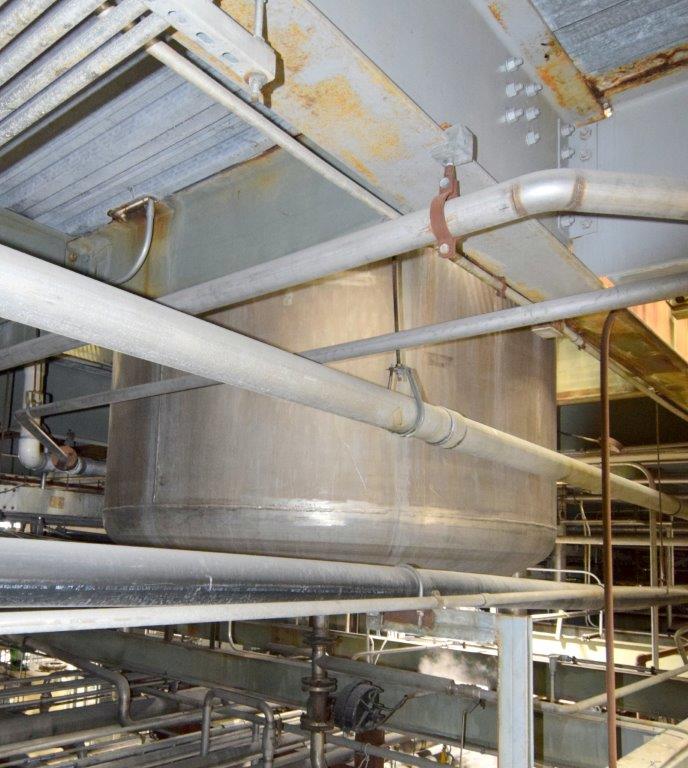

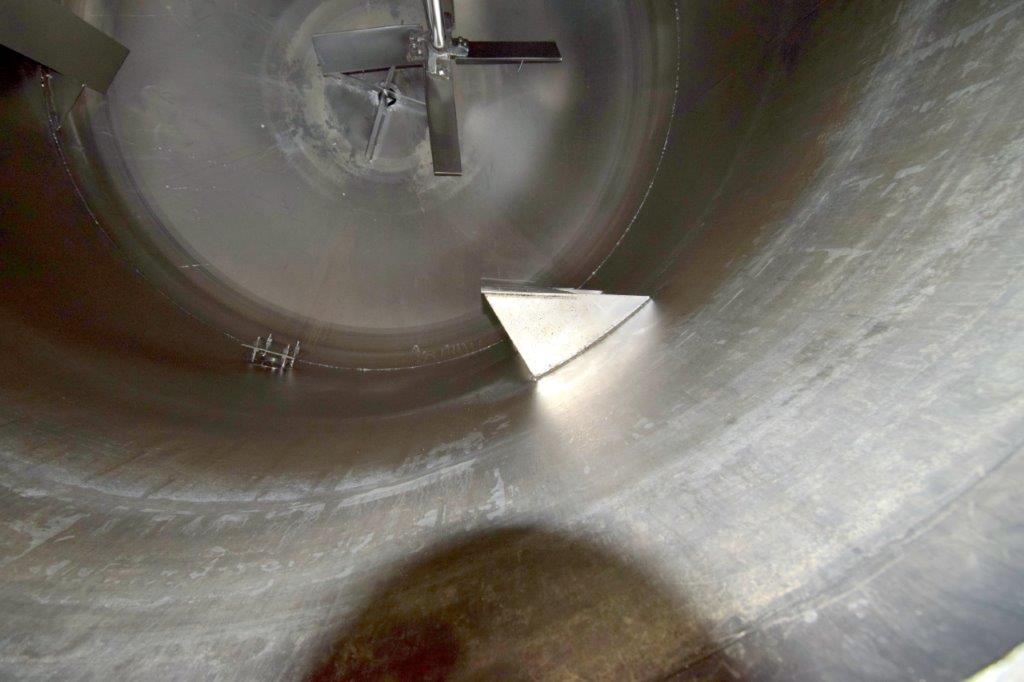

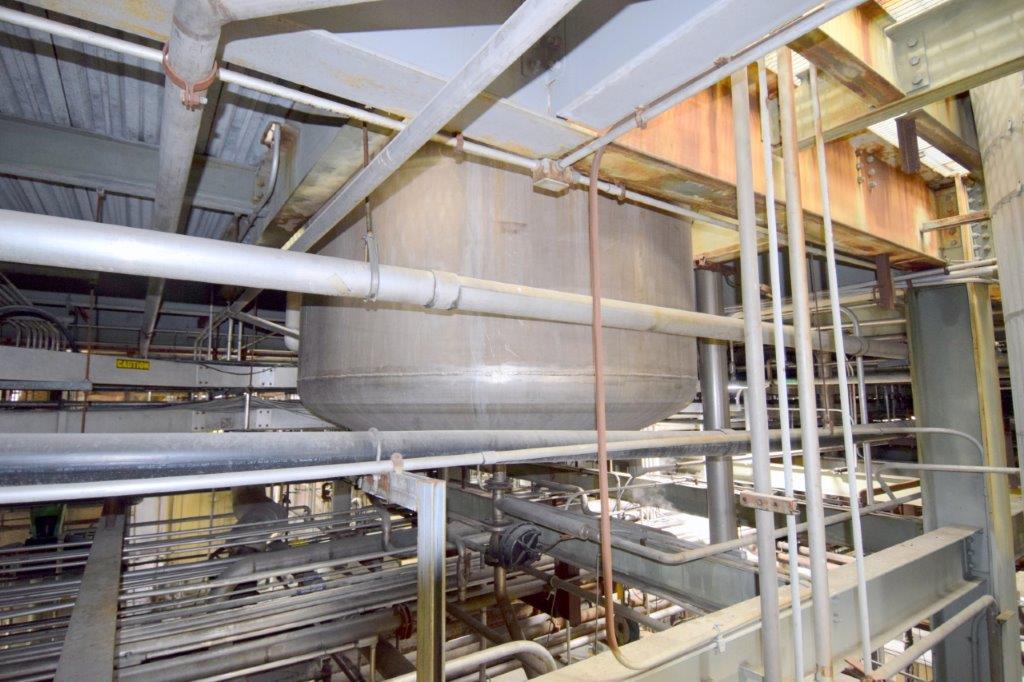

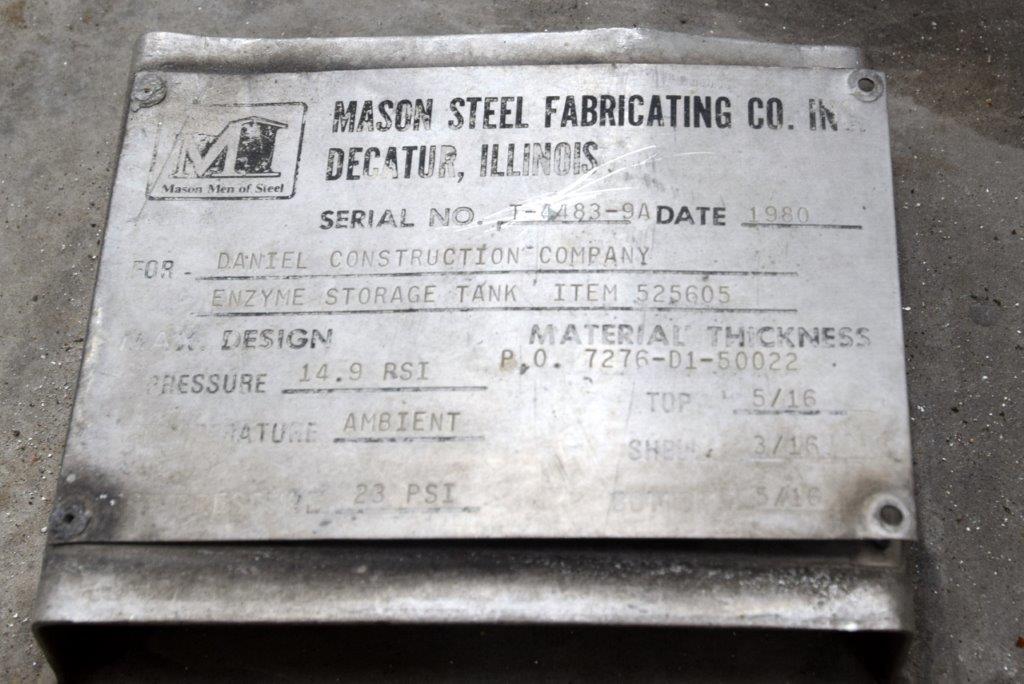

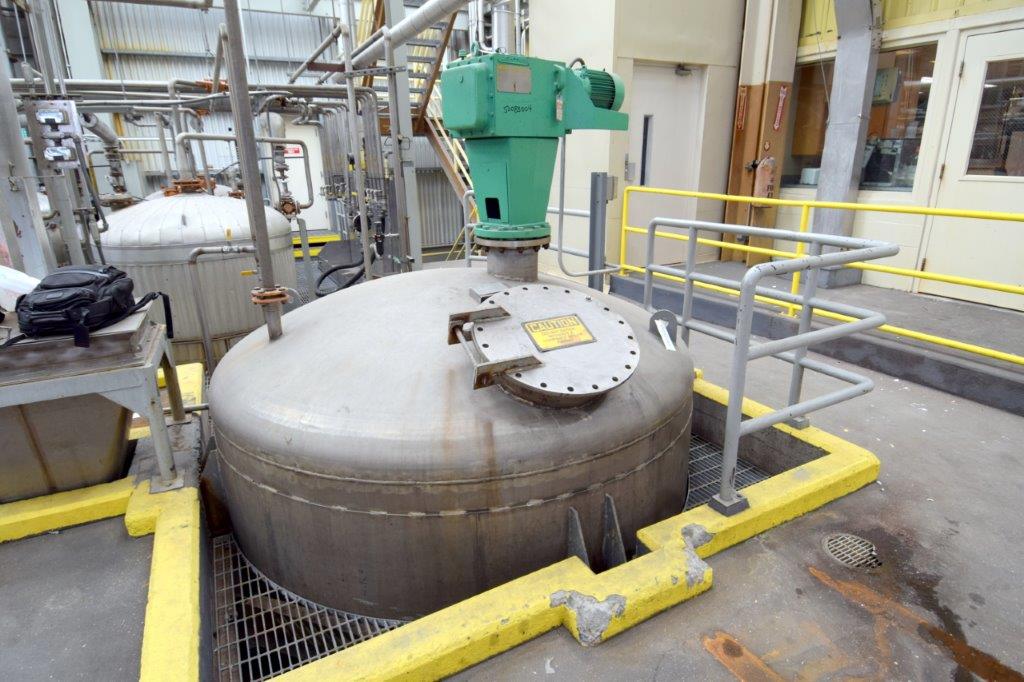

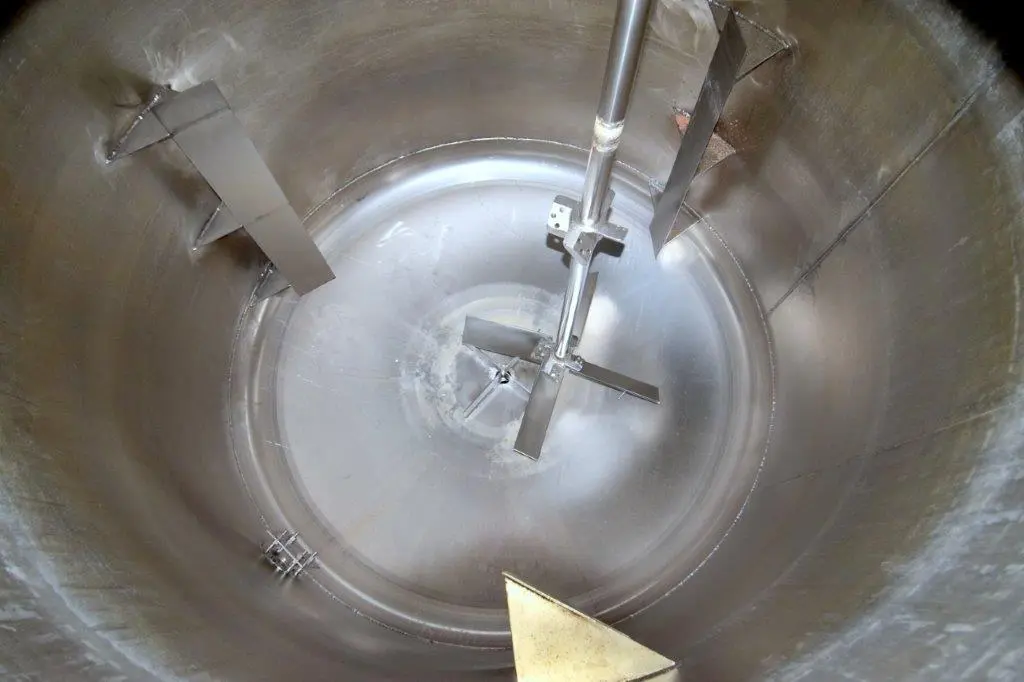

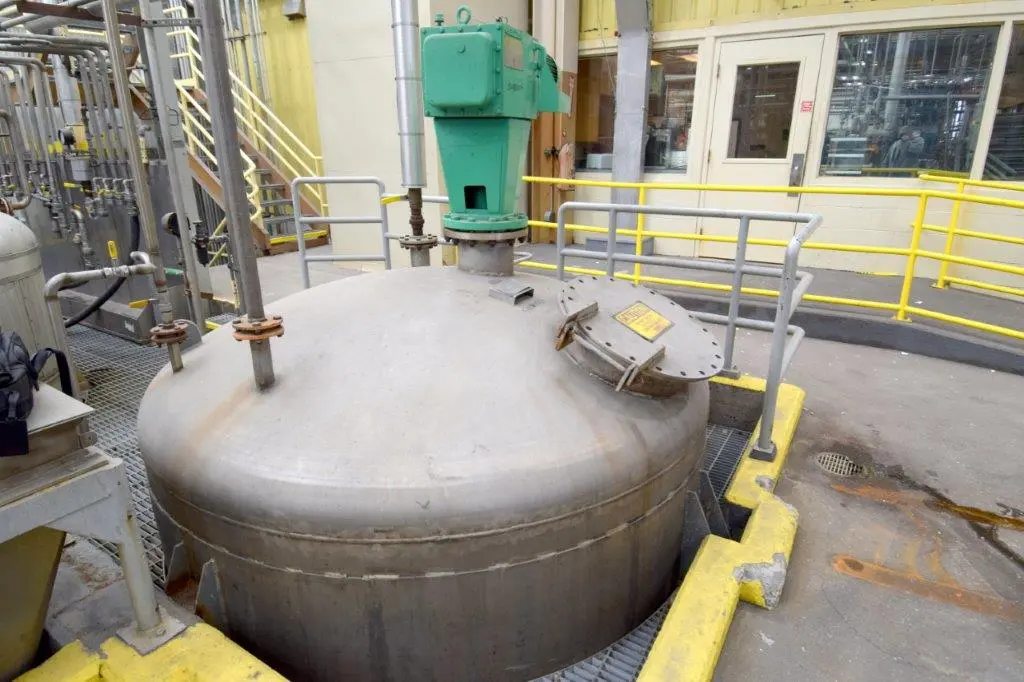

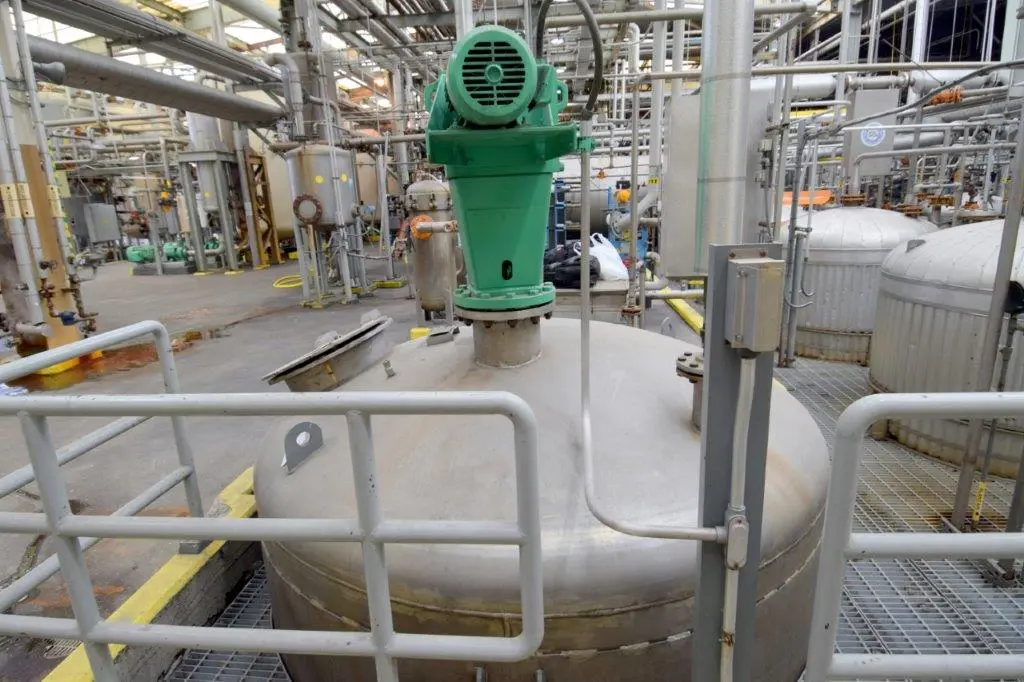

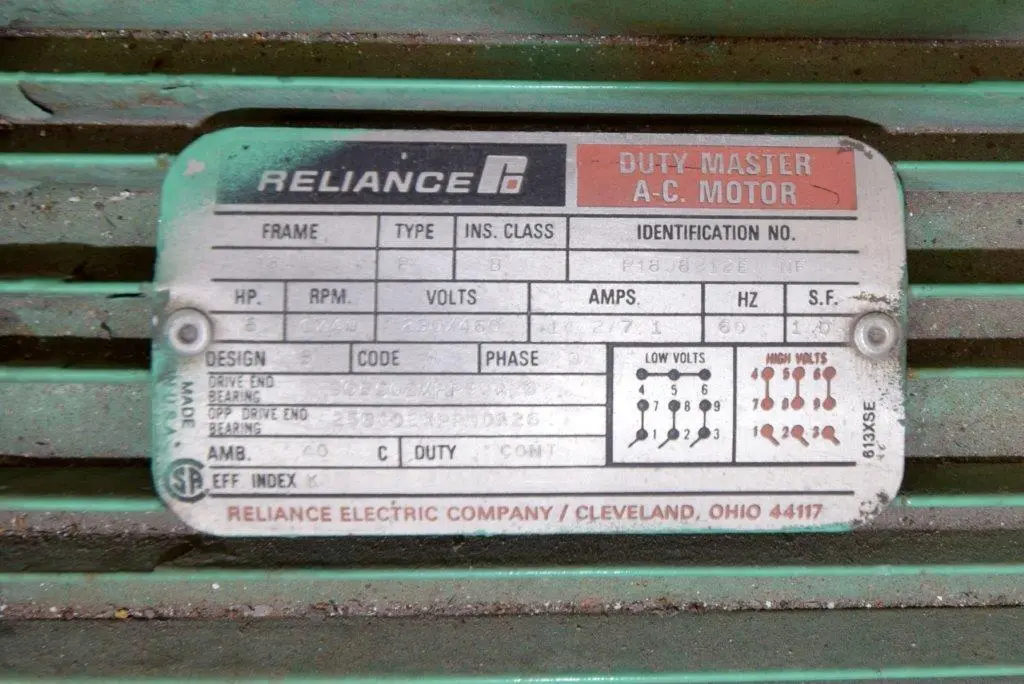

    Used-Mason Steel Tank, Approximately 2,500 Gallons, Stainless Steel, Vertical. Approximate 96″ diameter x 74″ straight side, dished top & bottom. Internal rated 14.9 psi at ambient temperature. Off center top entering Lightnin agitator, model 73-C-5, serial# 79073421, ratio 31.3, output rpm 56. Approximate 2-1/2″ diameter shaft with a 4 blade turbine, driven by a 5hp, 3/60/230/460 volt, 1740 rpm motor. (3) 48″ Tall side wall baffles. Openings top 1-1/2″, 2″, 4″, 10″ 18″ man way with cover, 3″ center bottom outlet. Mounts on carbon steel side lugs. Serial# T-4483-9A, built 1980.

    Used-Mason Steel Tank, Approximately 2,500 Gallons, Stainless Steel, Vertical. Approximate 96″ diameter x 74″ straight side, dished top & bottom. Internal rated 14.9 psi at ambient temperature. Off center top entering Lightnin agitator, model 73-C-5, serial# 79073421, ratio 31.3, output rpm 56. Approximate 2-1/2″ diameter shaft with a 4 blade turbine, driven by a 5hp, 3/60/230/460 volt, 1740 rpm motor. (3) 48″ Tall side wall baffles. Openings top 1-1/2″, 2″, 4″, 10″ 18″ man way with cover, 3″ center bottom outlet. Mounts on carbon steel side lugs. Serial# T-4483-9A, built 1980.
