156″ (3.92M) TRIM FOURDRINIER PAPER MACHINE 2,200 FPM NEW ALLEN BRADLEY DRIVE SYSTEM IN 2008
Product ID: PG-PM1

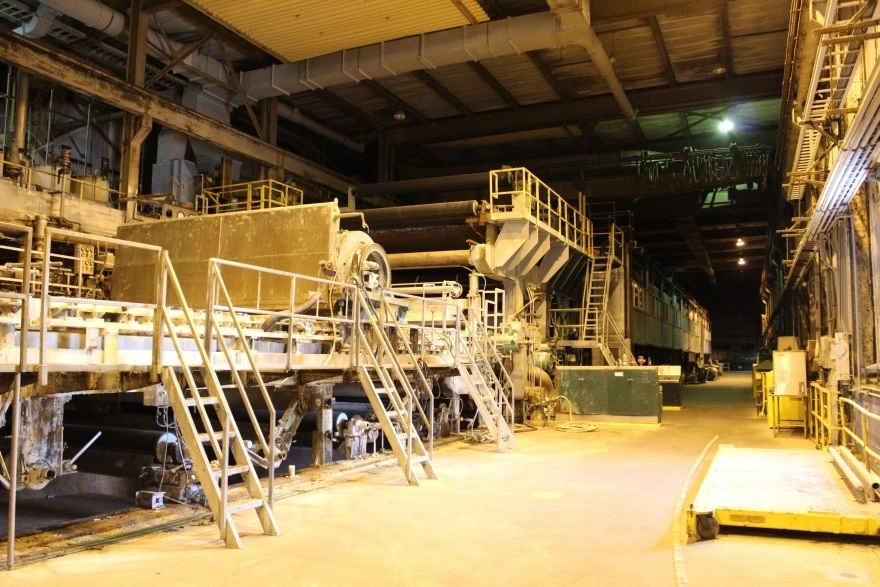

156″ (3.92M) TRIM FOURDRINIER PAPER MACHINE 2,200 FPM

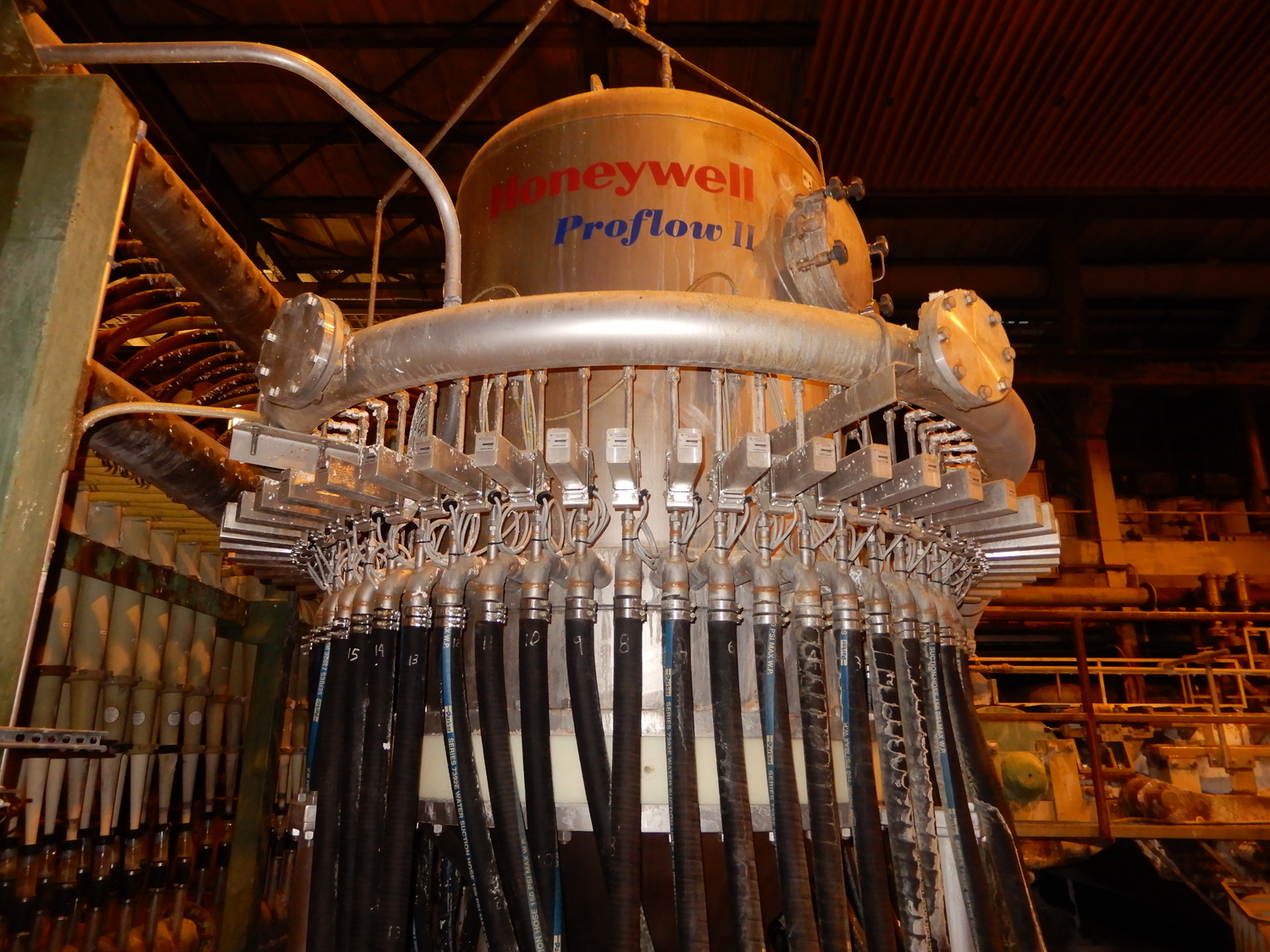

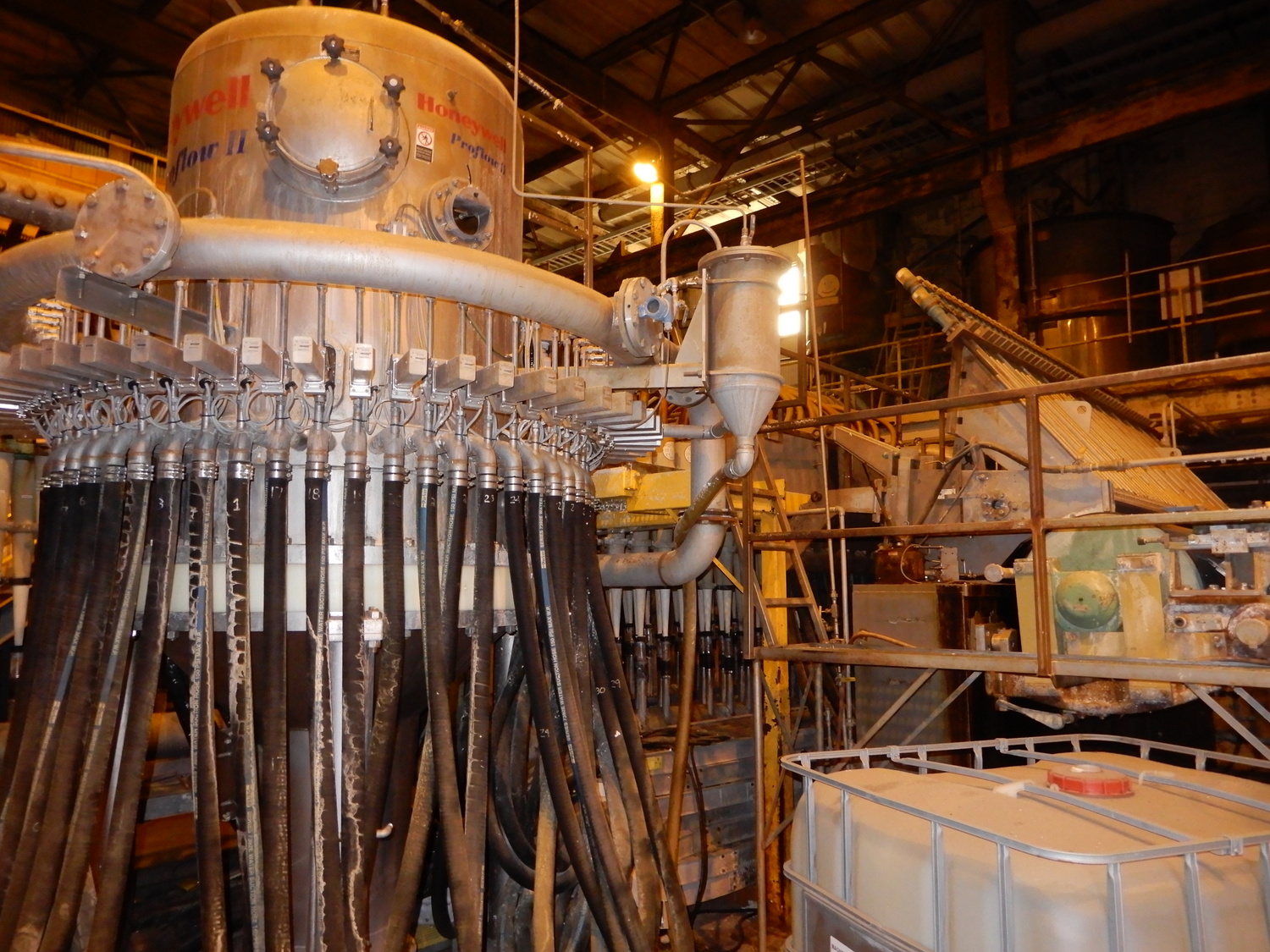

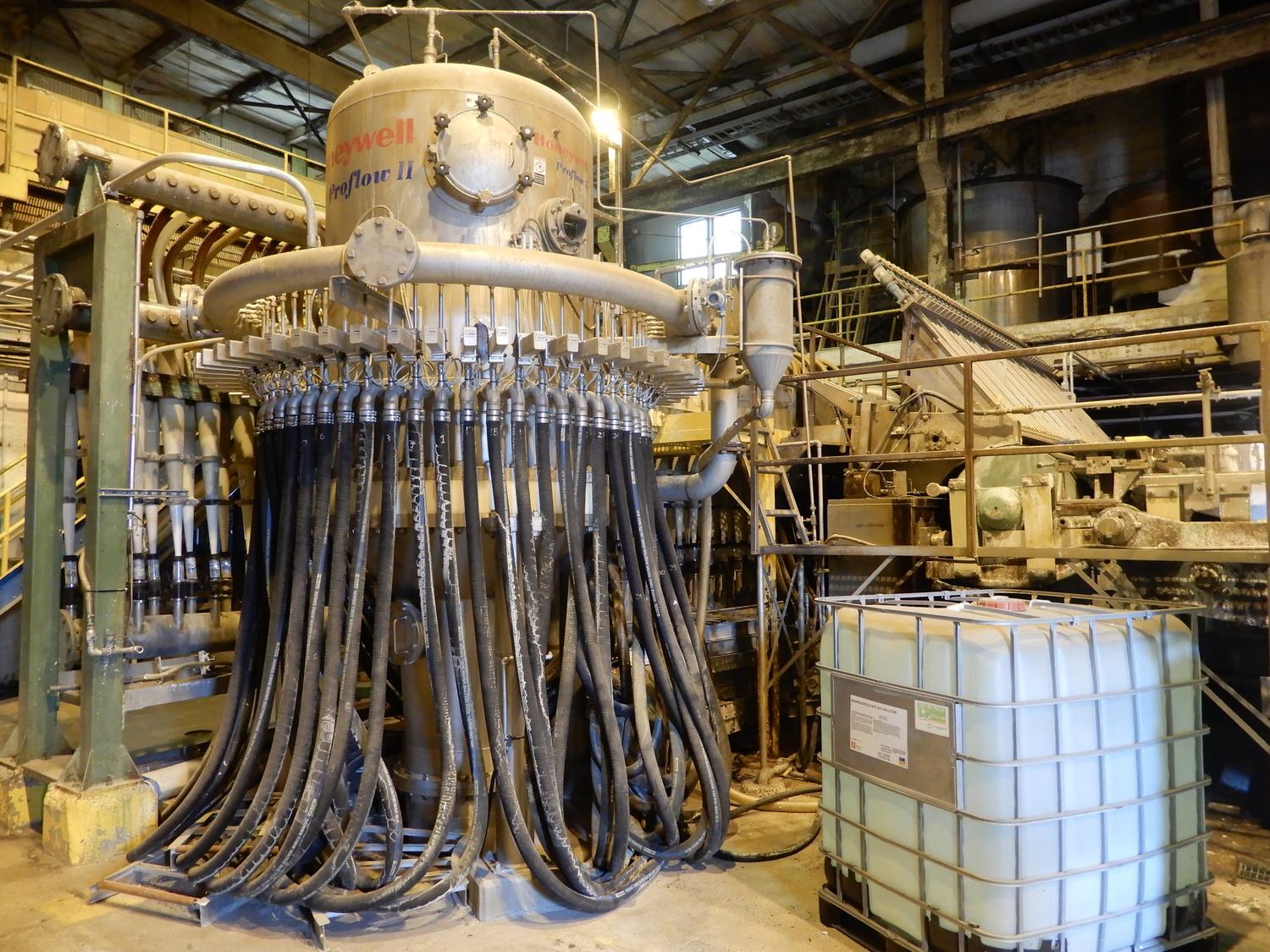

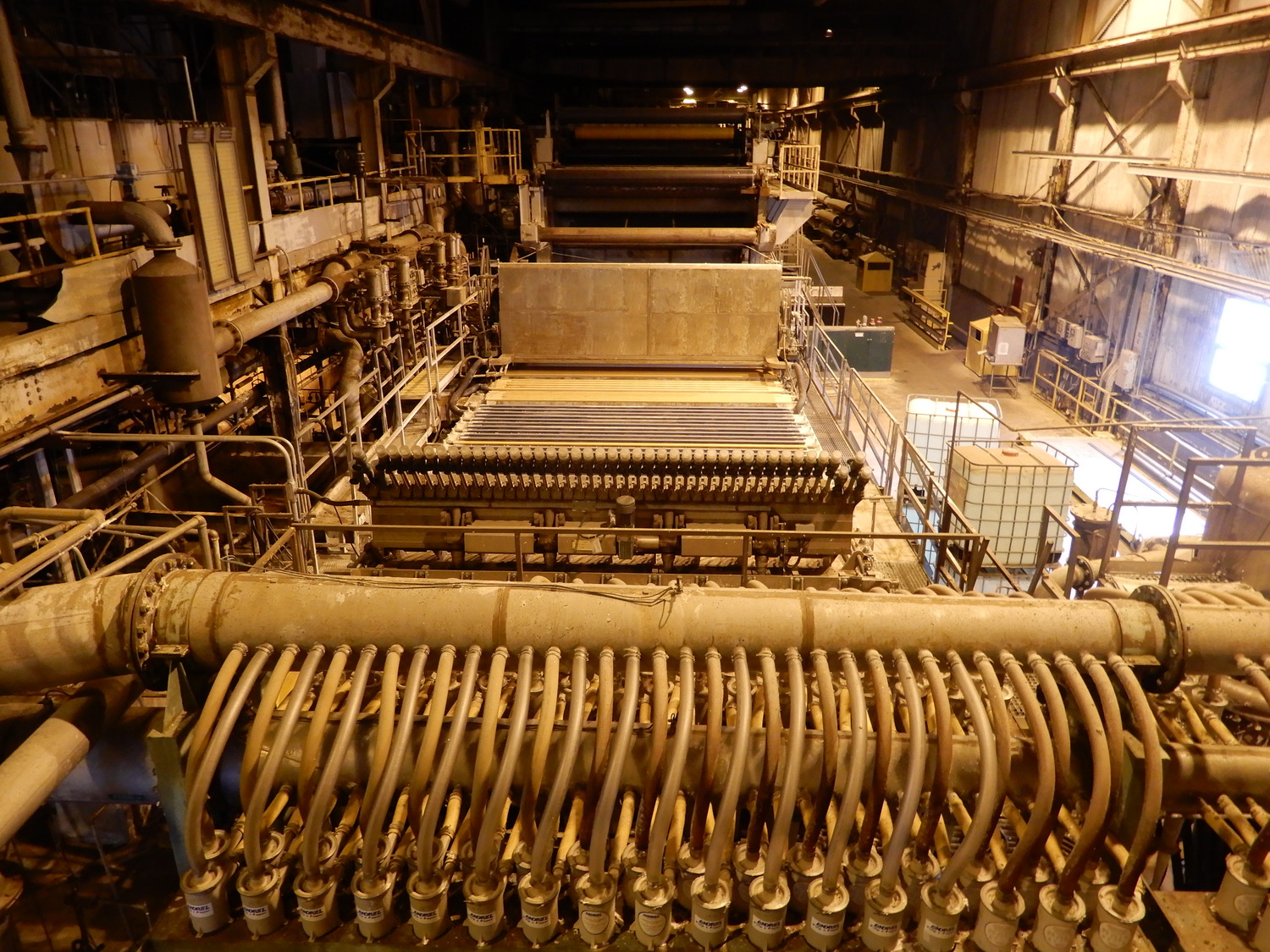

MacFab S/S Air Pad HeadBox (2013) With Honeywell Model ProFlow II Position Automatic Profile
50 – 235 GSM, Dilution System installed New in 2013.

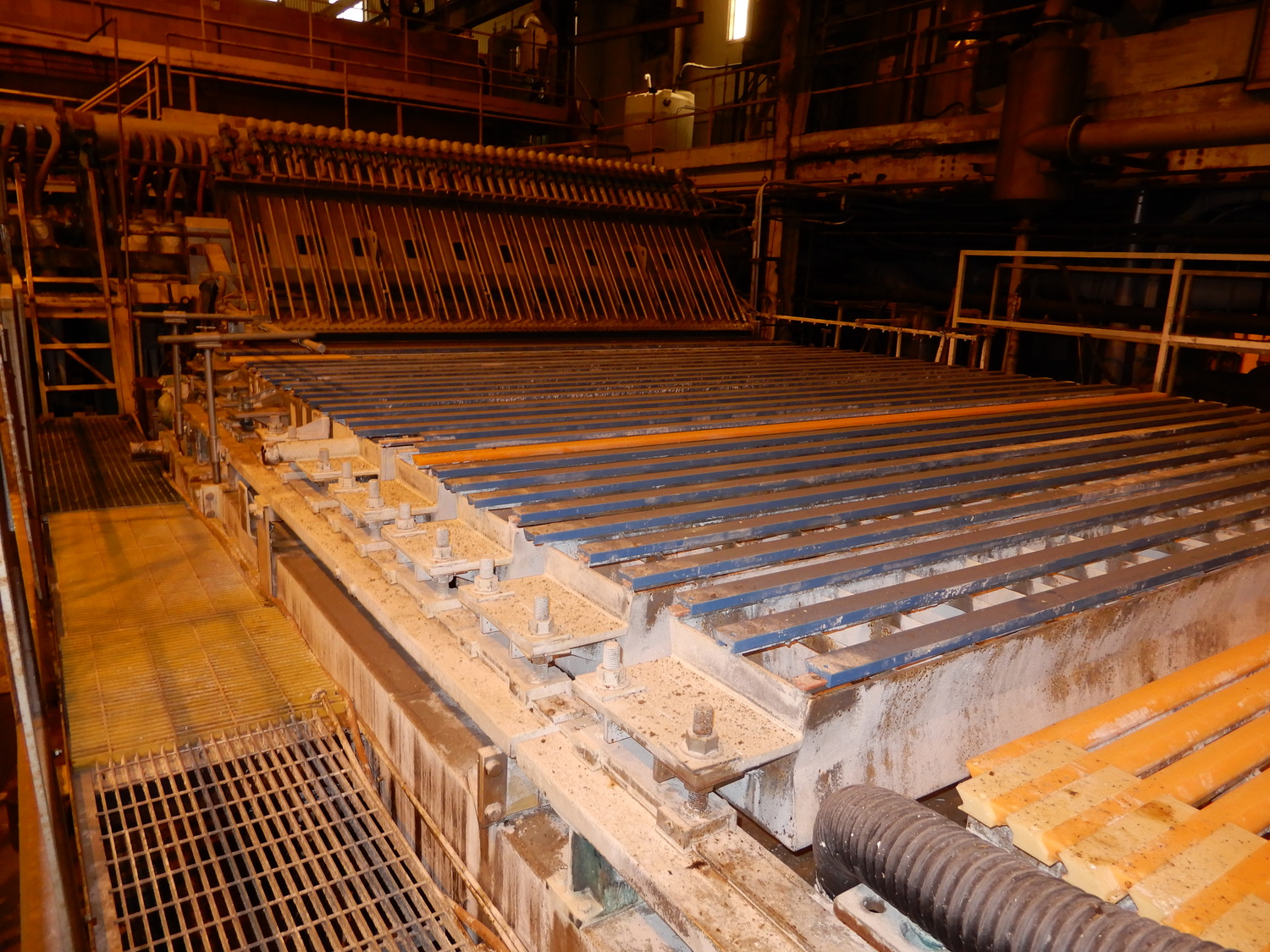

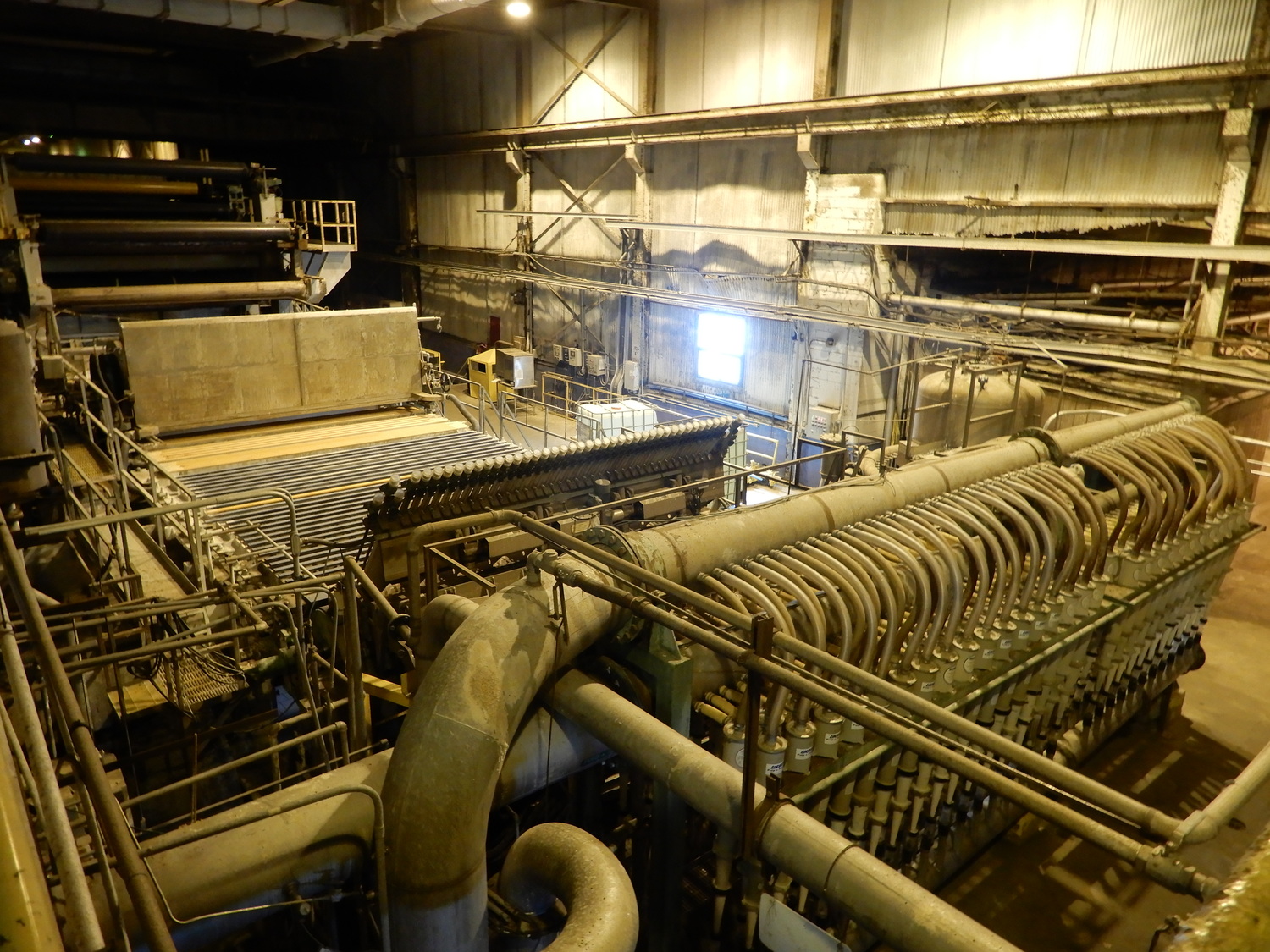

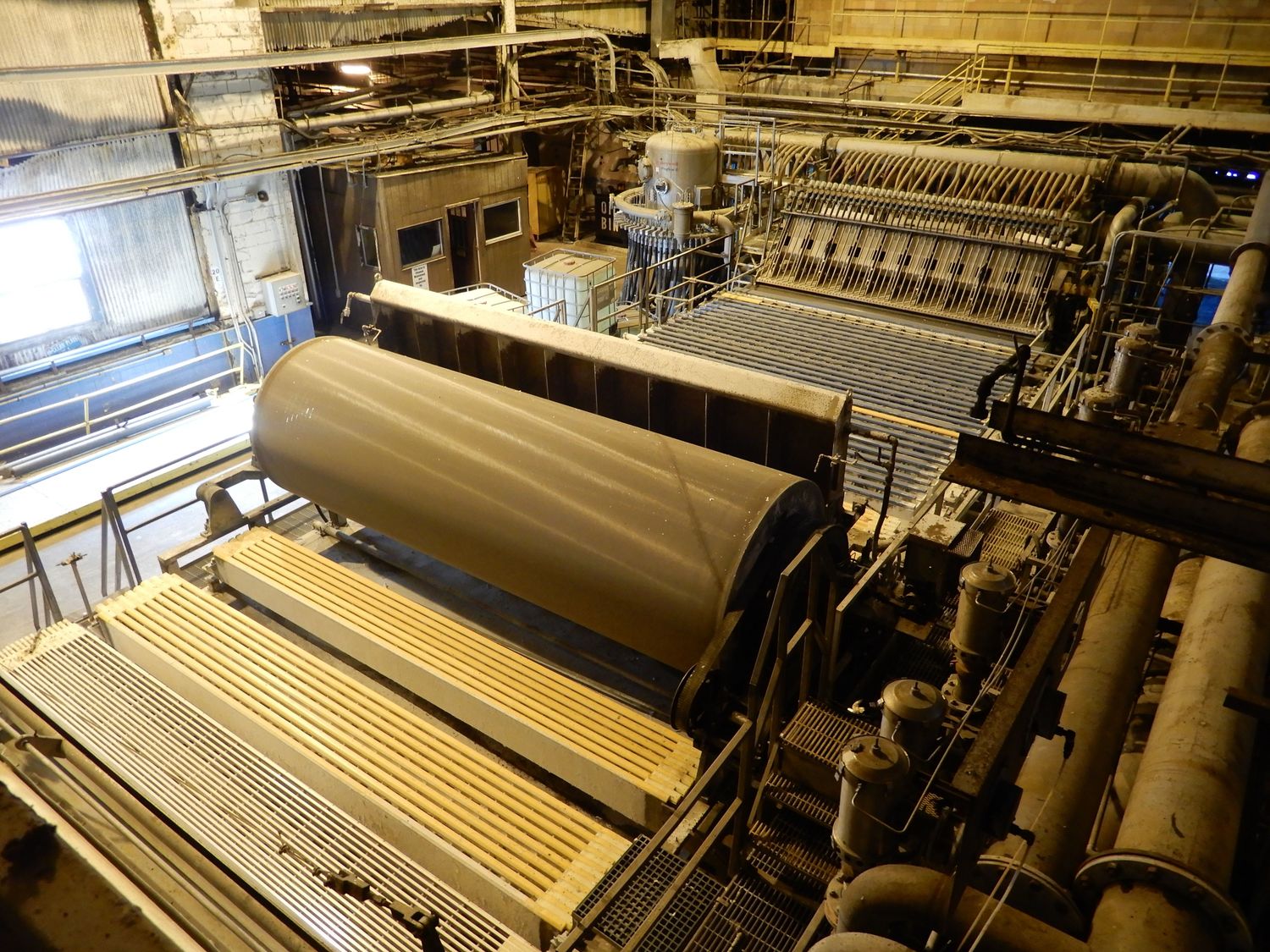

Cantilevered Fourdrinier S/S Table with (11) Suction Boxes
Suction Couch Roll 194″ Face

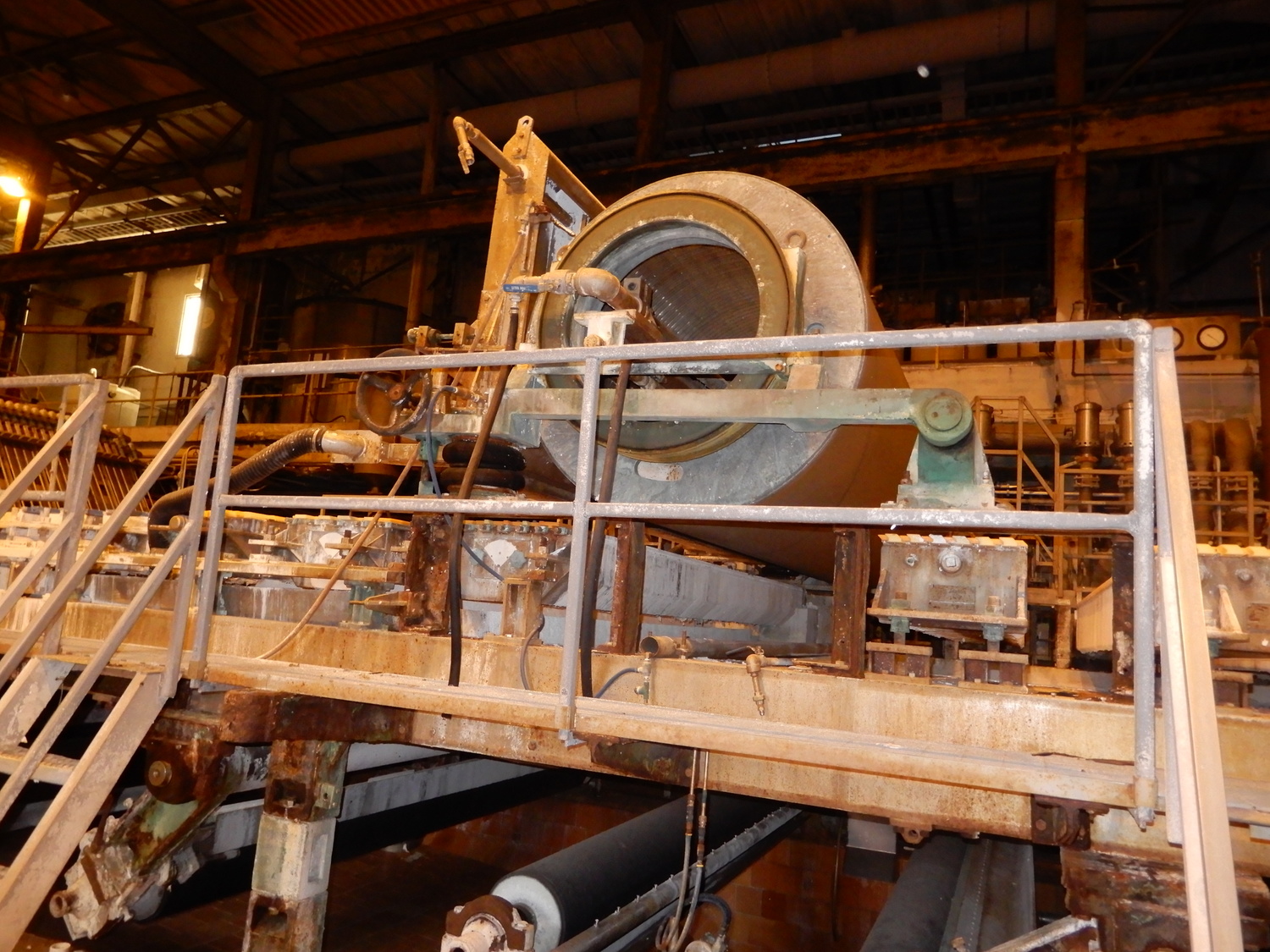

Dandy Roll

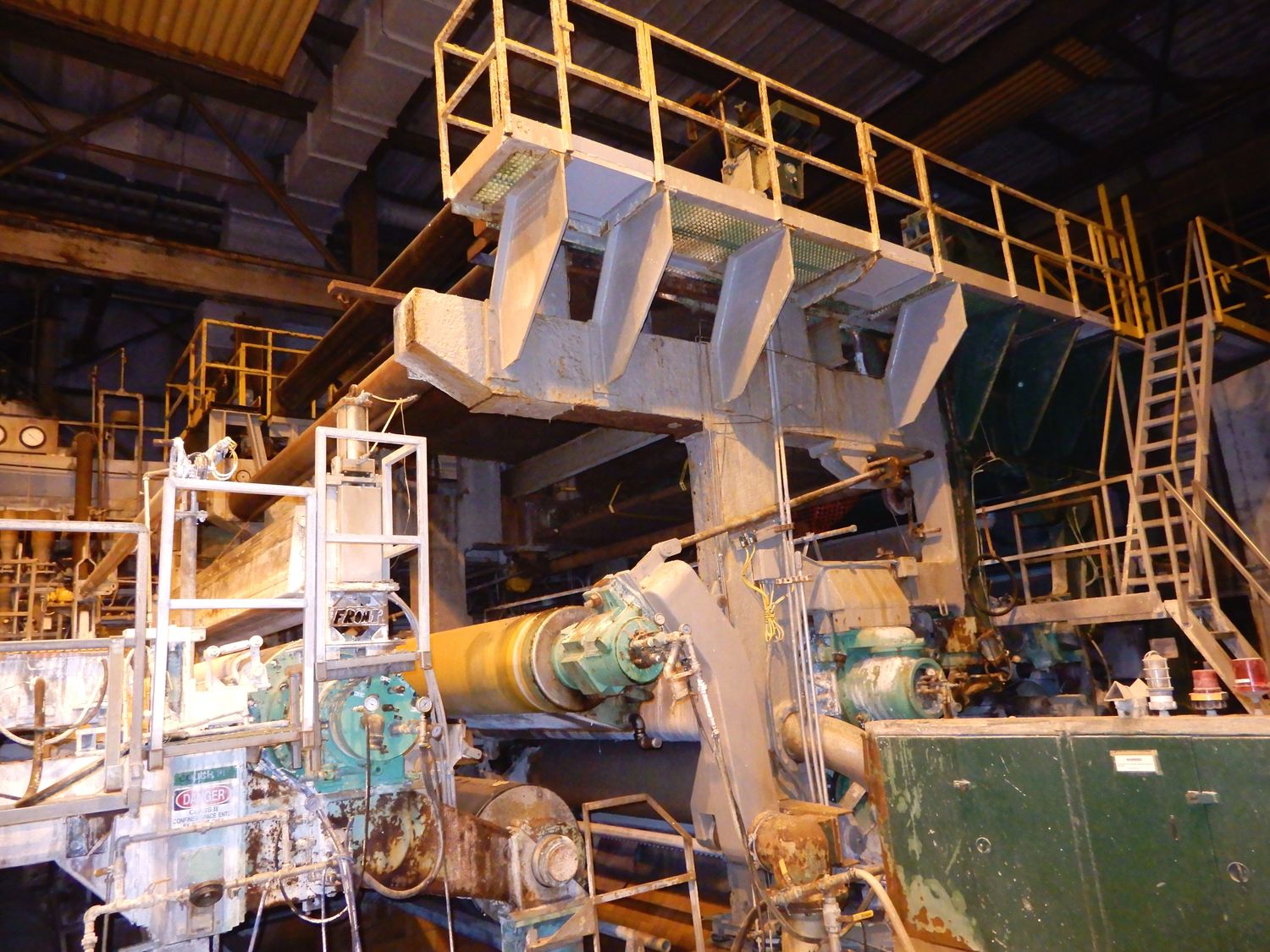

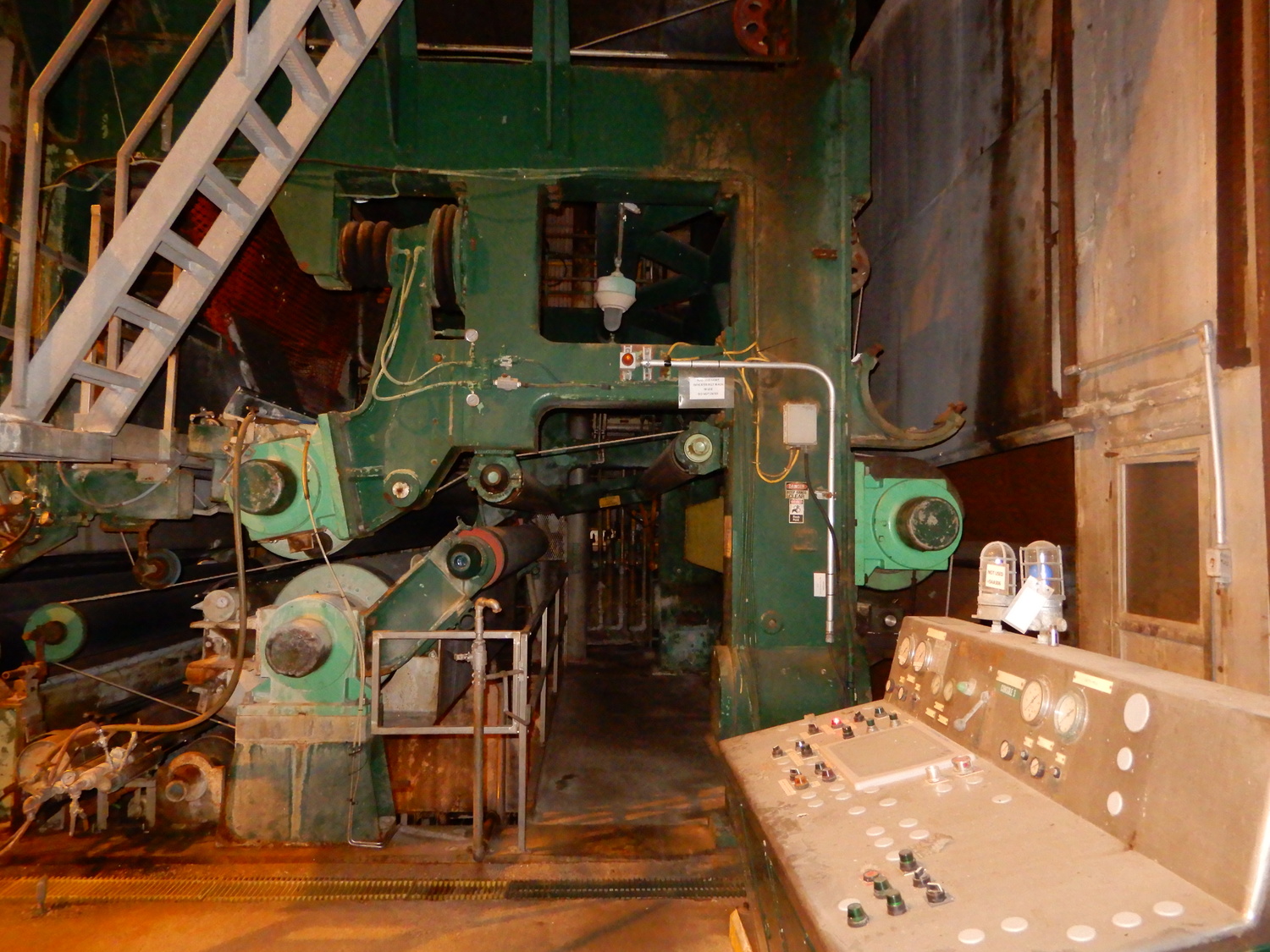

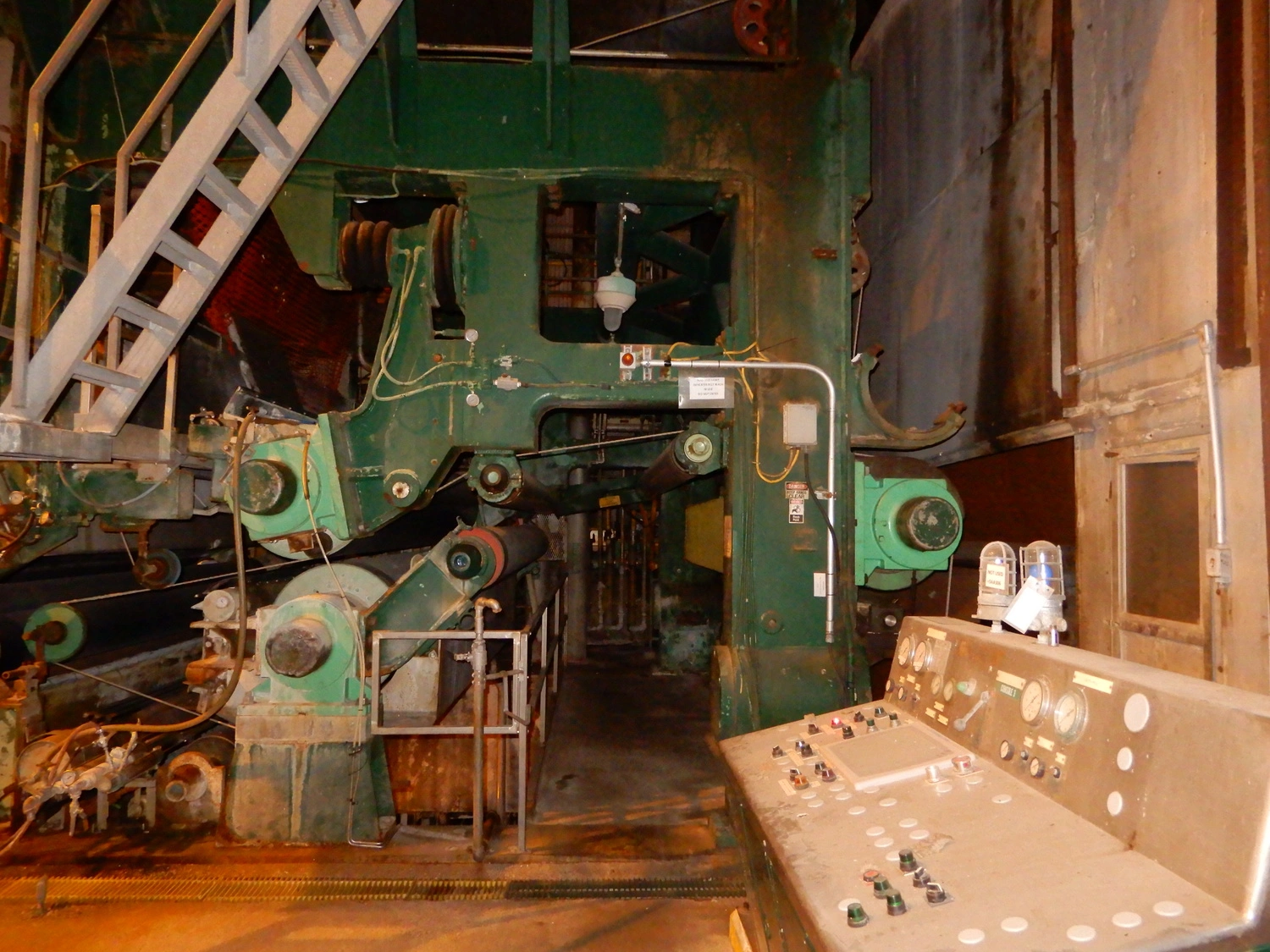

1st Press Hewitt Suction Press
2nd Press Plain Press Nip Roll- Blind Drilled

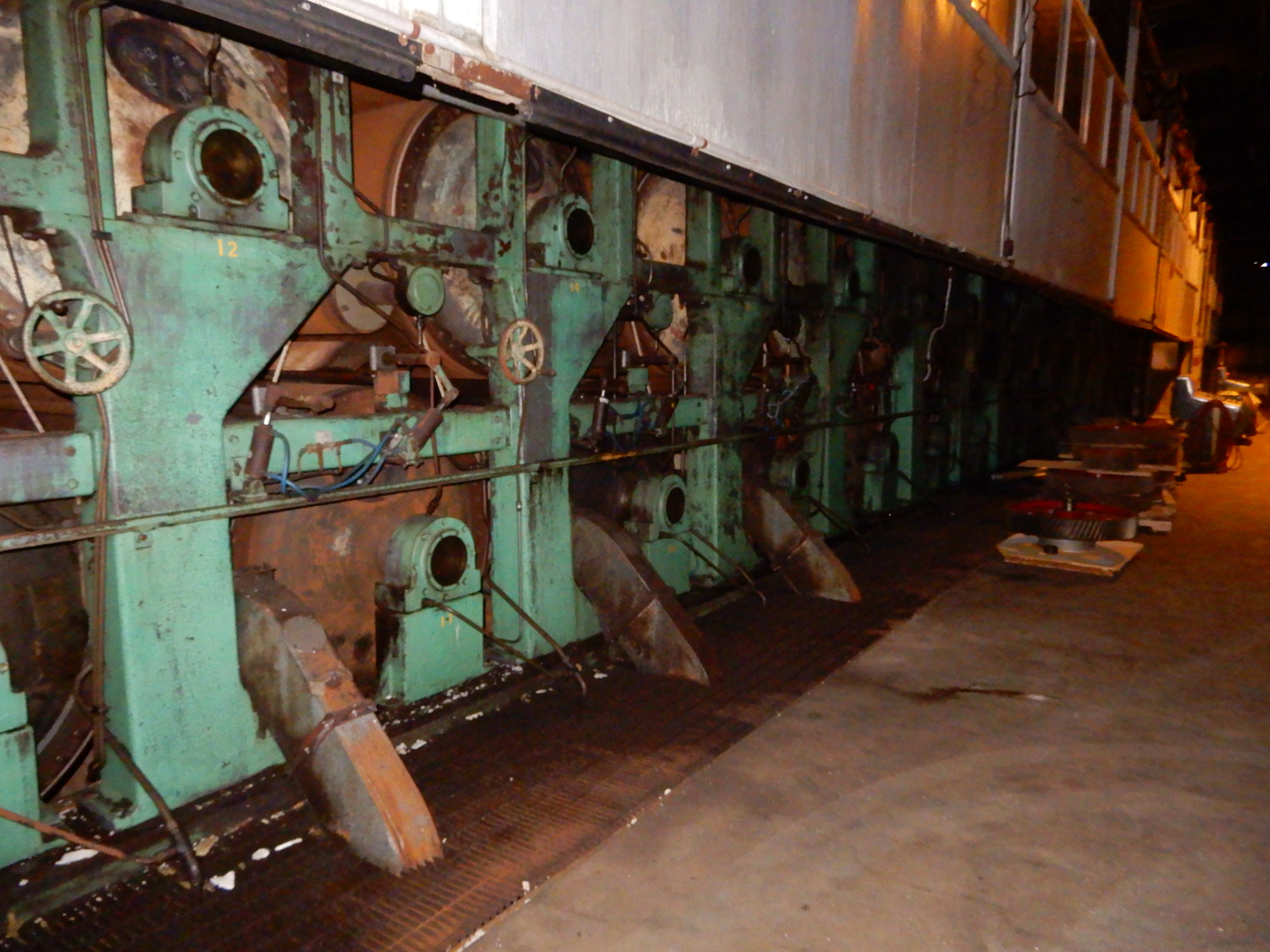

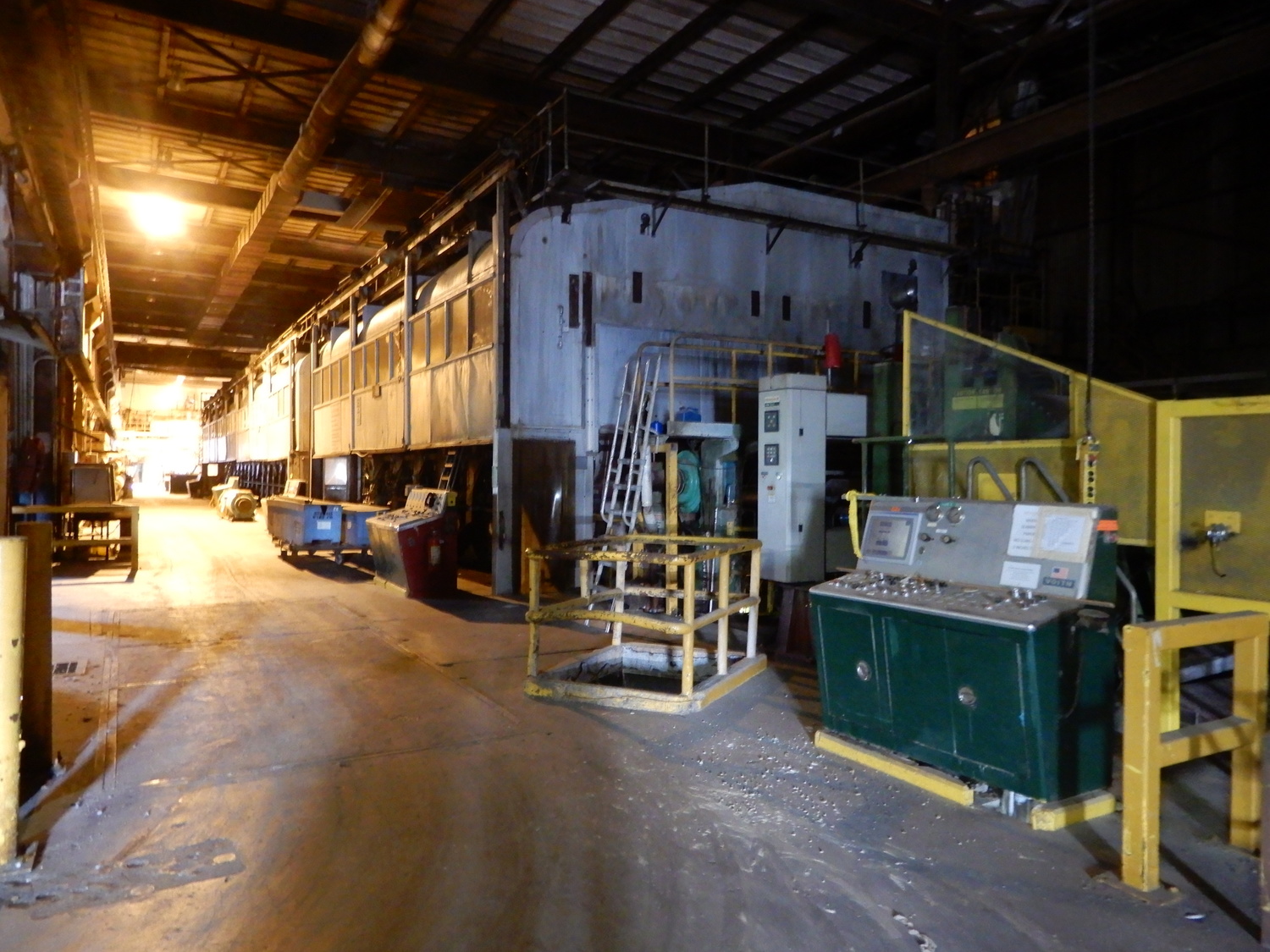

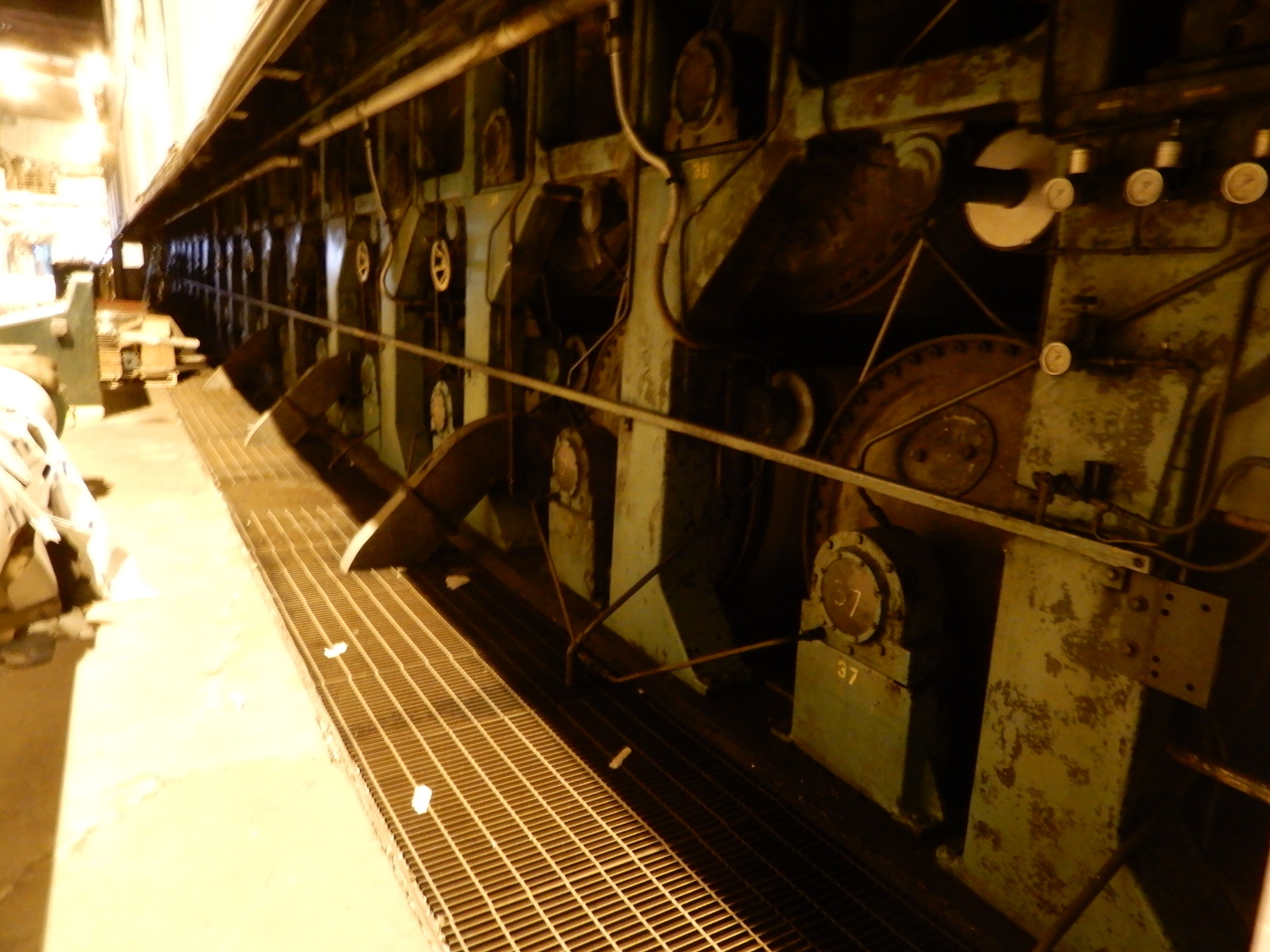

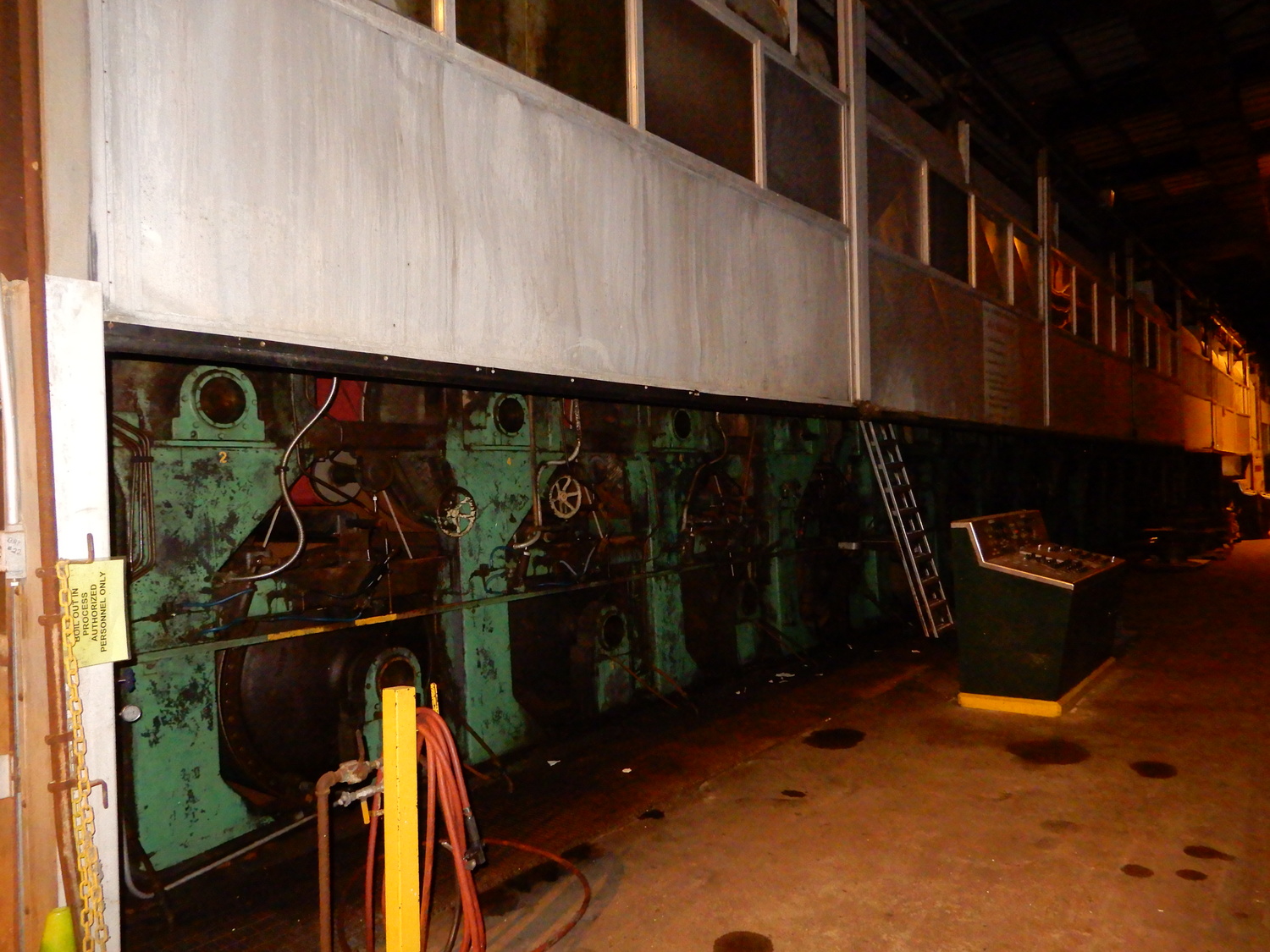

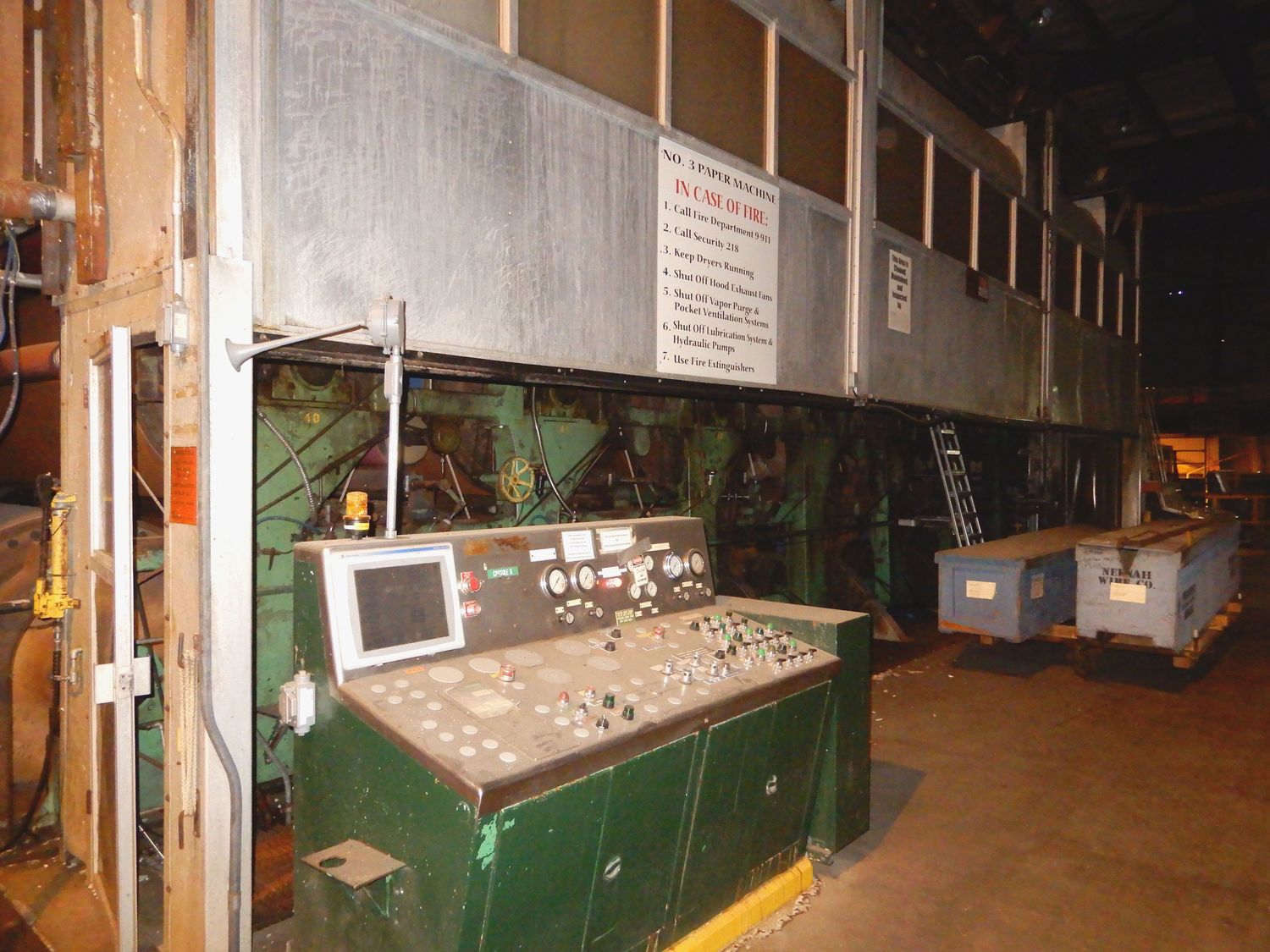

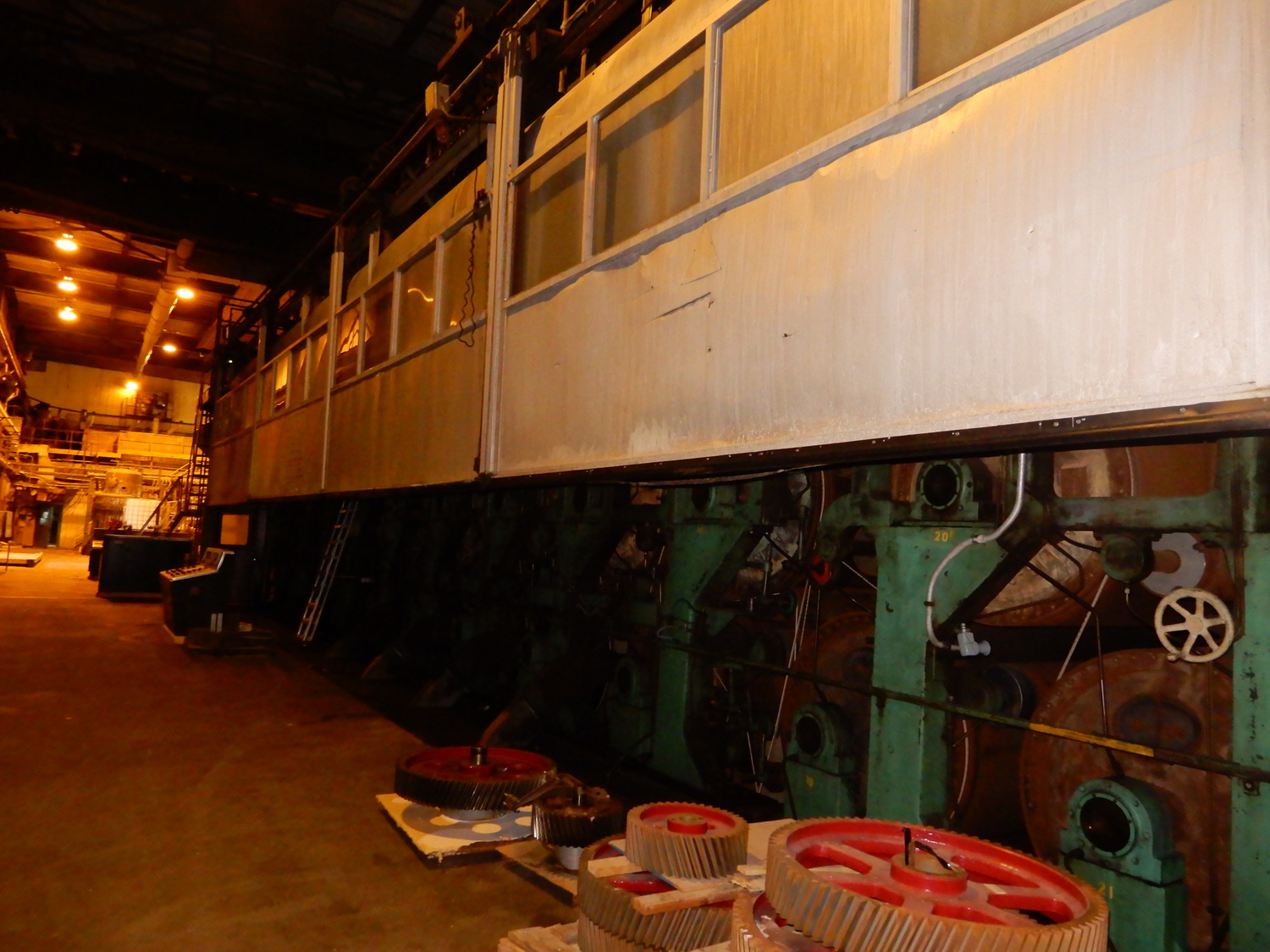

Dryer Section: (38)100 PSI Dryers 183.5″ Face x 60″ Diameter
Flooded Nip Size Press 182″
Manchester 2-Roll Calendar 174″ Face Rated 900 PLI
Honeywell Model 4000 Gauging System Scanner
Air Turn Up System
Voith Horizontal Track Reel 174″ Wide

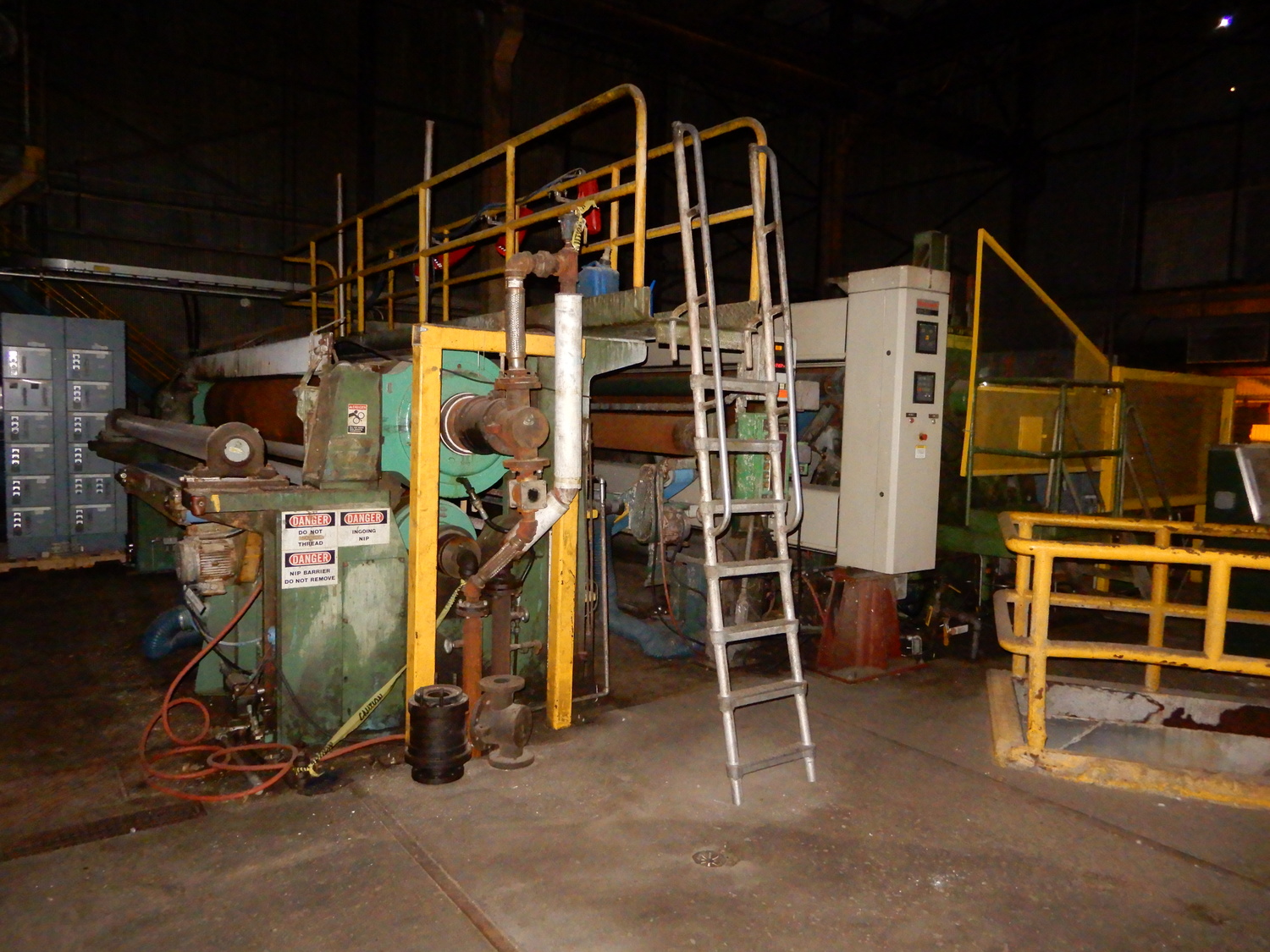

Jagenberg Vari-Step 65 Two Drum Slitter Rewinder s/n 30-23922 Mfg 1987. Dual (2) 250 HP Main motors.

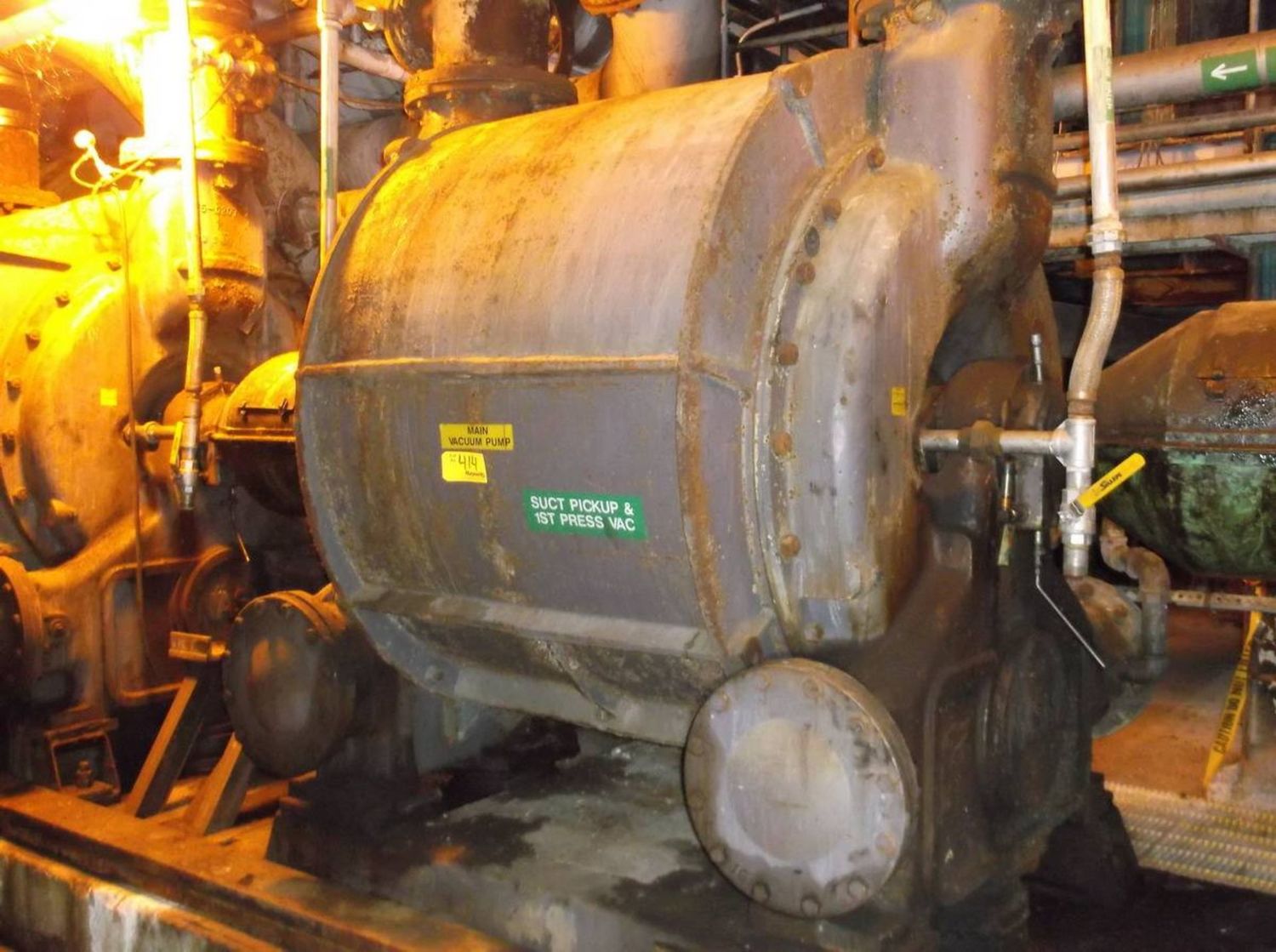

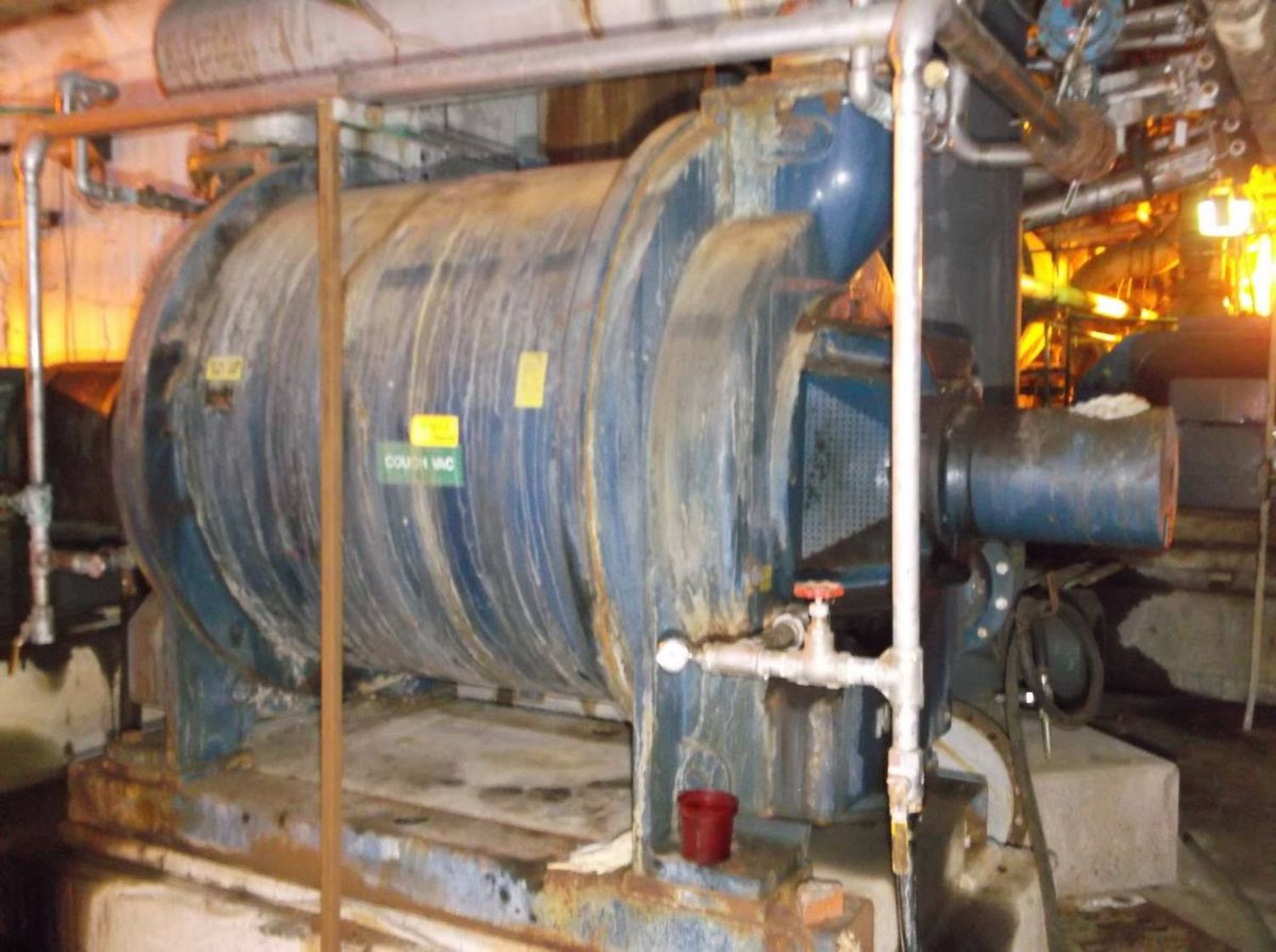

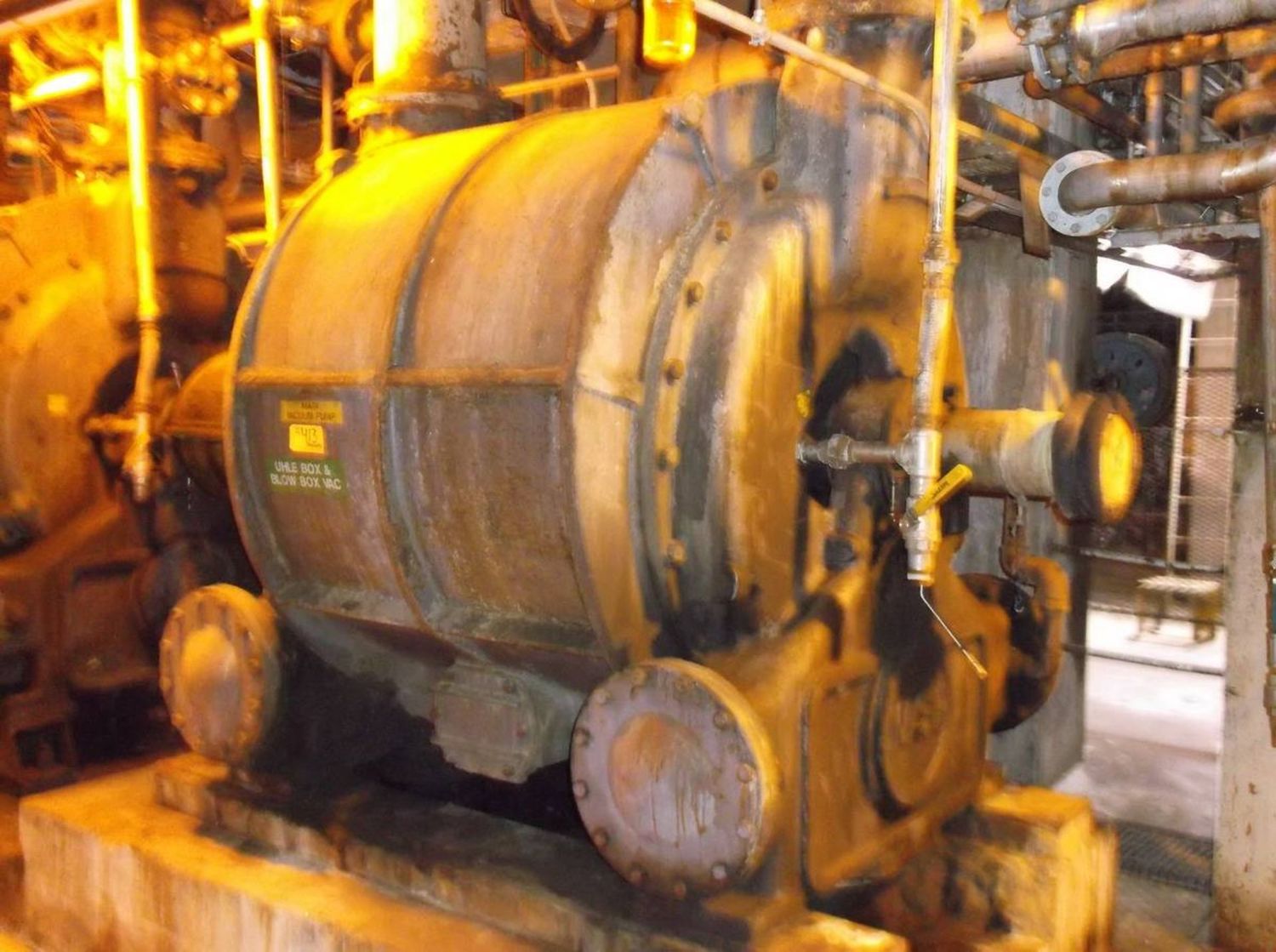

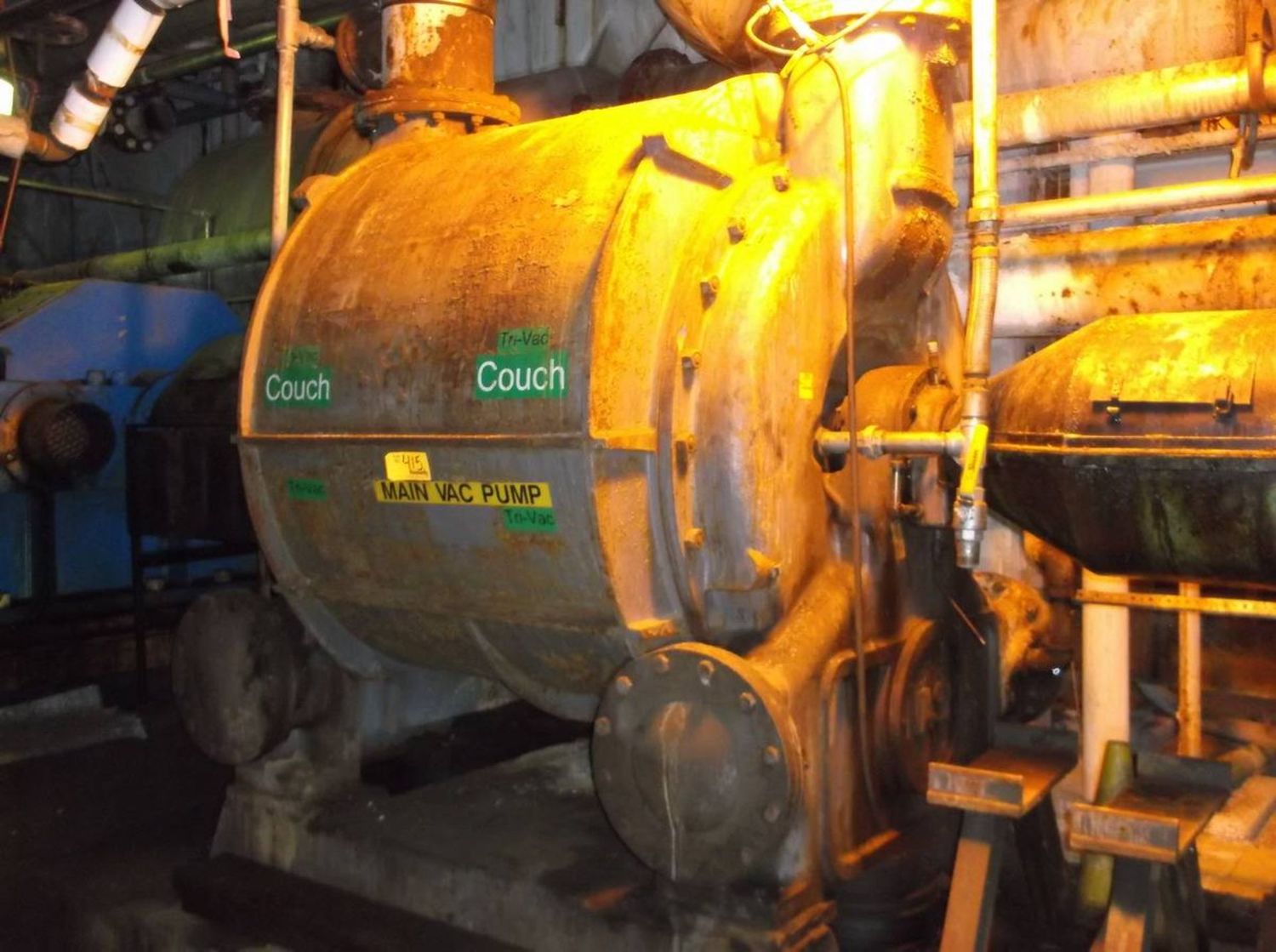

Complete Nash Vacuum Pump System

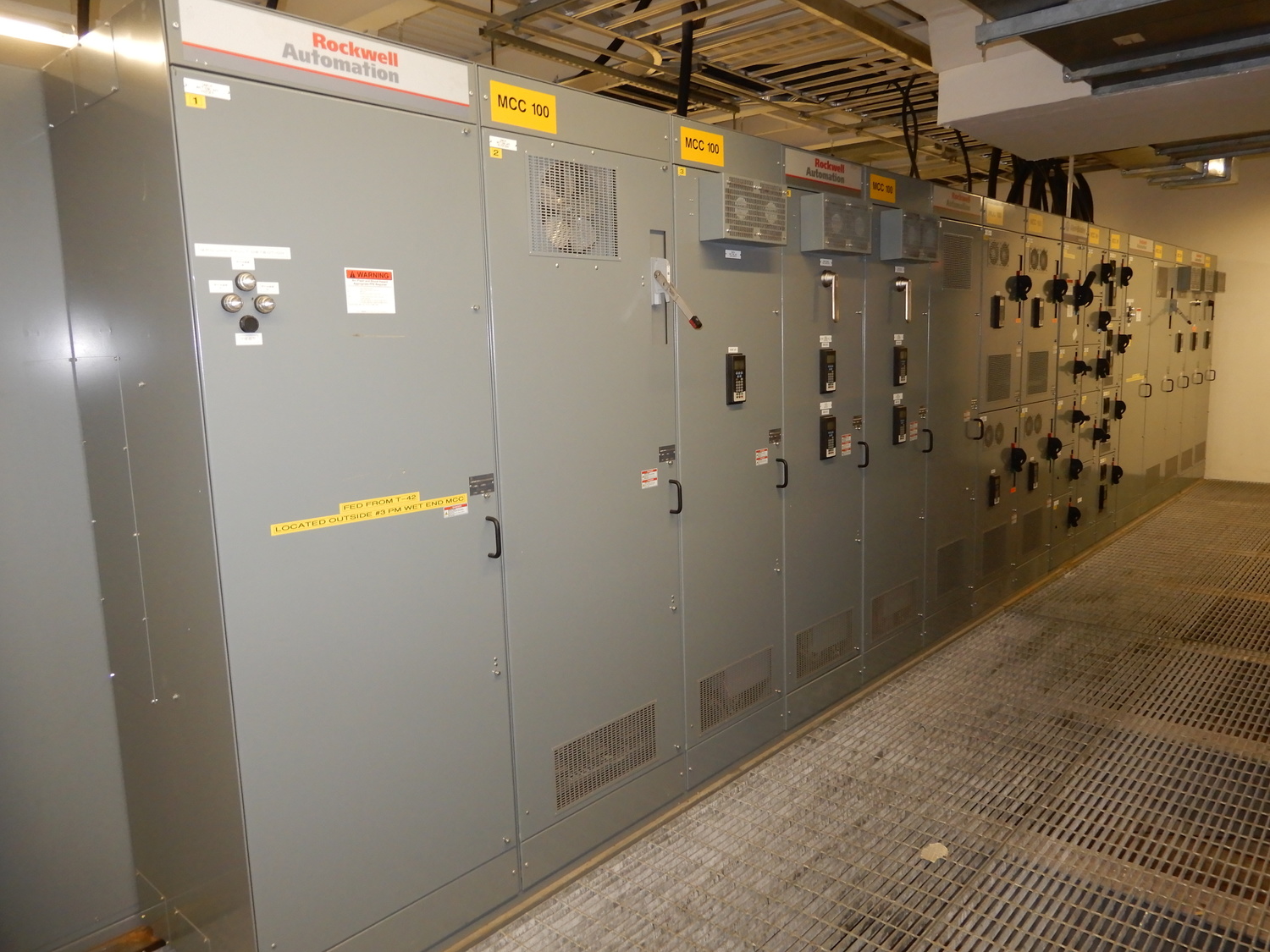

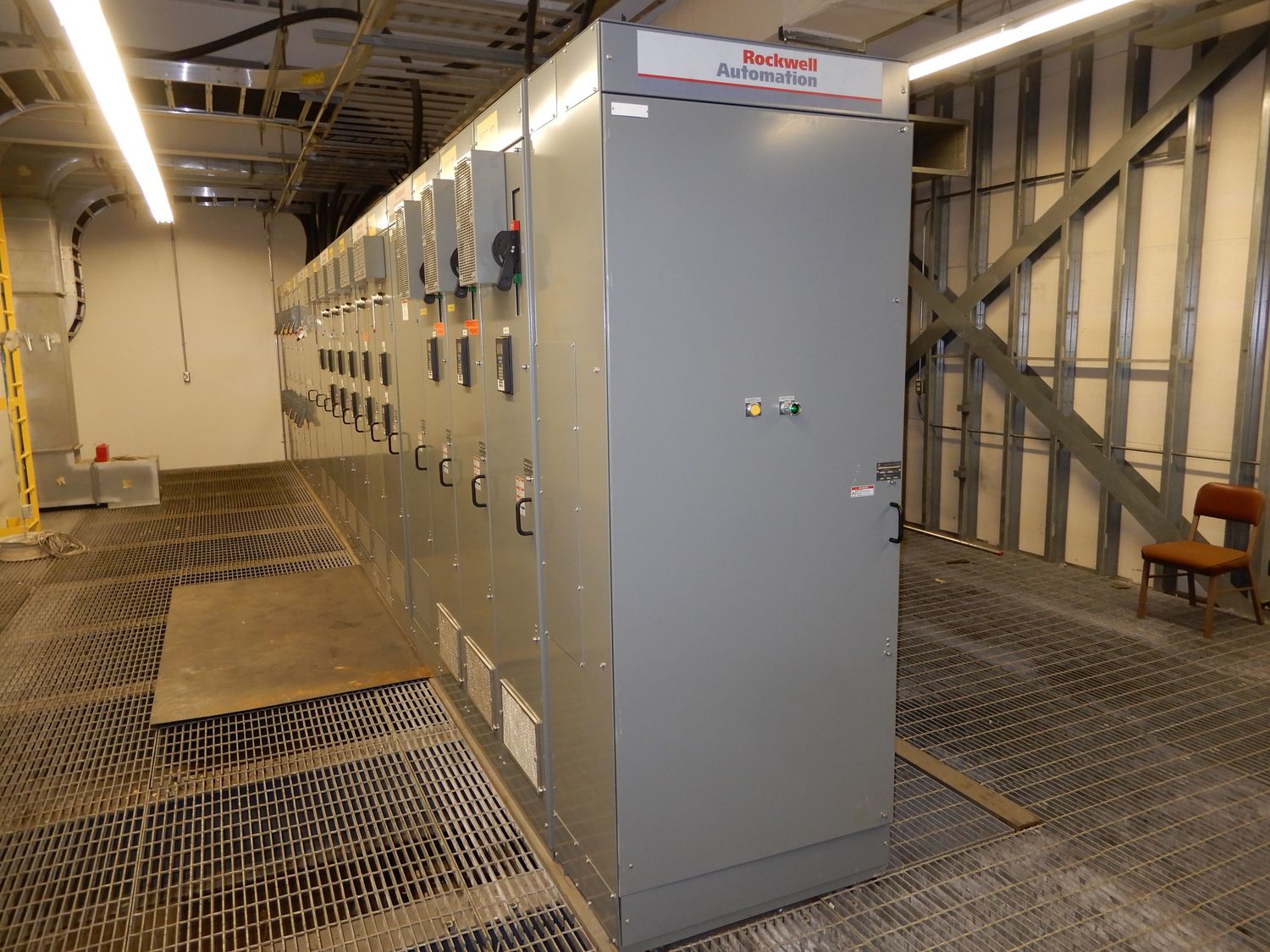

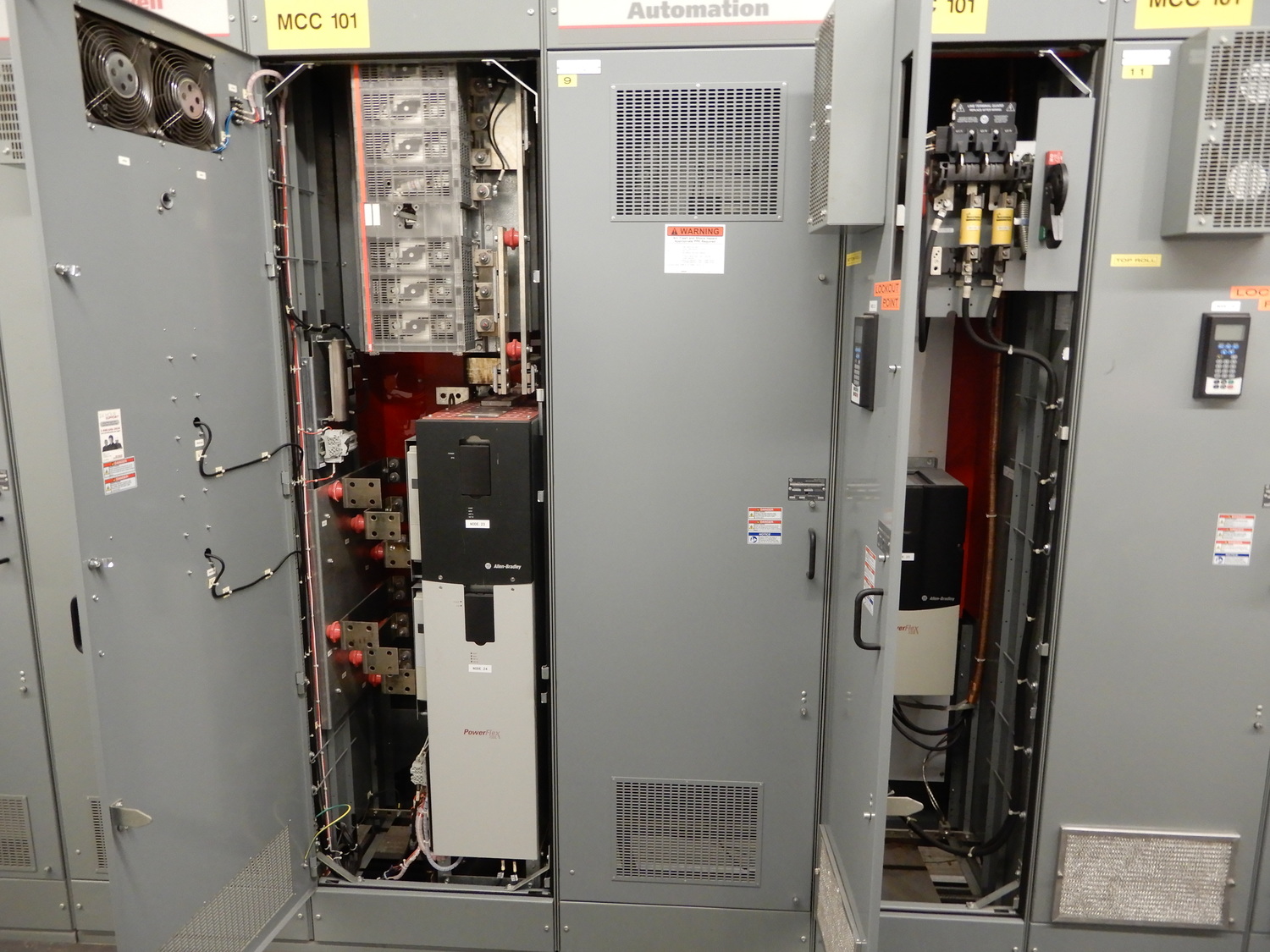

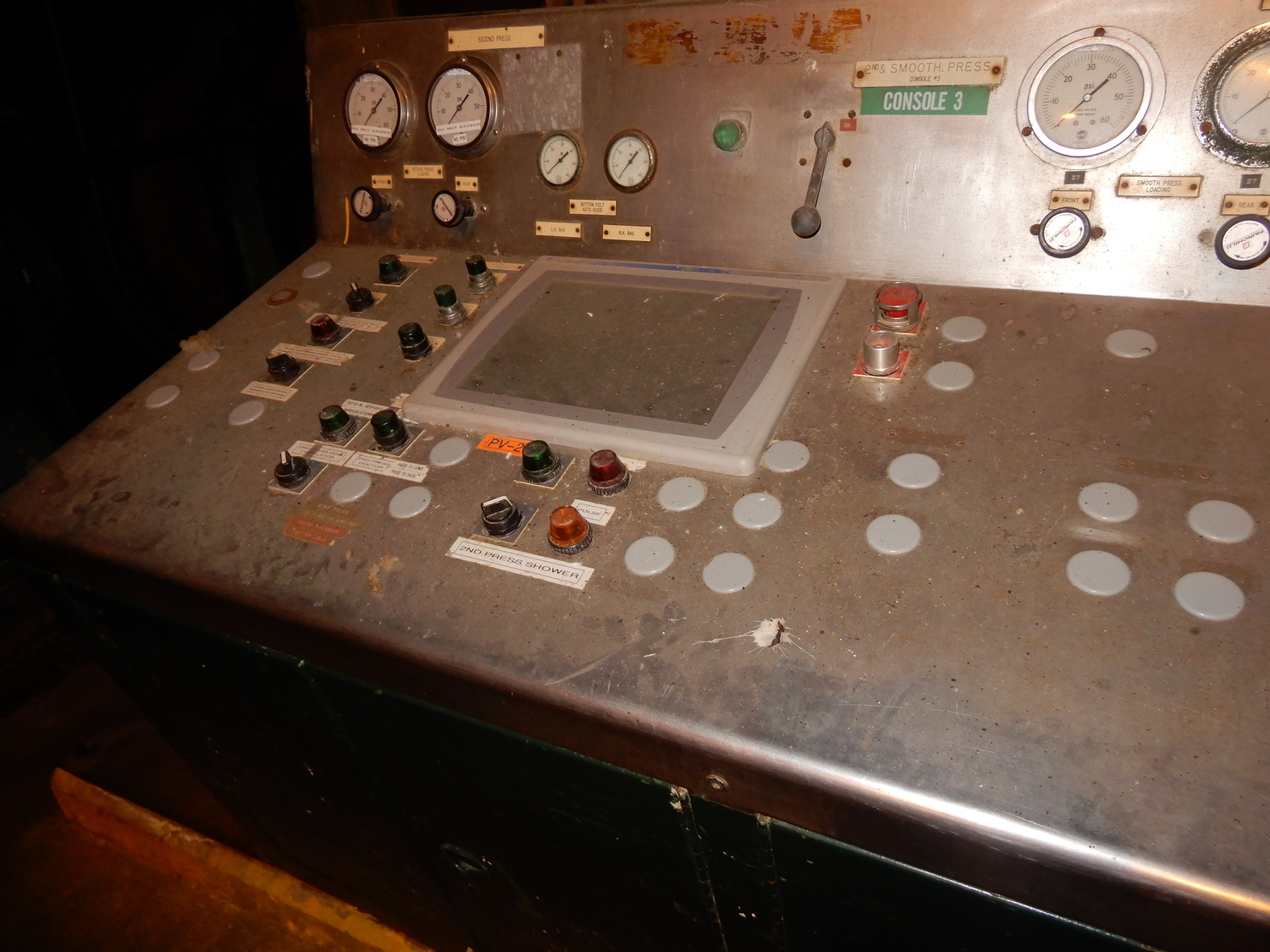

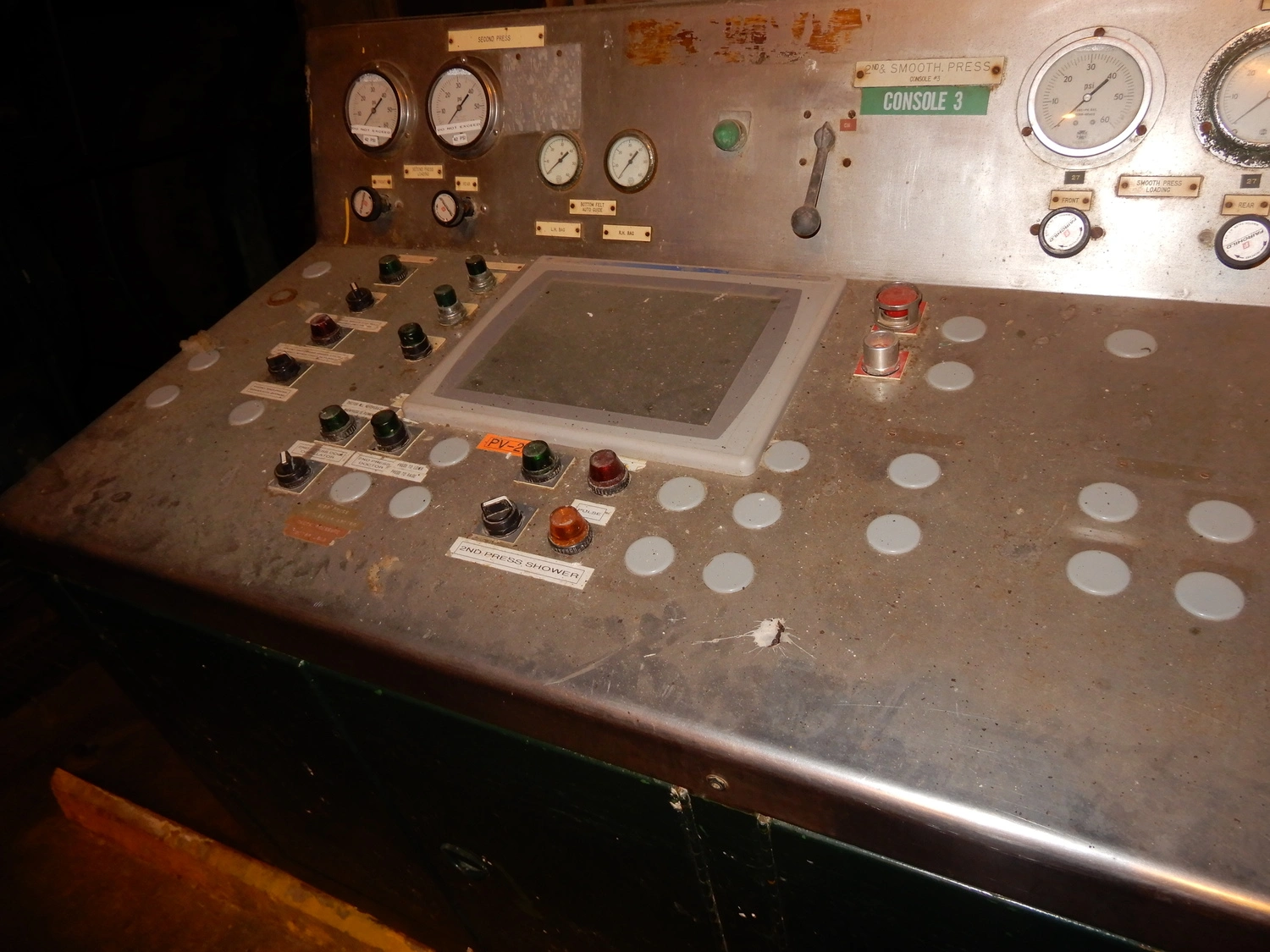

All Allen Bradley Drives and Controls Updated 2008 with new sectional drives Dual HZ 50/60
Nash Pumps (2) CL9002 and (1) CL6002 (1) 904 T

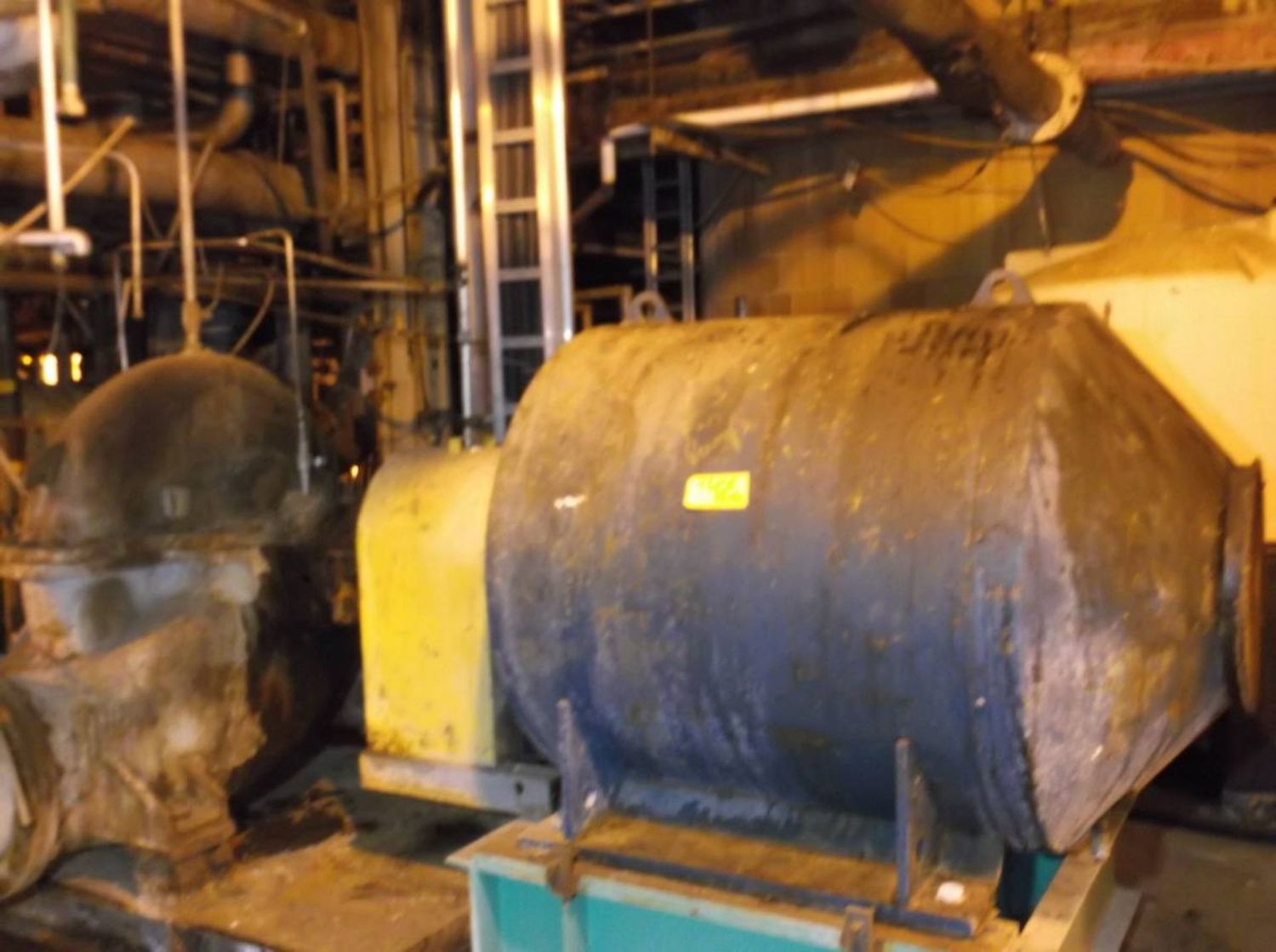

GE 700HP 460V #3 FAN PUMP
Last ran 50-250 GSM

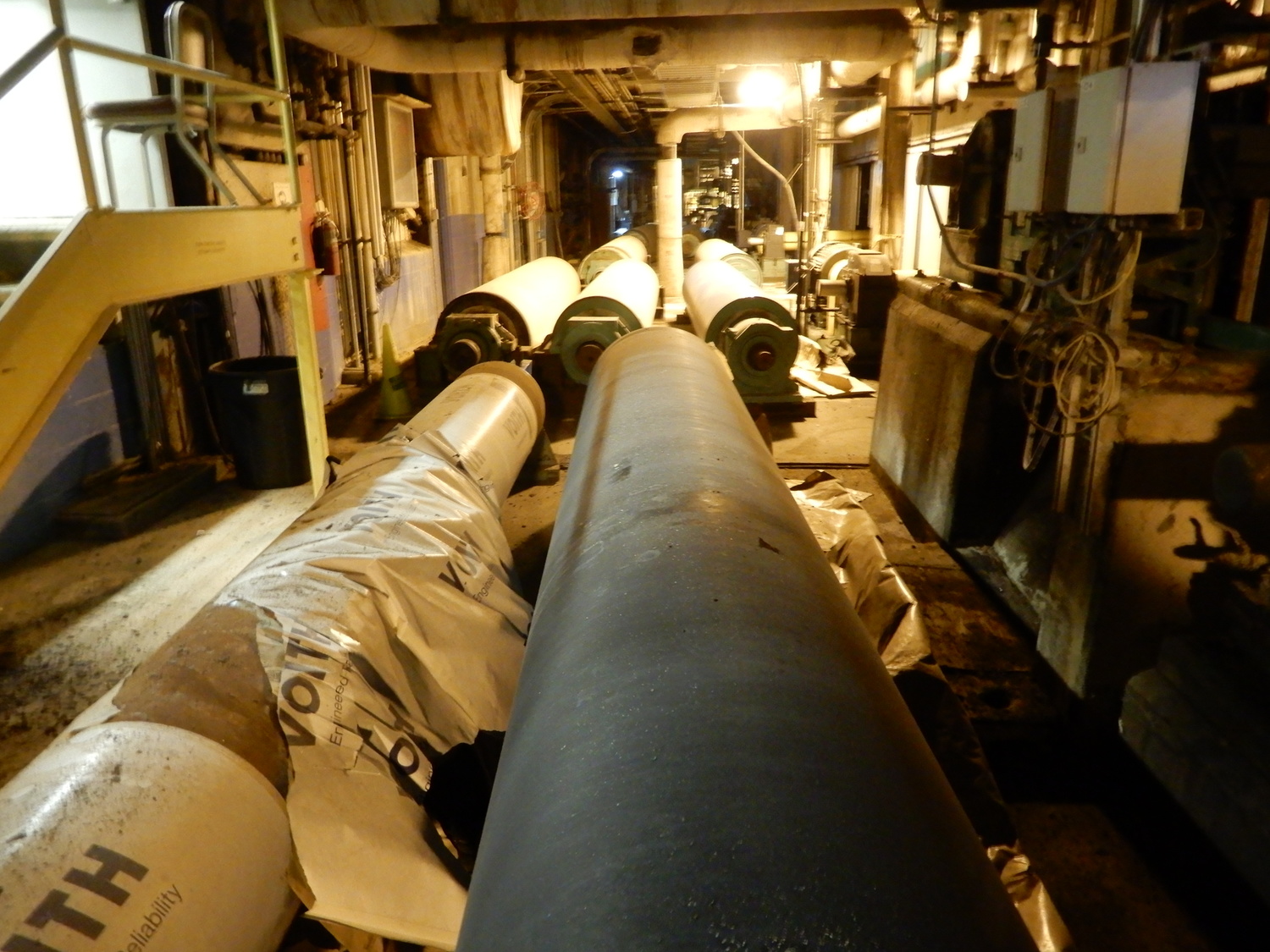

All Spare Associated Rolls
Complete Engineering and documentation available at site
