118″ (3.0M) TRIM BELOIT PAPER MACHINE 1000 FPM (PM #2)
Product ID: PG-PM2
118″ (3.0M ) TRIM BELOIT FOURDRINIER PAPER MACHINE 1000 FPM (PM# 2)

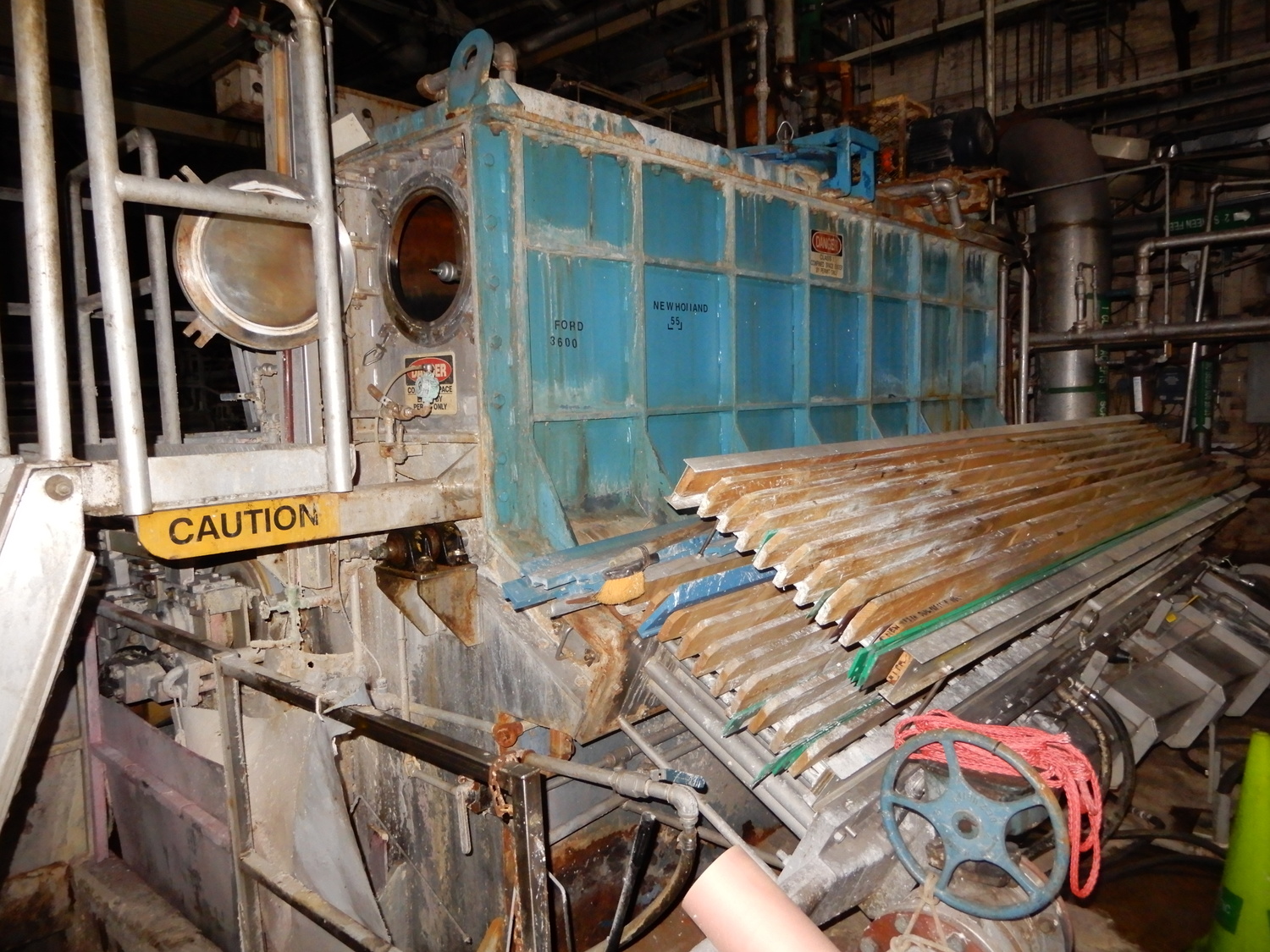

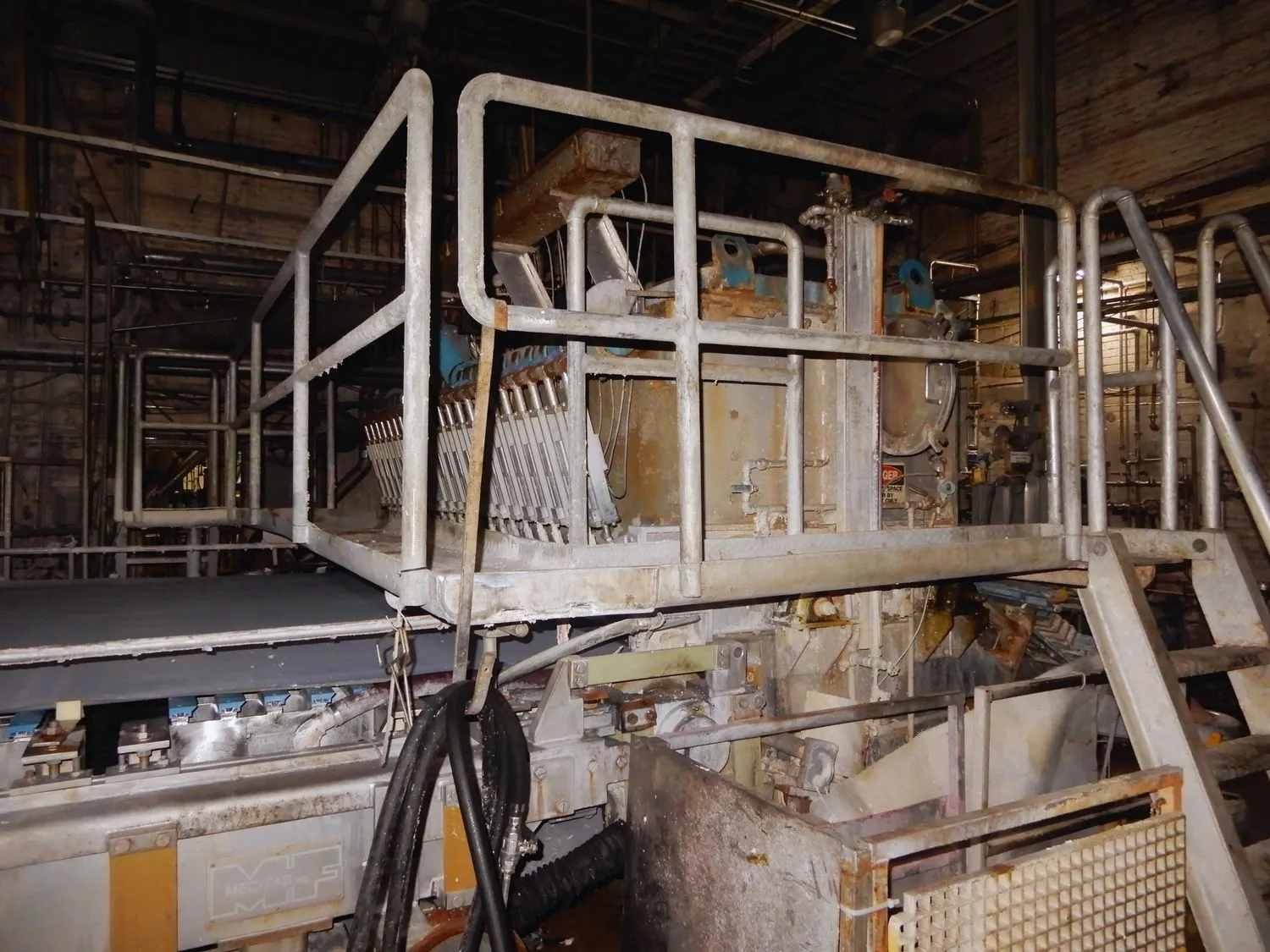

Mec-Fab 130″ Slice Air Pad HeadBox MFG 1993 with (22) Automatic Profile Adjustments

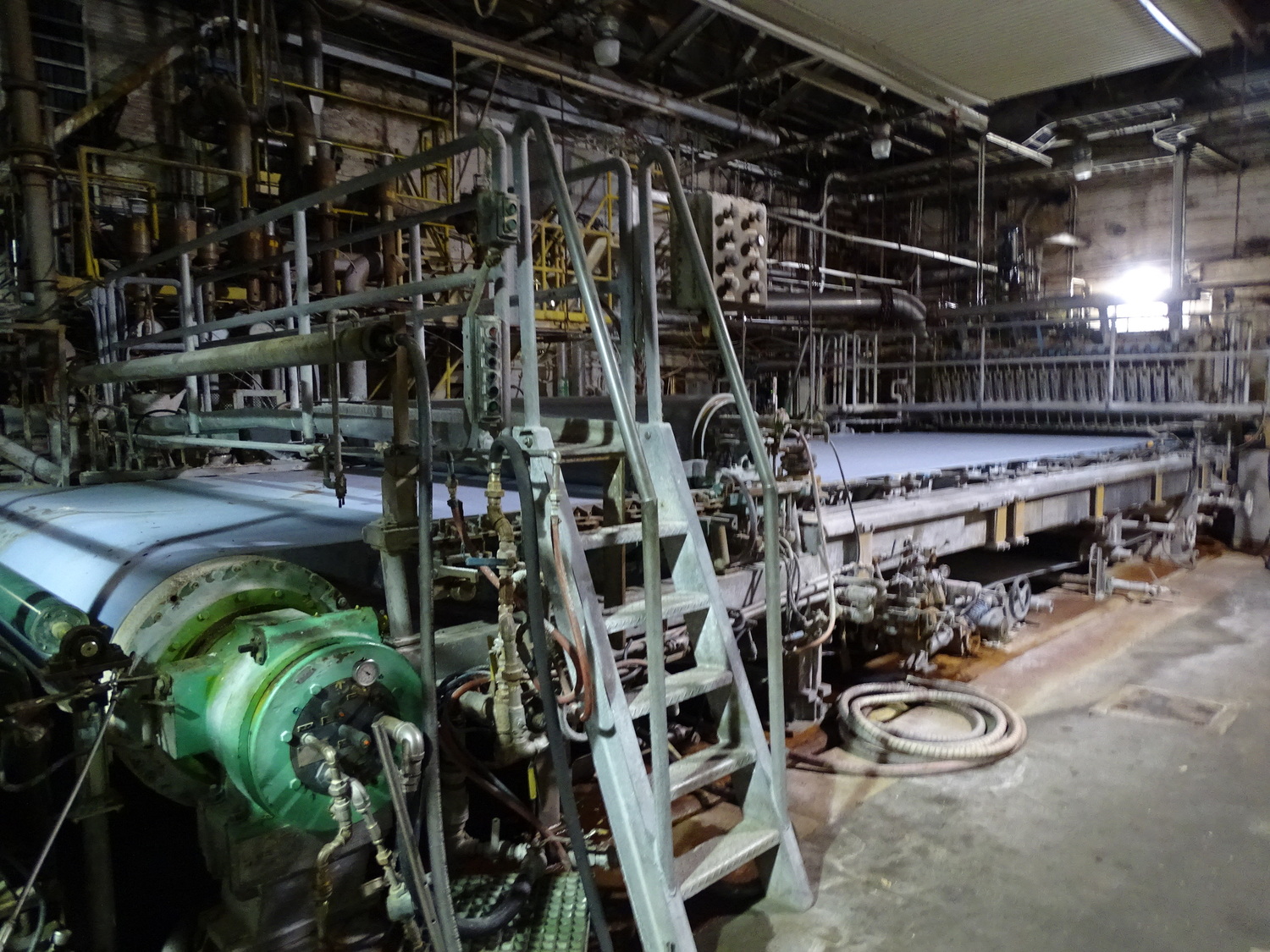

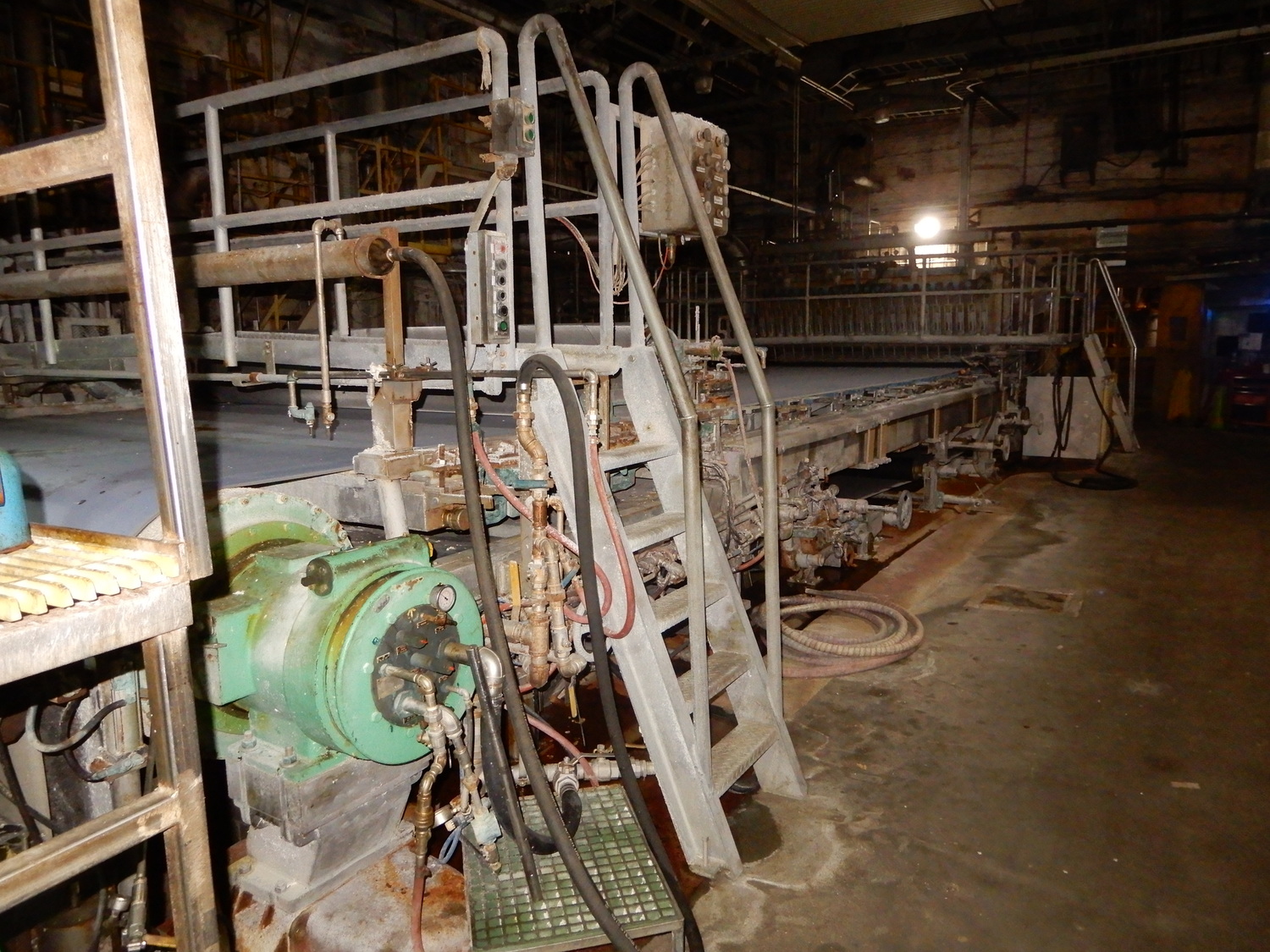

Mec-Fab Cantilevered Fourdrinier Section MFG 1993
(10) Suction Boxes; Foils; Wire Tension System; Wire Showers and Trim Showers
LG Industries Suction Couch Roll 29.7″ Diameter
Dual Nip 3-Roll Combination Press Section

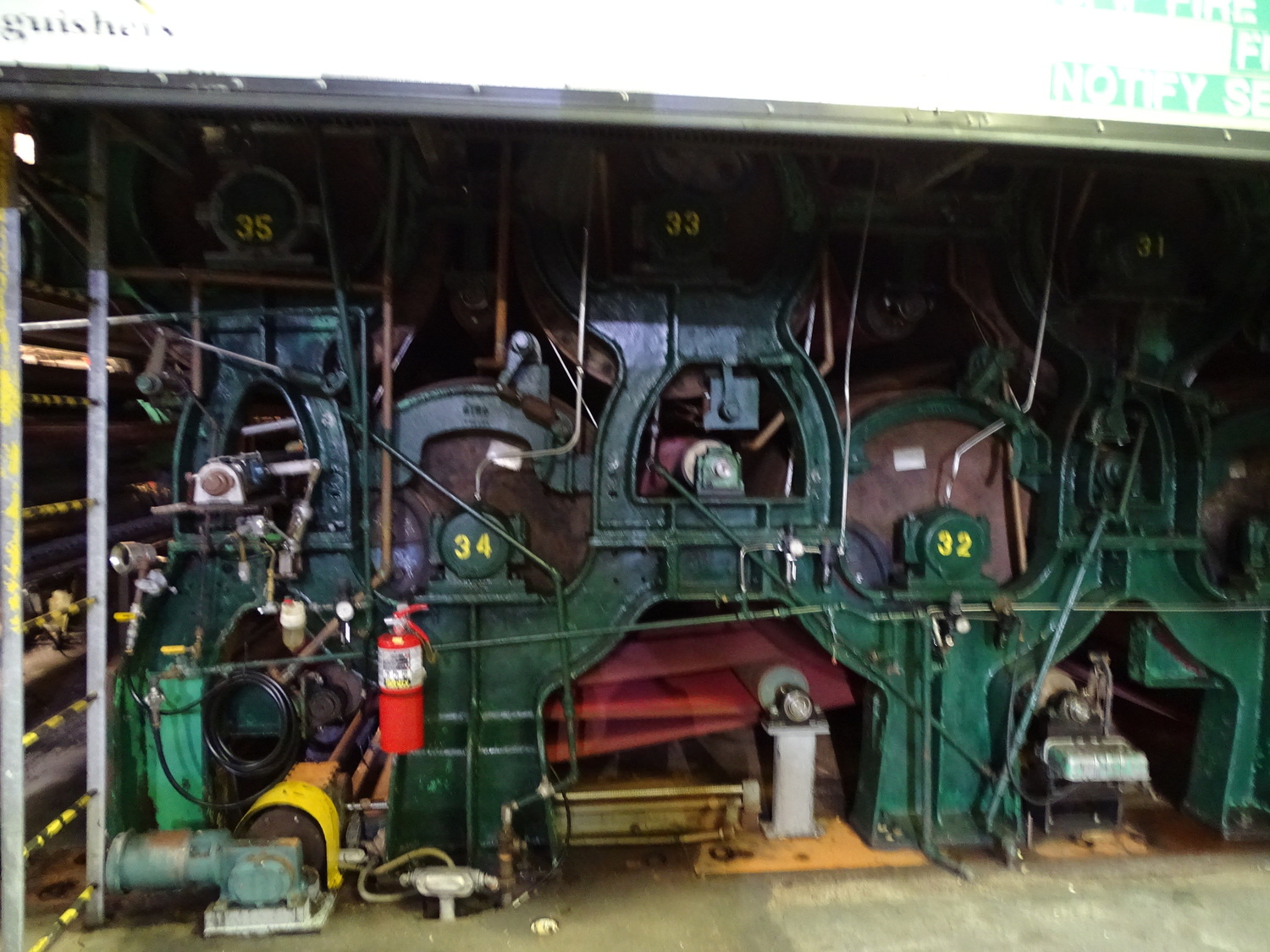

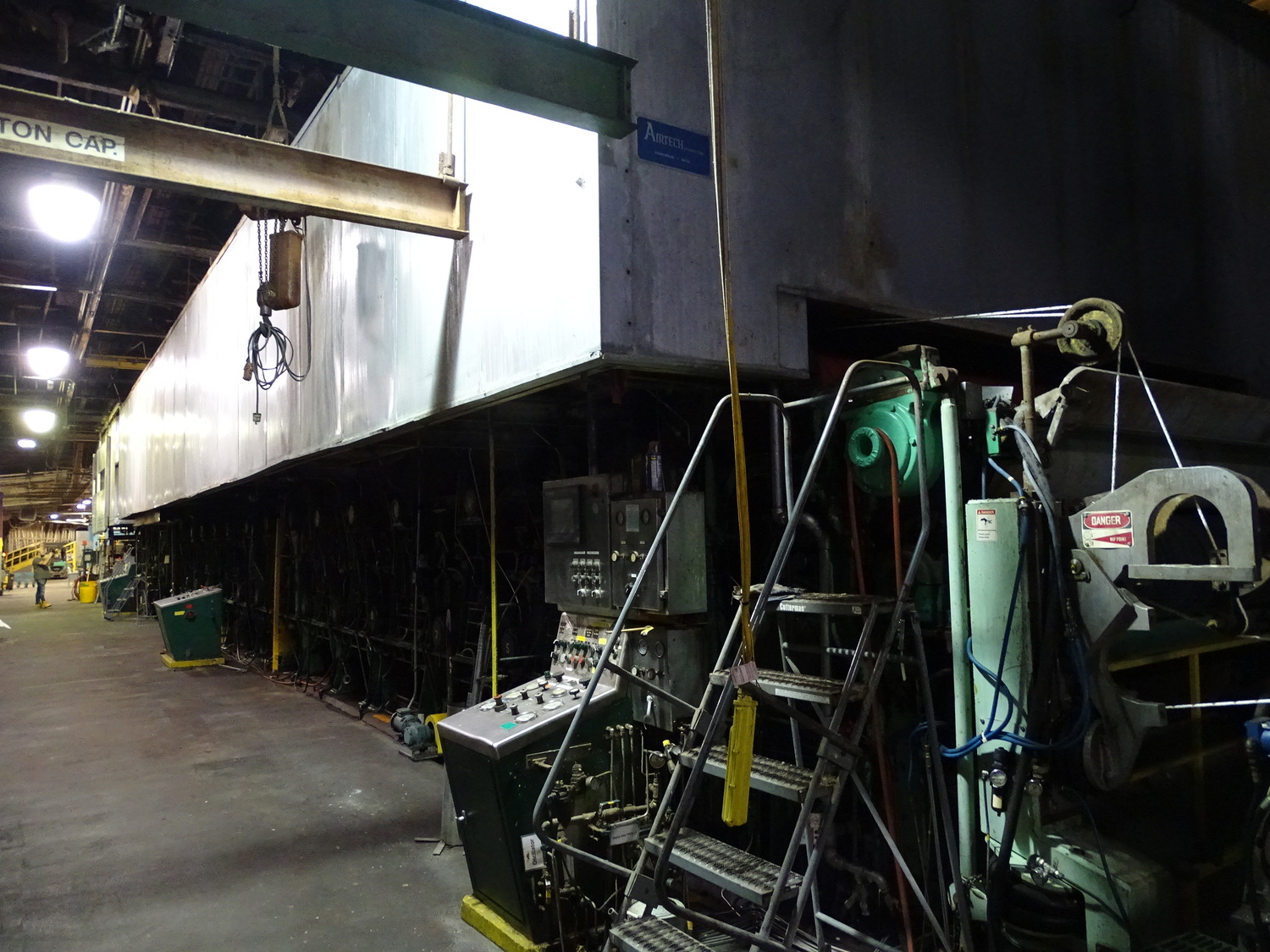

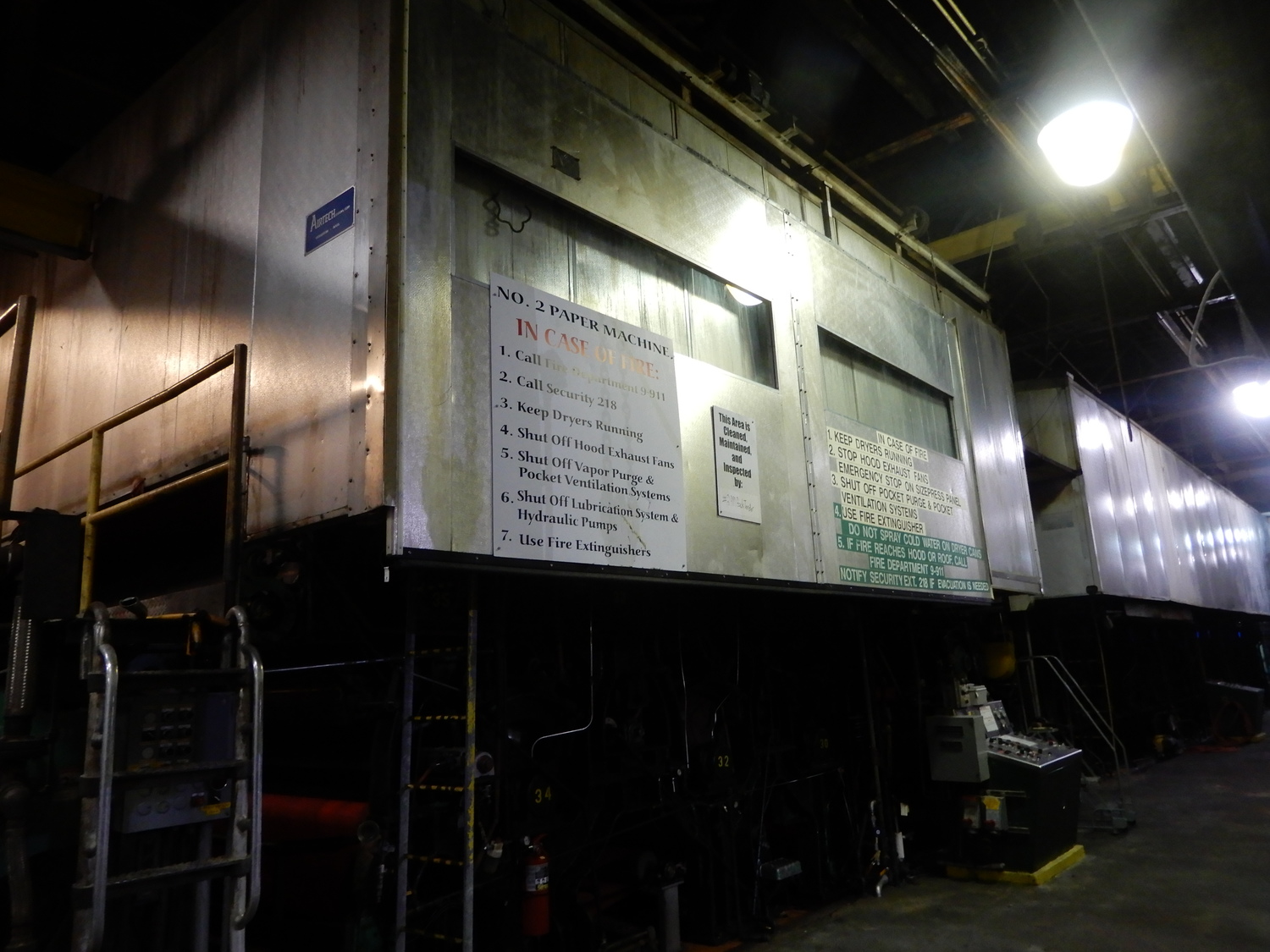

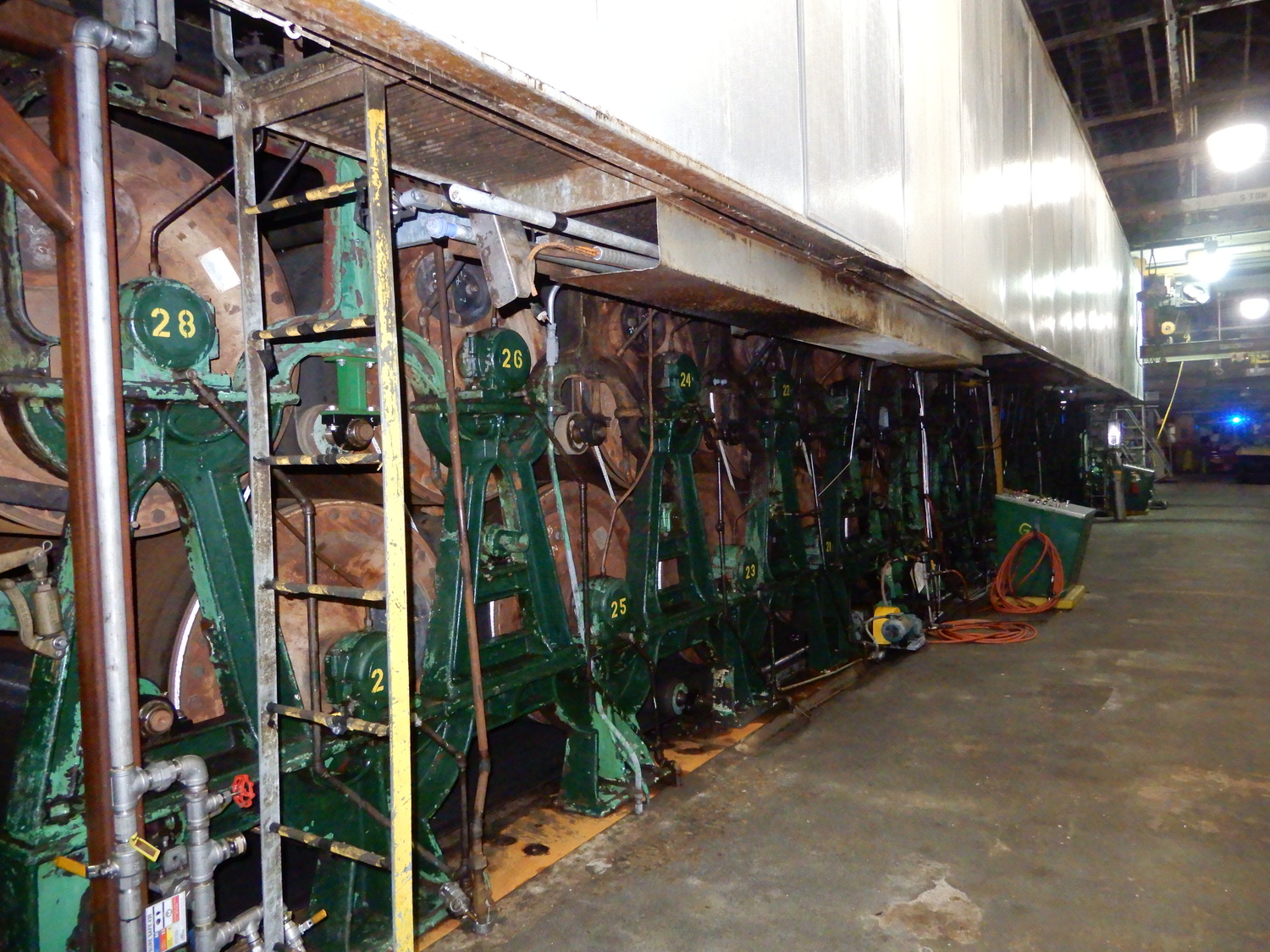

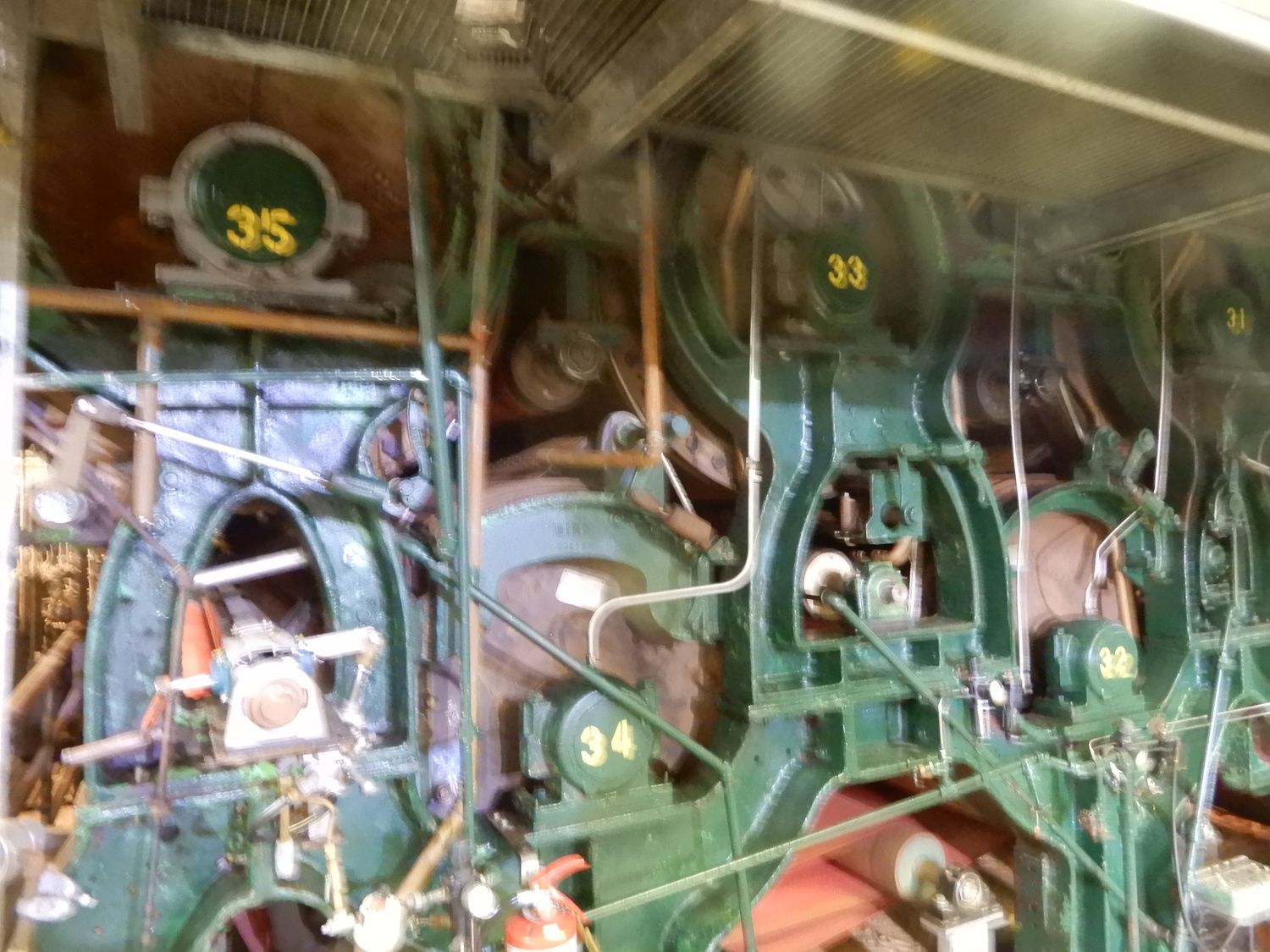

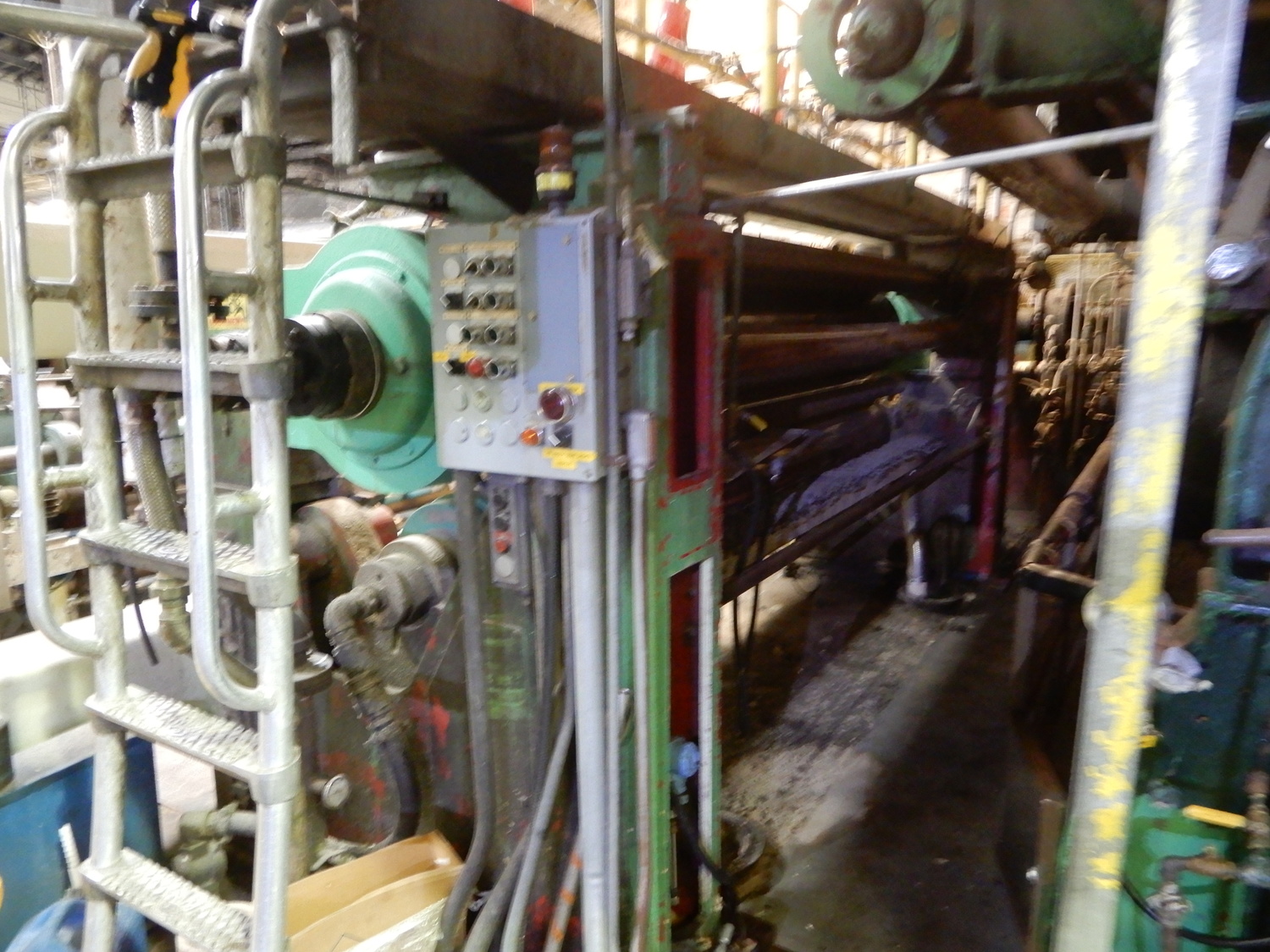

(28) Dryer Section 132″ Face x 48″ Diameter Rated 150 PSI

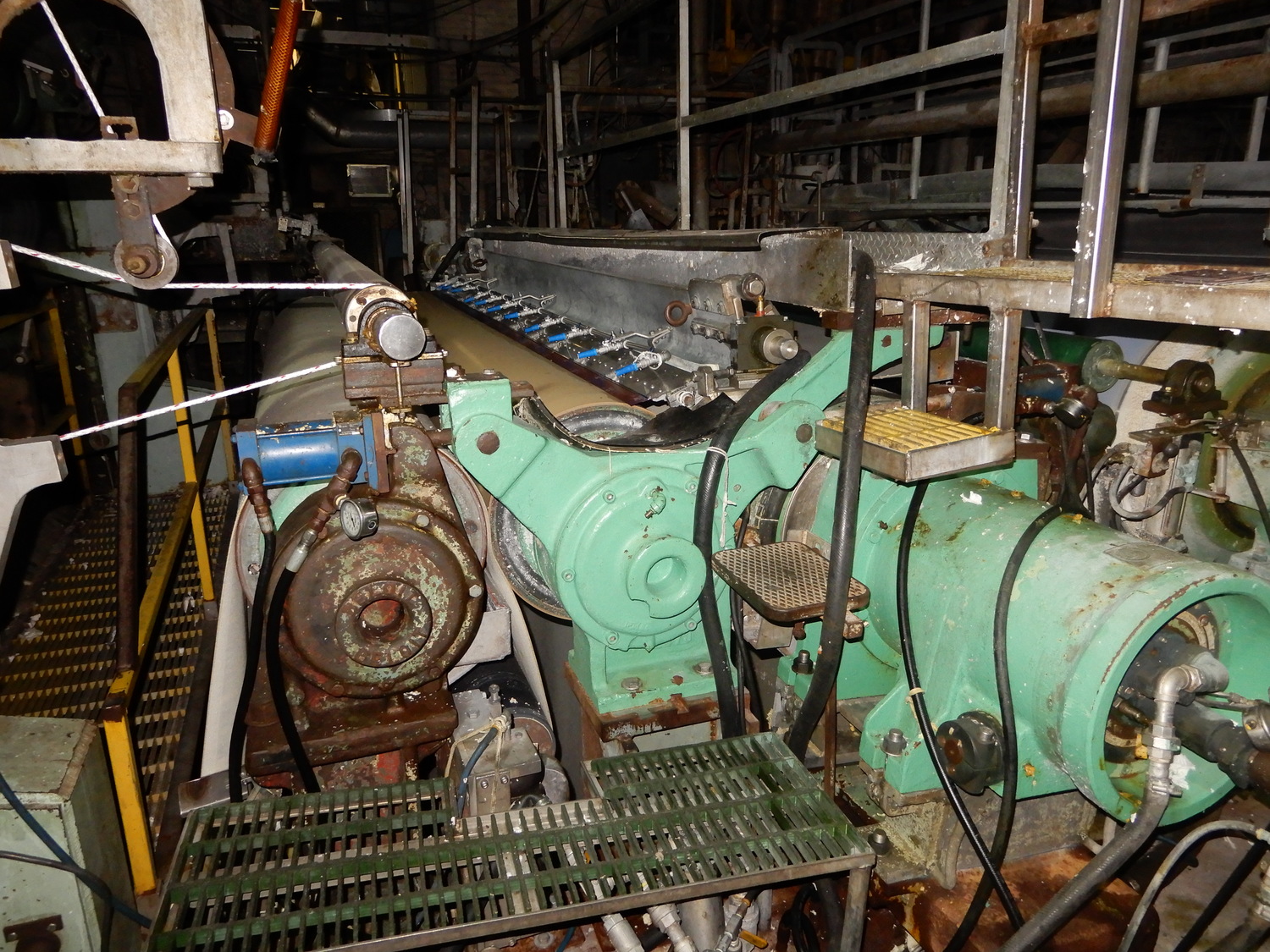

Beloit 2-Roll Vertical Size Press

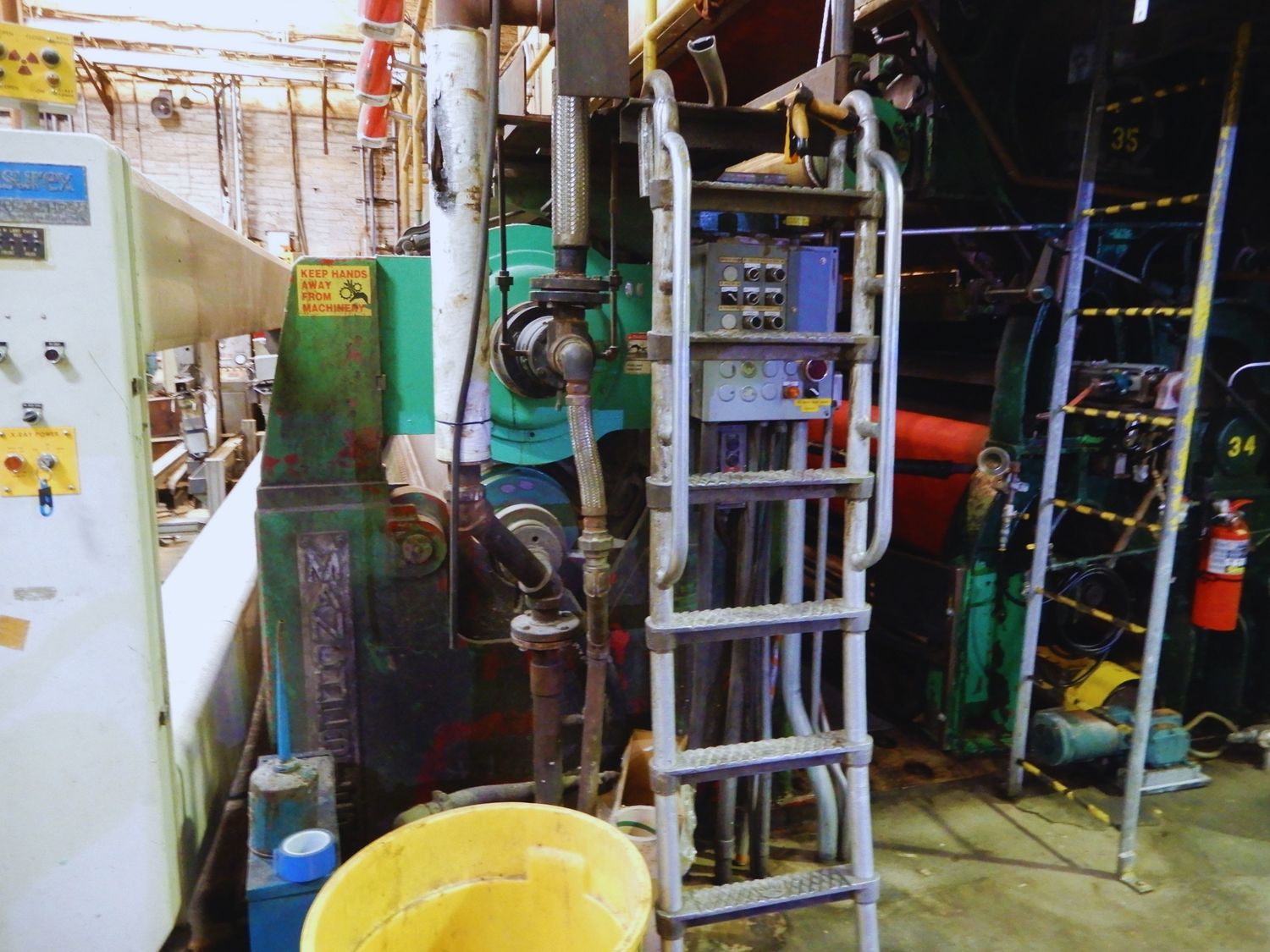

Manchester 2-Roll Calendar High PLI stack with spare rolls

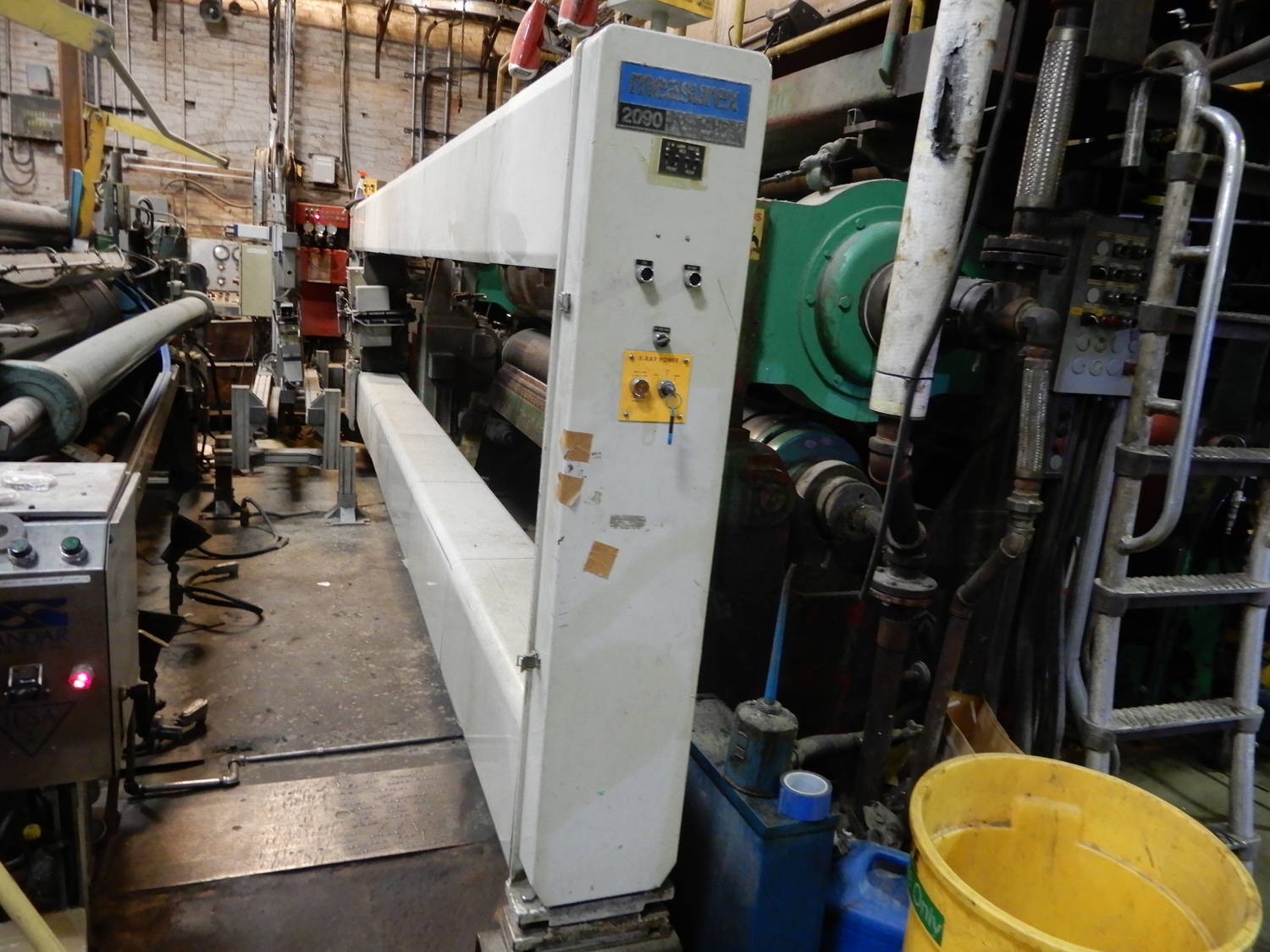

Measurex Model 2090 UltraTech Gauging System Scanner
Honeywell 4G High Speed Cameras

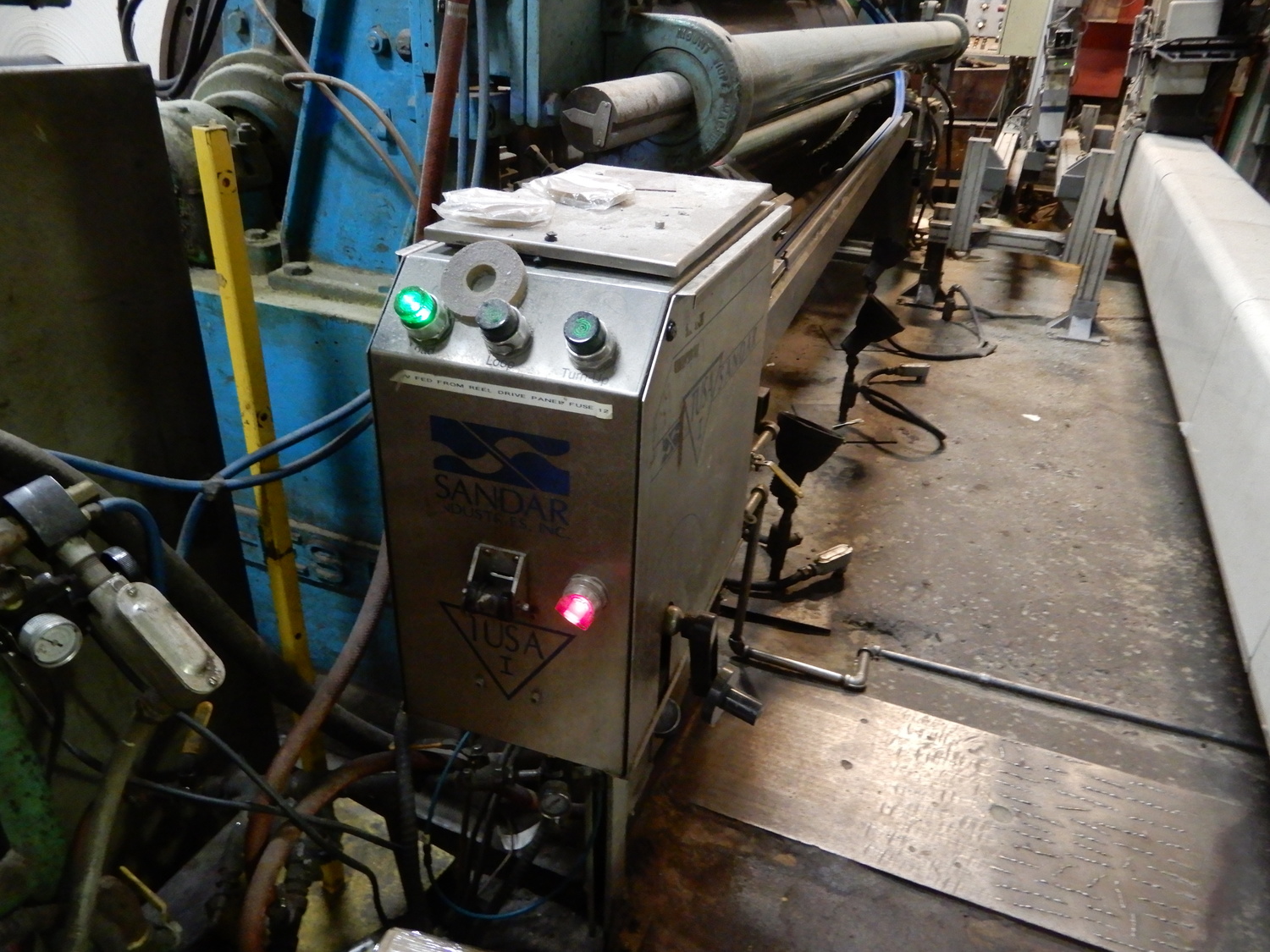

Sandar Industries Model TUSAI-E Turn-Up System

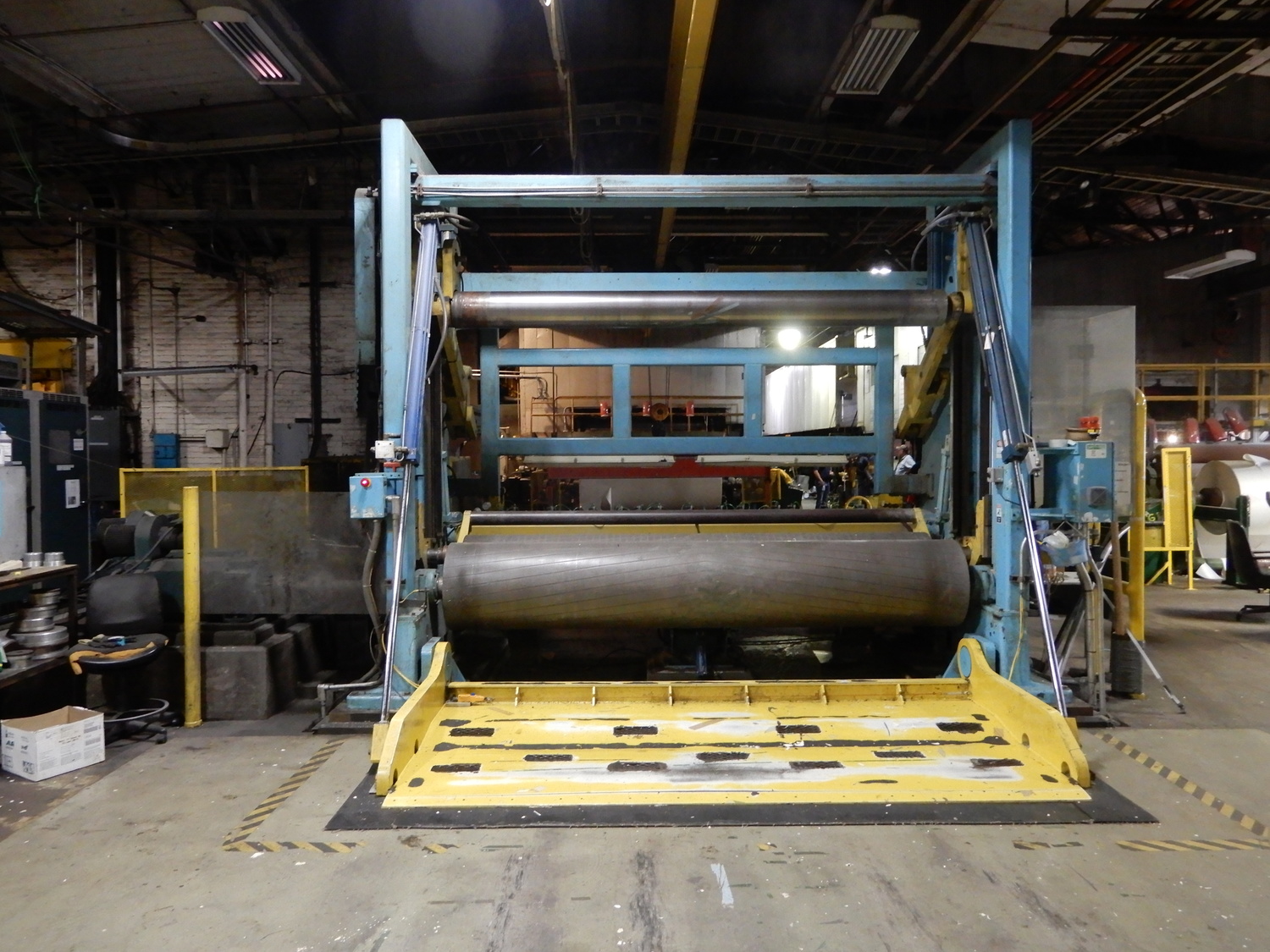

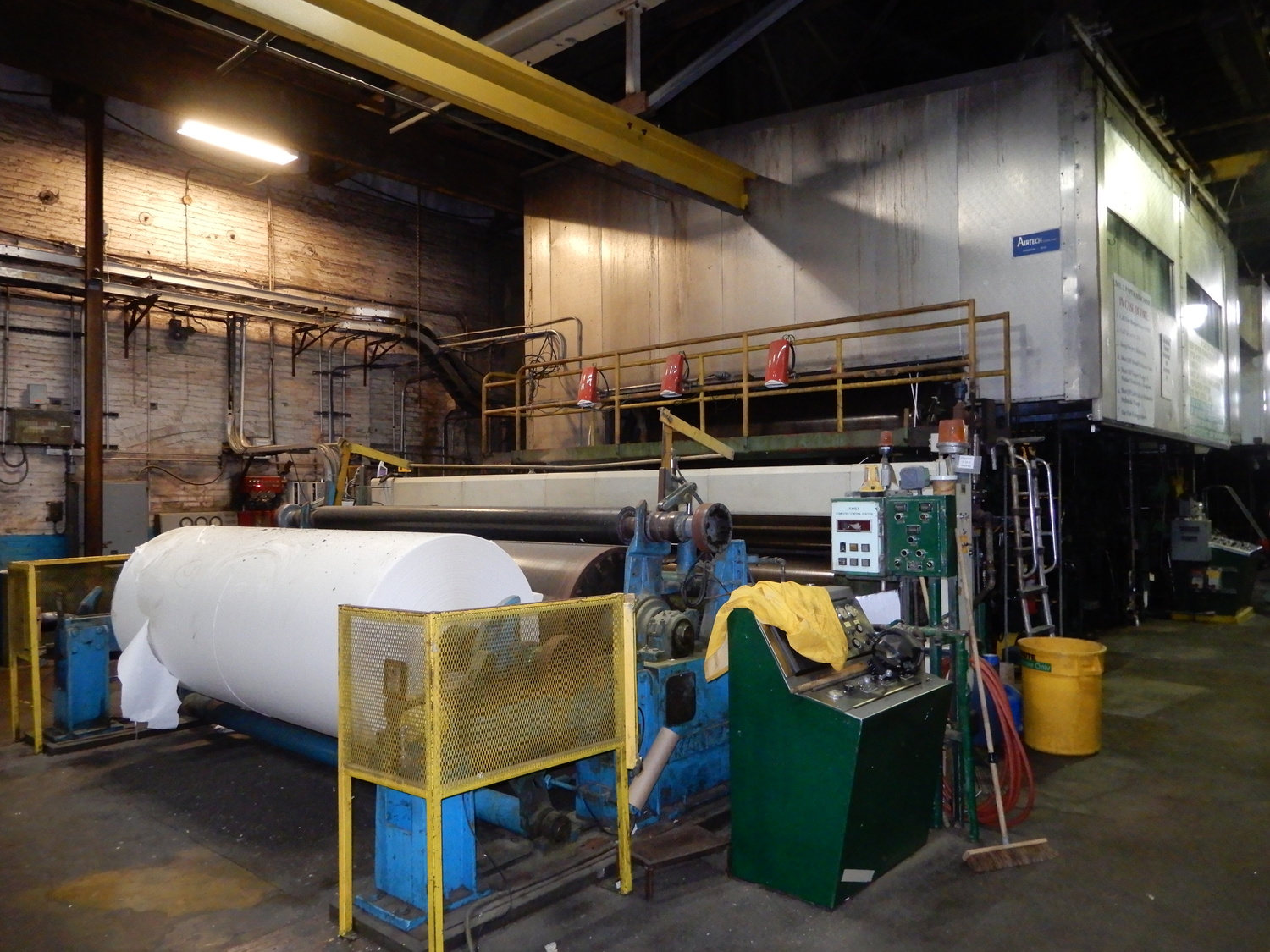

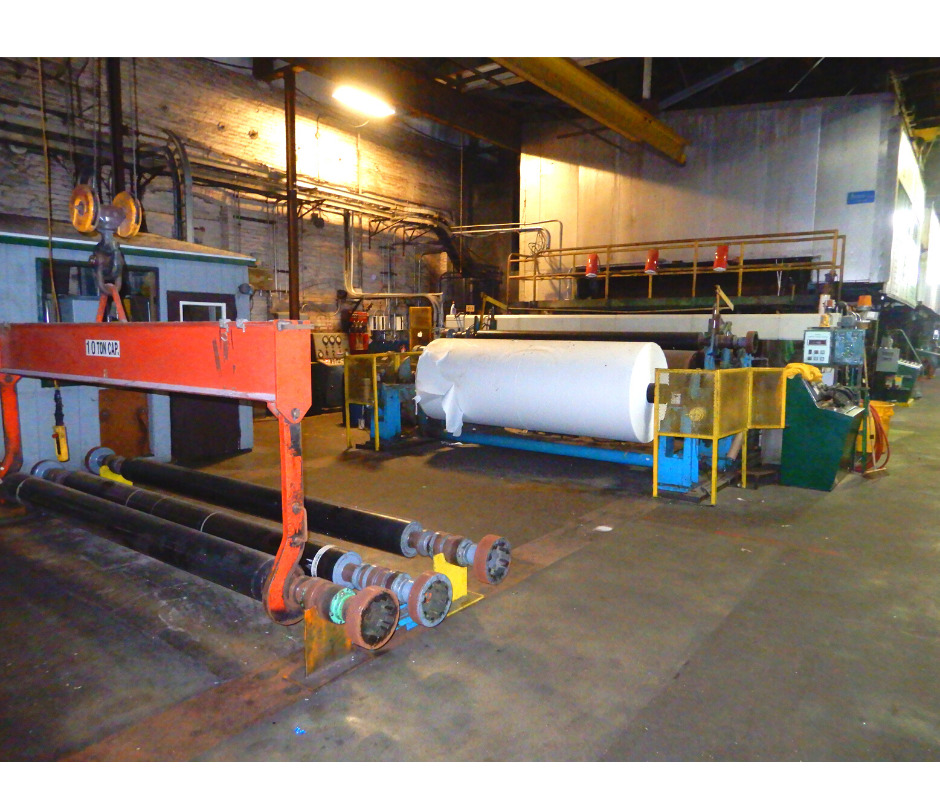

Manchester Horizontal Track Reel with primary and secondary arms

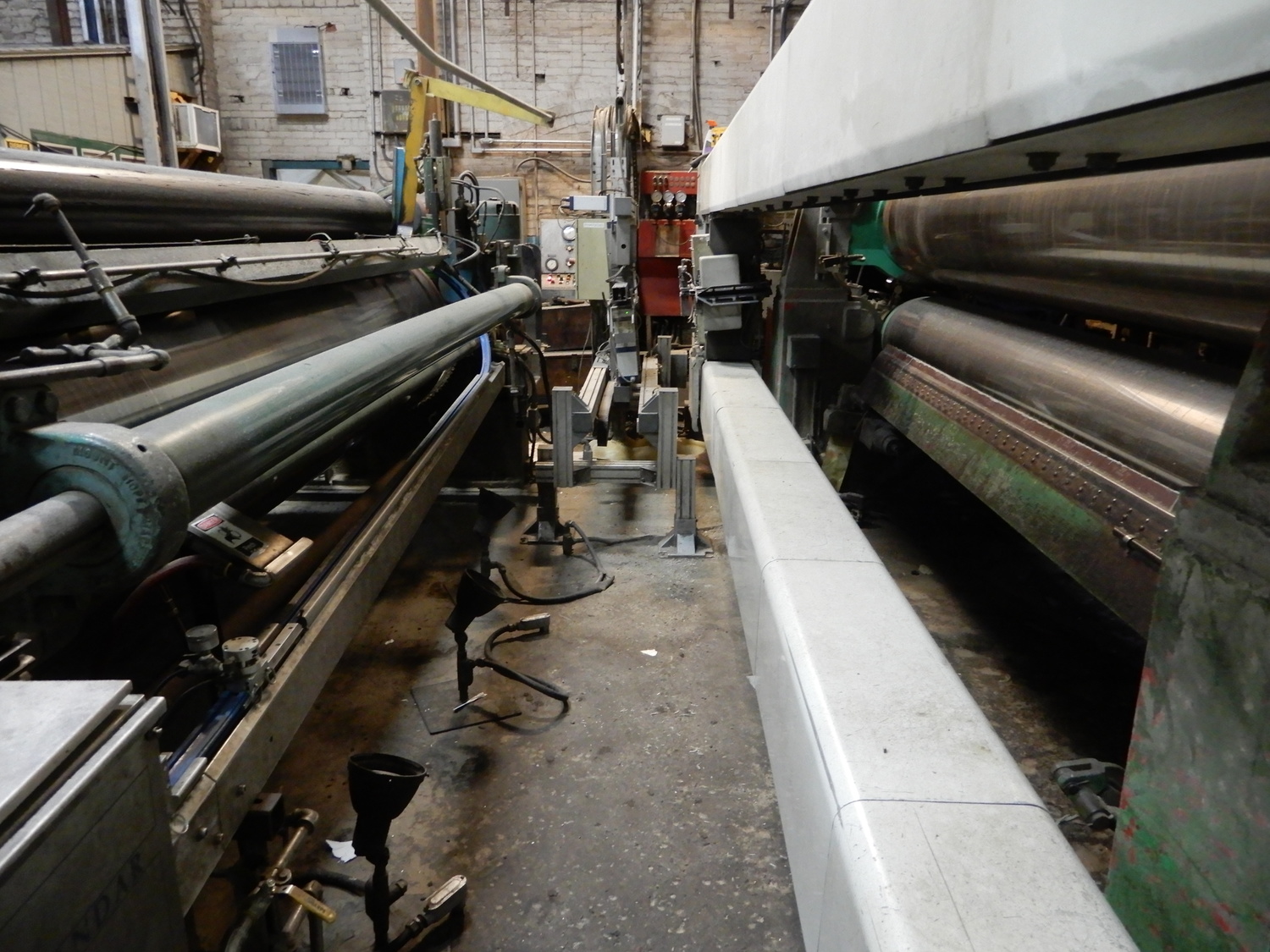

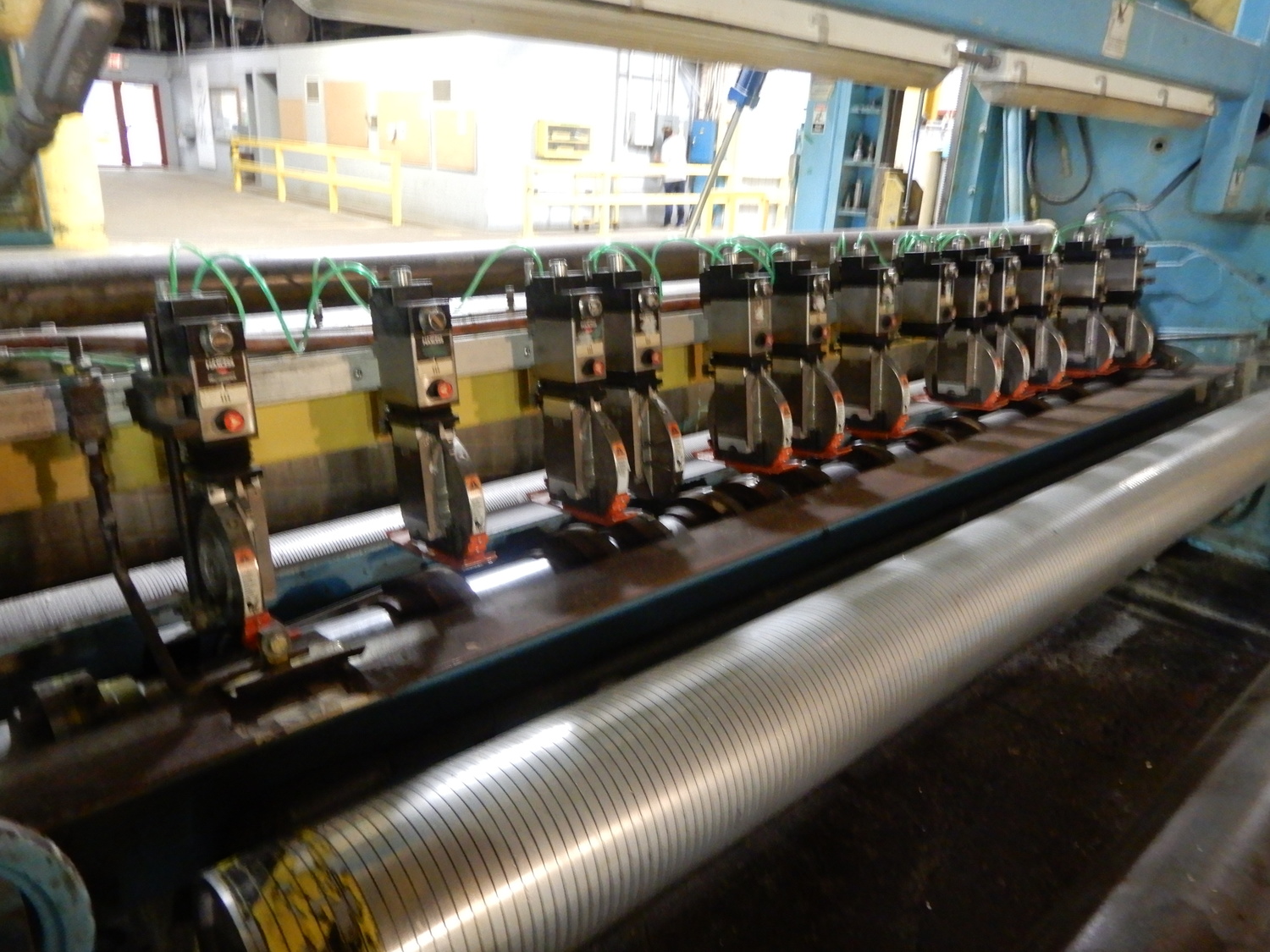

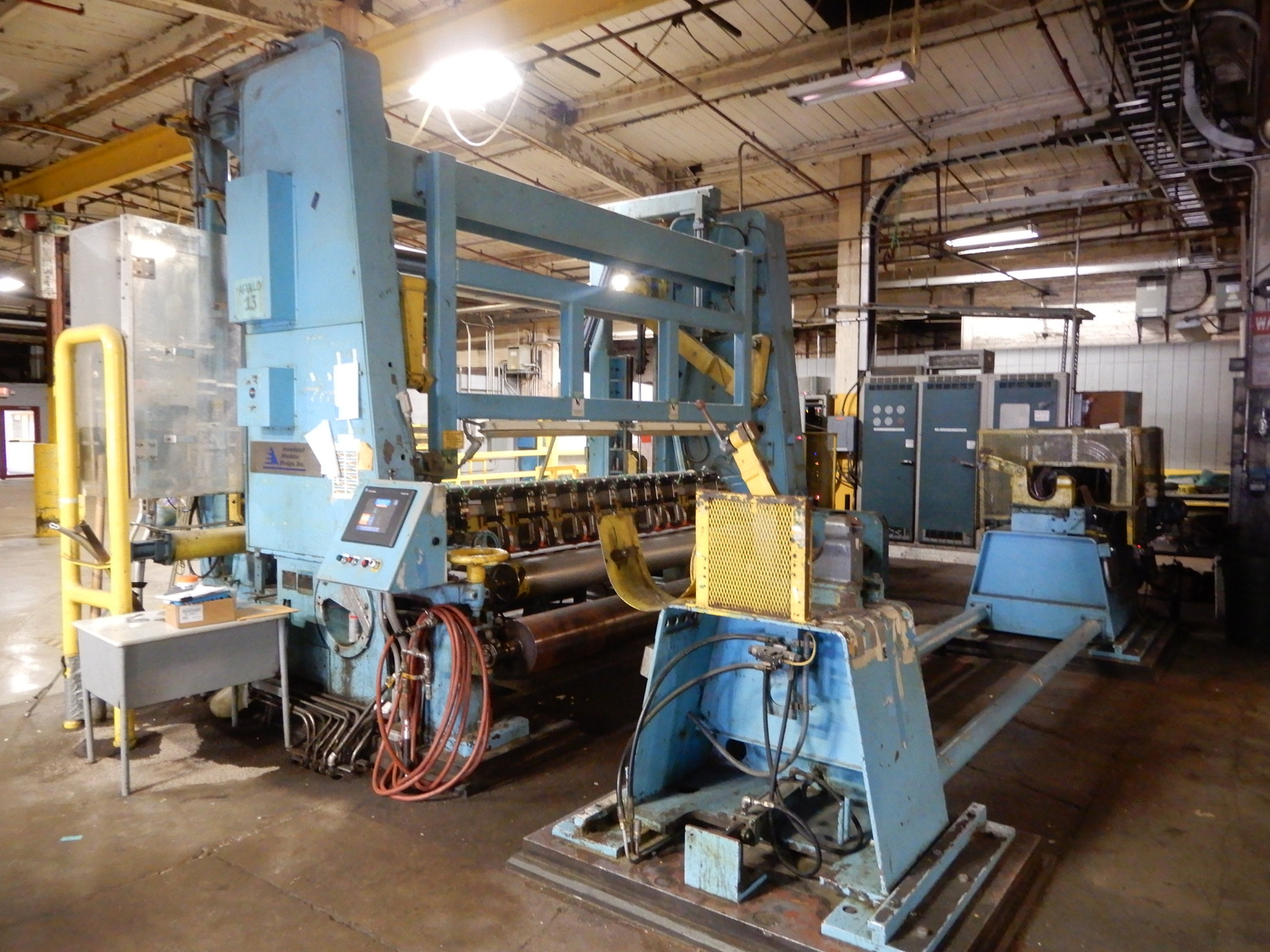

Associated Machine Design – Langston Speedmaster Slitter Rewinder 4000 FPM (Rebuilt 2002)
ALL Nash Vacuum pumps

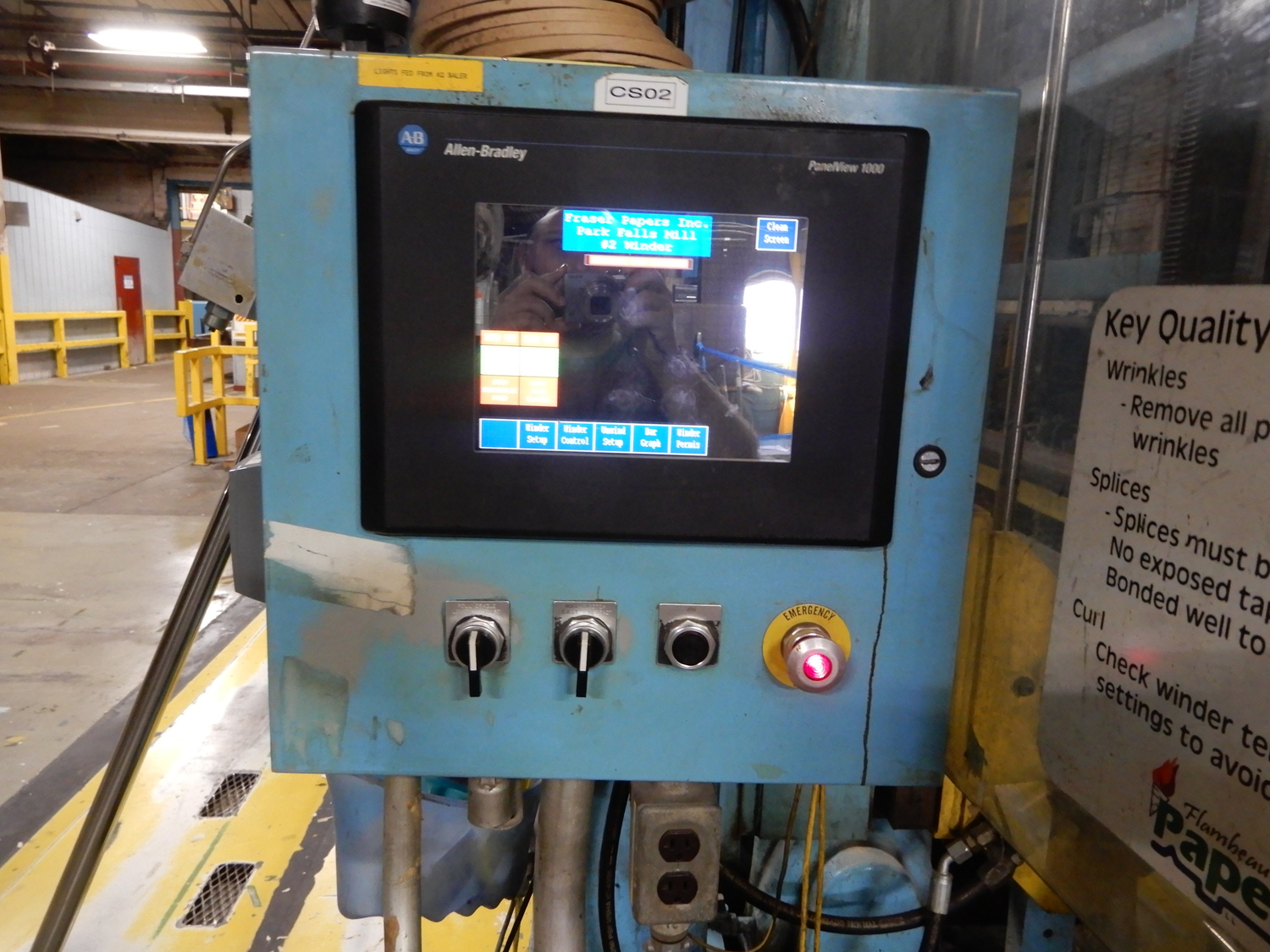

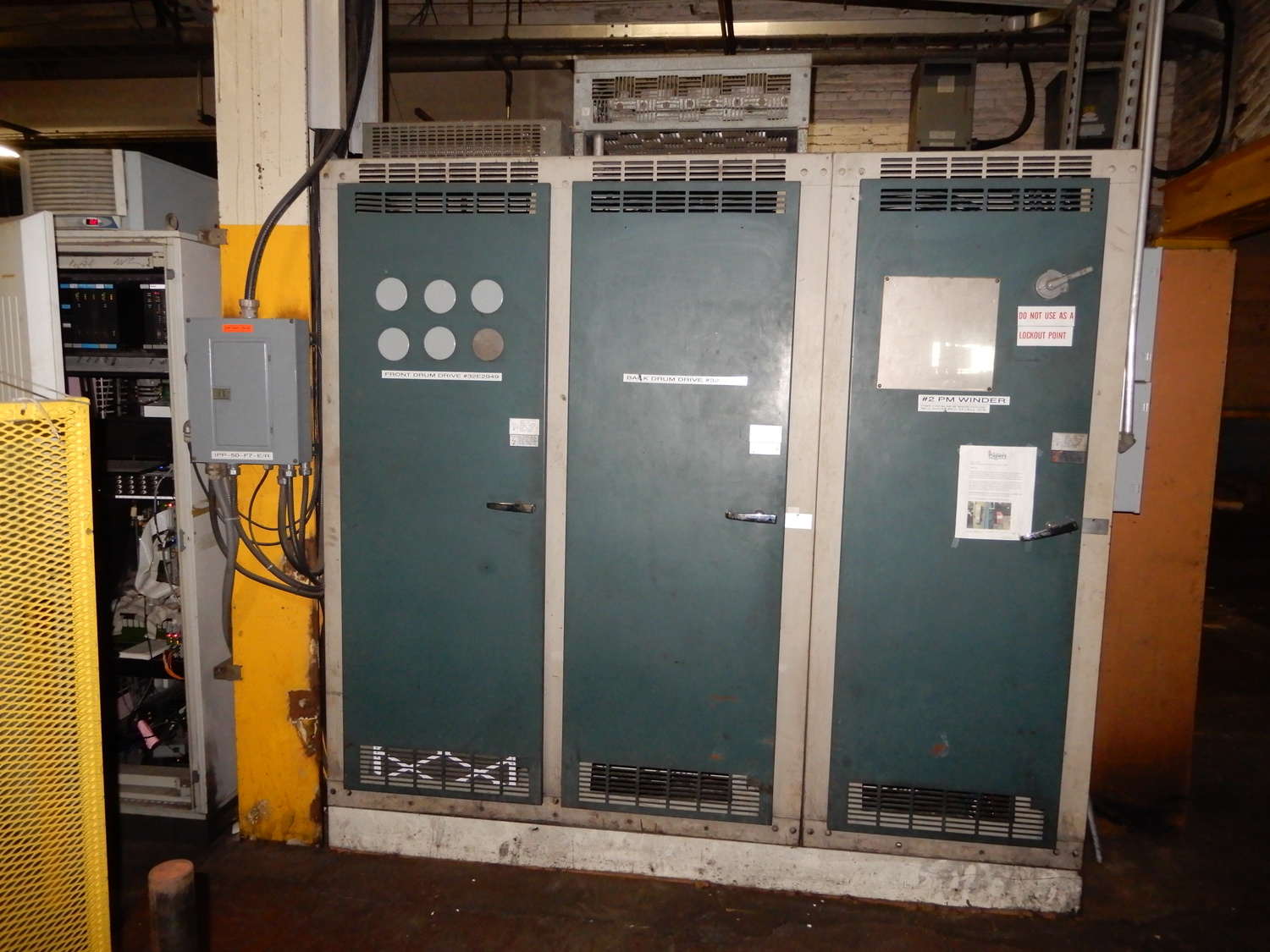

Allen Bradley Controls

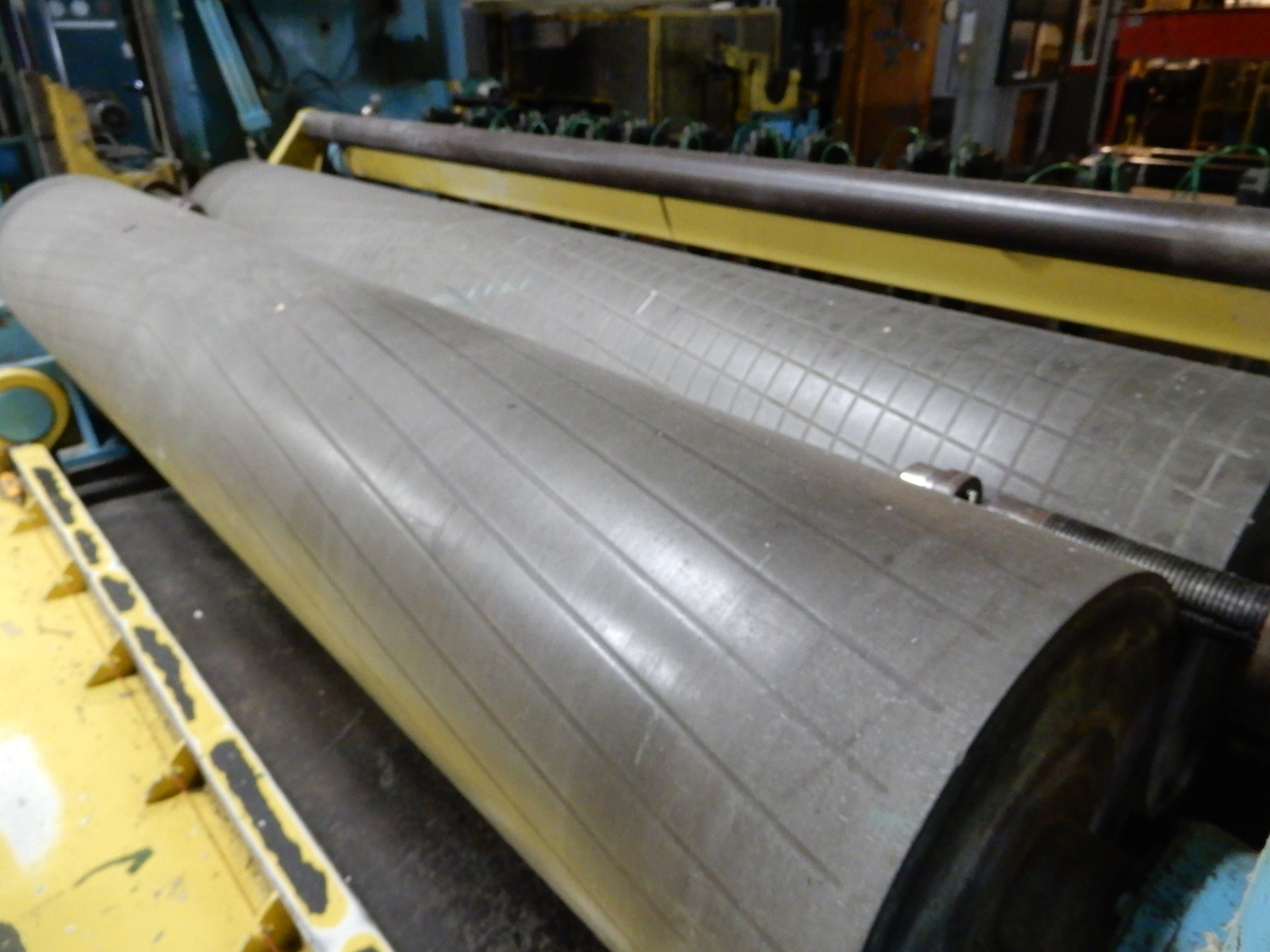

All Associated Spare rolls
Last ran 60-260 GSM
Complete Engineering and documentation available on site
Machine last ran March 2021
